The Ulex KT-332H (Showfou KT-332HDE) Pump 400V Without MSS is a durable submersible centrifugal pump suitable for shipping, fisheries, construction, and industrial dewatering. It has a hardened steel open impeller, stainless steel housing, and handles contaminated water with solids and acidity up to 40°C. Operating at 400V with 2.2 kW power, it pumps down to 55 mm and delivers flow rates up to 18,600 liters per hour at 10 meters head. This model does not include a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

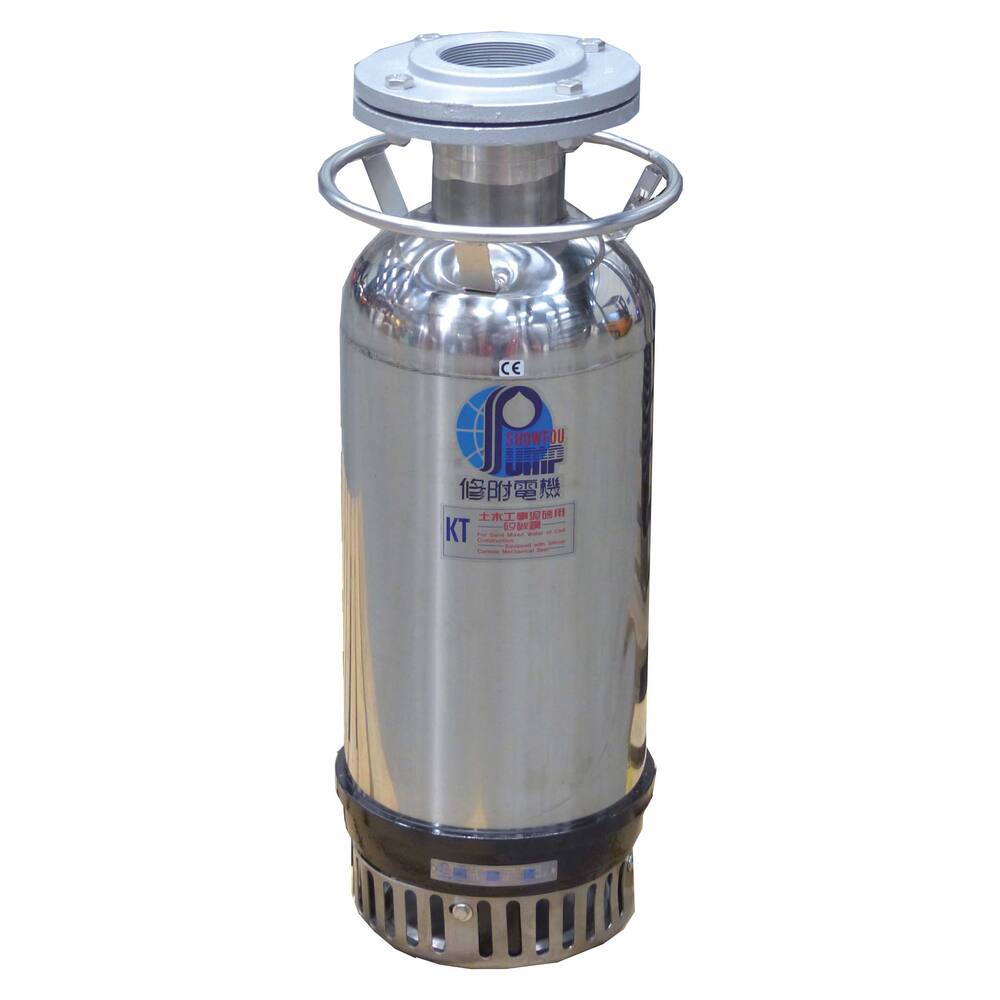

Ulex KT-332H (Showfou KT-332HDE) Pump 400V Without MSS
This durable cylinder pump is suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. Its availability in large capacities also supports vessel salvaging. It delivers professional quality at an economical price point.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates: 10m – 18,600 L/hour, 15m – 12,000 L/hour, 20m – 4,000 L/hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 570 mm
- Weight: 47.0 kg
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.332
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 22.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 27,600 L/hour
- Capacity at 5 meters: 24,000 L/hour
-
