ID
1317097
$ 4,815.11
1-2 weeks delivery time
-
+
The Ulex KT-732H (Showfou KT-732HNE) Pump 400V Without MSS is a strong submersible centrifugal pump designed for demanding environments such as shipping, fisheries, construction, and dewatering. It features a hardened steel open impeller, stainless steel housing, and handles contaminated water with solids and acidity up to 40°C. It pumps down to 105 mm, delivers flow rates up to 40,000 liters per hour at 10 meters, operates at 400V and 50 Hz with 5.5 kW power, and does not include a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

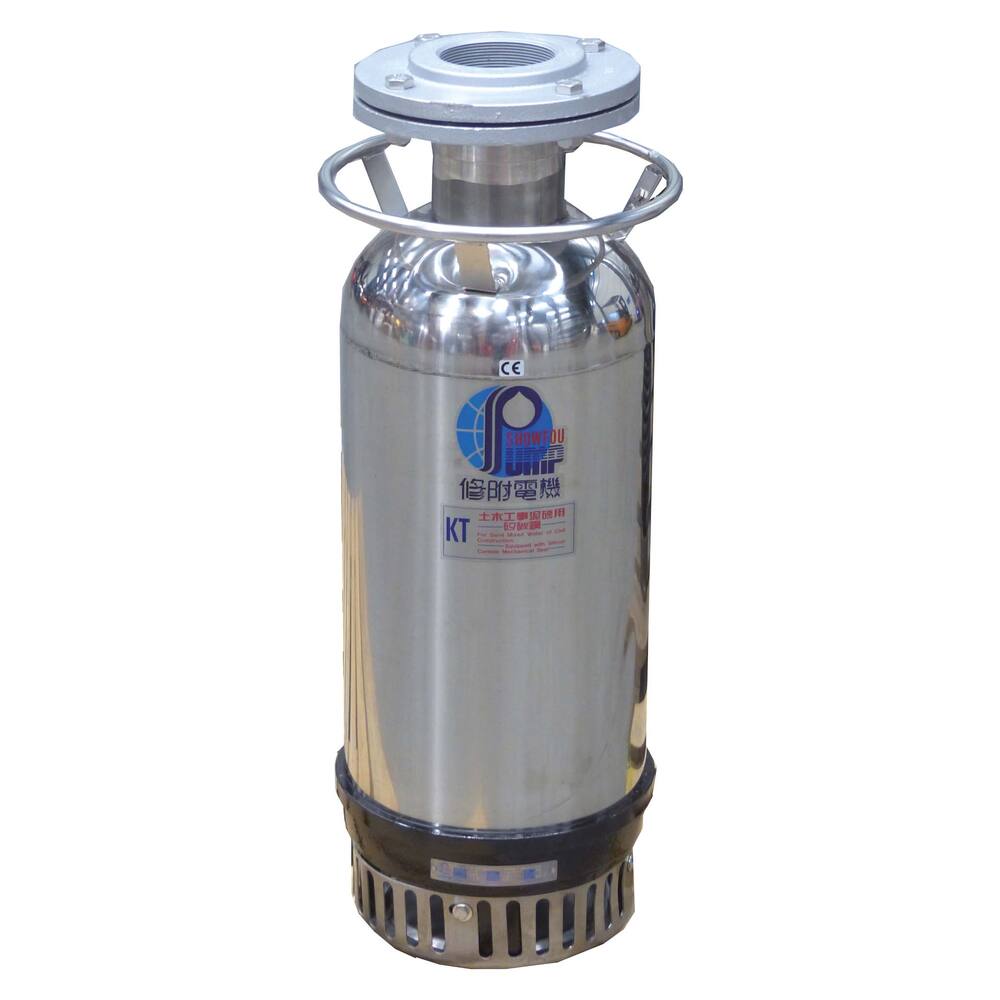

Ulex KT-732H (Showfou KT-732HNE) Pump 400V Without MSS
Designed for tough environments such as inland and seagoing shipping, fisheries, construction, industry, and dewatering, this robust cylinder pump is also available in large capacities ideal for salvaging vessels. It provides professional-grade performance at a competitive price but does not come with a guarantee without MSS.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates:
- 10 metres: 40,000 litres per hour
- 15 metres: 27,600 litres per hour
- 20 metres: 28,000 litres per hour
- 25 metres: 6,000 litres per hour
- Pumps down to: 105 mm
- Connection: 3" internal thread
- Dimensions: Diameter 272 mm, Height 720 mm
- Weight: 77.0 kg
- Amperage: 10.0 A
- Shaft power: 5.5 kW, 7.33 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.732
- Pipe diameter pressure: 3"
- Model: Without motor protection switch (No guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 15 mm
- Max discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 54,000 L/hour
- Capacity at 5 meter: 51,000 L/hour
-
