The Ulex KT-532H (Showfou KT-532H) Pump 60HZ 400V With MSS offers the same robust construction and performance as the non-MSS version, including handling contaminated water with solids and acidity, pumping down to 55 mm, and flow rates up to 25,500 liters per hour at 10 meters. Operating at 400V and 60 Hz with 3.7 kW power, this model includes a motor protection switch and comes with a guarantee.
- Description
- Ask a Question
-

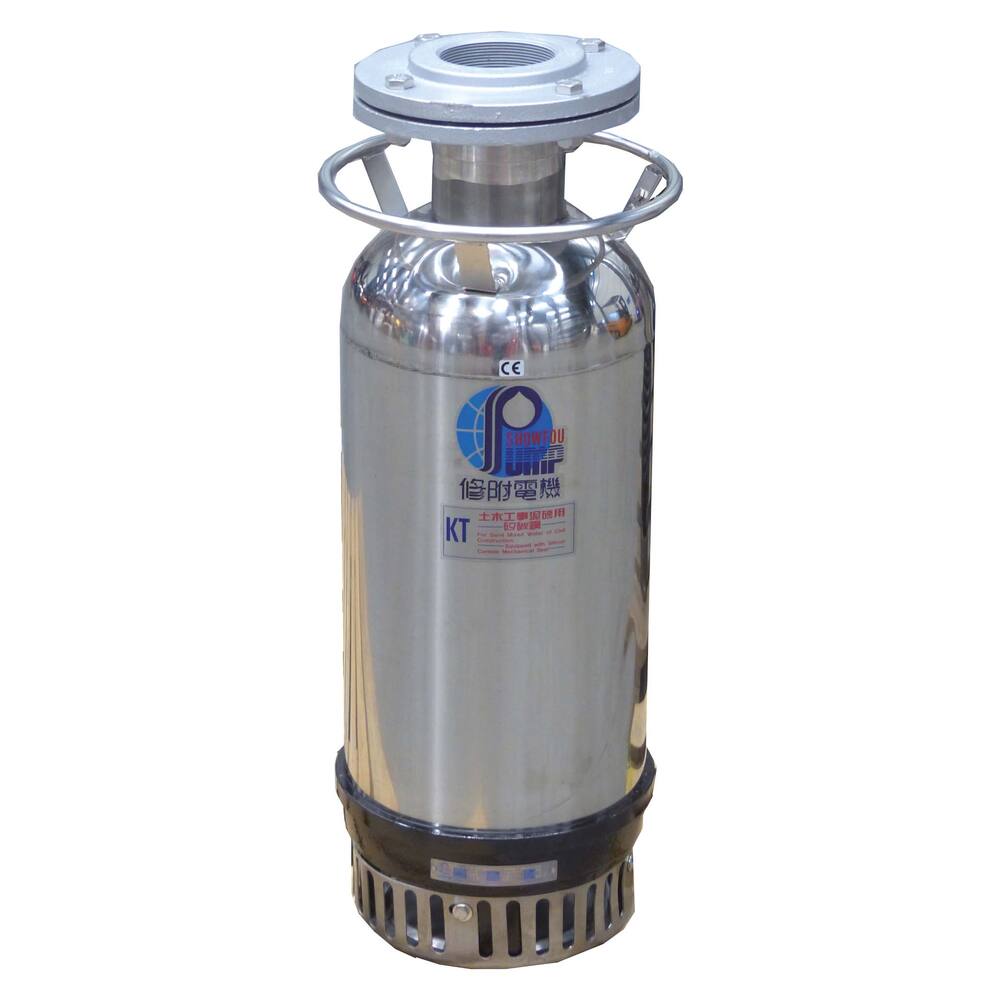

Ulex KT-532H (Showfou KT-532H) Pump 60HZ 400V With MSS
This robust cylinder pump is engineered for a wide range of demanding applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It is also available in larger capacities, making it suitable for salvaging vessels. This pump offers professional quality at an affordable price.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: Only with MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates:
- 10 metres: 25,500 litres per hour
- 15 metres: 18,000 litres per hour
- 20 metres: 11,000 litres per hour
- 25 metres: 3,000 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 232 mm, Height 605 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.535
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Max discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 60 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 36,000 L/hour
- Capacity at 5 meter: 33,000 L/hour
-
