ID
1317089
$ 2,225.94
1-2 weeks delivery time
-
+
The Ulex KT-232N (Showfou KT-232DE) Pump 400V Without MSS is a durable submersible centrifugal pump designed for inland and seagoing shipping, fisheries, construction, and industrial dewatering. It features a hardened steel open impeller, stainless steel housing, and handles contaminated water with solids and acidity up to 40°C. Operating at 400V with 1.5 kW power, it delivers flow rates up to 17,400 liters per hour at 10 meters head and pumps down to 55 mm. This model does not include a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

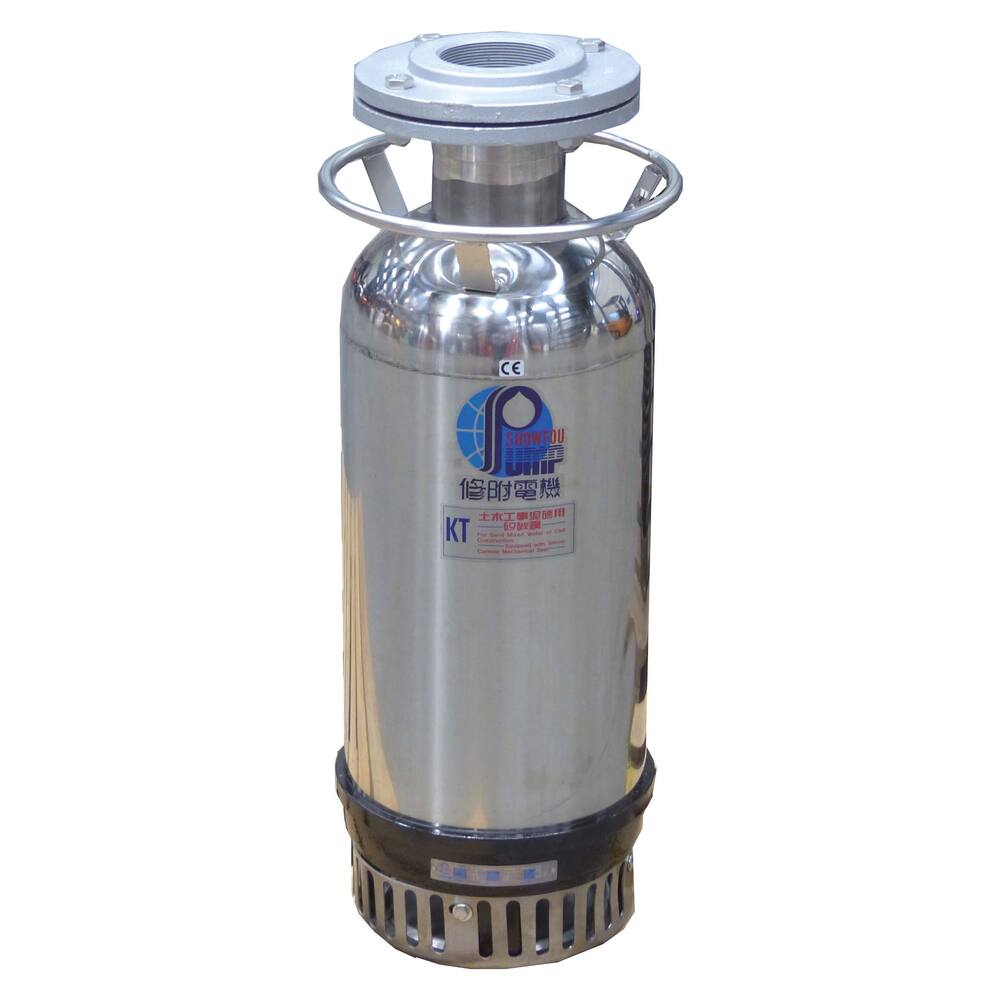

Ulex KT-232N (Showfou KT-232DE) Pump 400V Without MSS
Designed for inland and seagoing shipping, fisheries, construction, and industrial dewatering, this durable cylinder pump offers professional quality and is available in large capacities suitable for salvage work. It runs on 400V power without a motor protection switch, so no guarantee is provided.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Liquids handled: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates:
- 10 metres: 17,400 litres per hour
- 15 metres: 10,500 litres per hour
- 20 metres: 2,400 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 550 mm
- Weight: 37.0 kg
- Electrical: 400 V, 3.4 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.232
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 21.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 27,600 L/hour
- Capacity at 5 meters: 23,400 L/hour
-
