ID
1317093
$ 3,170.33
1-2 weeks delivery time
-
+
The Ulex KT-532H (Showfou KT-532HDE) Pump 50HZ 400V Without MSS is a robust submersible centrifugal pump designed for demanding tasks in shipping, fisheries, construction, and industry. It features a hardened steel open impeller, stainless steel housing, and handles contaminated water with solids and acidity up to 40°C. Operating at 400V with 3.7 kW power, it pumps down to 55 mm and delivers flow rates up to 25,500 liters per hour at 10 meters head. This model lacks a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

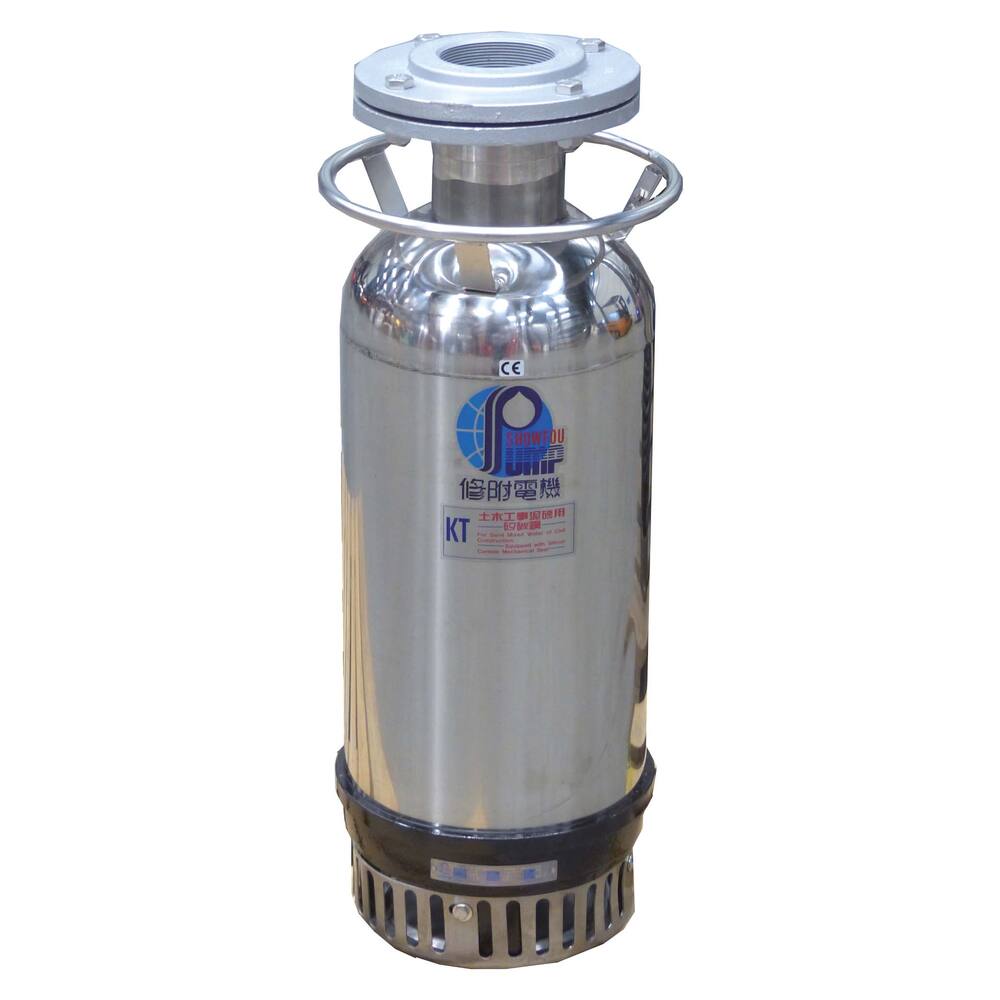

Ulex KT-532H (Showfou KT-532HDE) Pump 50HZ 400V Without MSS
This robust cylinder pump is designed for demanding applications such as inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It is also available in larger capacities for salvaging vessels, combining professional quality with reasonable pricing.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates by submersion depth:
- 10 metres: 25,500 litres per hour
- 15 metres: 18,000 litres per hour
- 20 metres: 11,000 litres per hour
- 25 metres: 3,000 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 232 mm, height 605 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.532
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 36,000 L/hour
- Capacity at 5 meters: 33,000 L/hour
-
