ID
1317095
$ 3,170.33
1-2 weeks delivery time
-
+
The Ulex KT-532H (Showfou KT-532H) Pump 60HZ 400V Without MSS features a durable design suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It handles contaminated water with solids and acidity up to 40°C, pumps down to 55 mm, and delivers flow rates up to 25,500 liters per hour at 10 meters depth. Operating at 400V and 60 Hz with 3.7 kW power, this model lacks a motor protection switch and therefore comes without a guarantee.
- Description
- Ask a Question
-

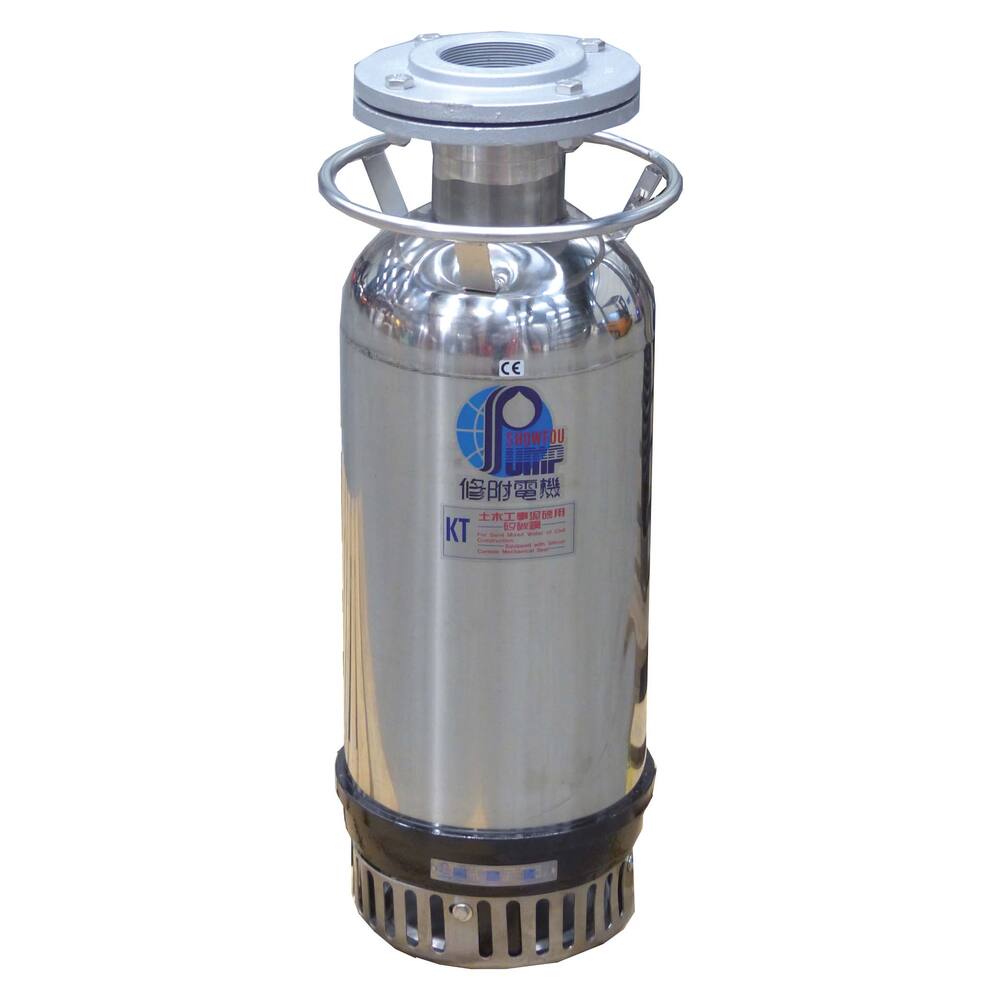

Ulex KT-532H (Showfou KT-532H) Pump 60HZ 400V Without MSS
Equipped with the same durable structure and materials, this 60Hz variant is suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering, offered at a professional quality level without a guarantee due to the absence of MSS. Large capacity options make it suitable for salvaging vessels.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates by submersion depth:
- 10 metres: 25,500 litres per hour
- 15 metres: 18,000 litres per hour
- 20 metres: 11,000 litres per hour
- 25 metres: 3,000 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 232 mm, height 605 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.534
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 60 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 36,000 L/hour
- Capacity at 5 meters: 33,000 L/hour
-
