ID
1317098
$ 5,269.61
1-2 weeks delivery time
-
+
The Ulex KT-732H (Showfou KT-732HNE) Pump 400V With MSS shares the same specifications and rugged design as the non-MSS version, including a hardened steel impeller and stainless steel housing, suitable for contaminated water with solids and acidity. It pumps down to 105 mm, delivers flow rates up to 40,000 liters per hour at 10 meters, operates at 400V and 50 Hz with 5.5 kW power, and includes a motor protection switch with a guarantee.
- Description
- Ask a Question
-

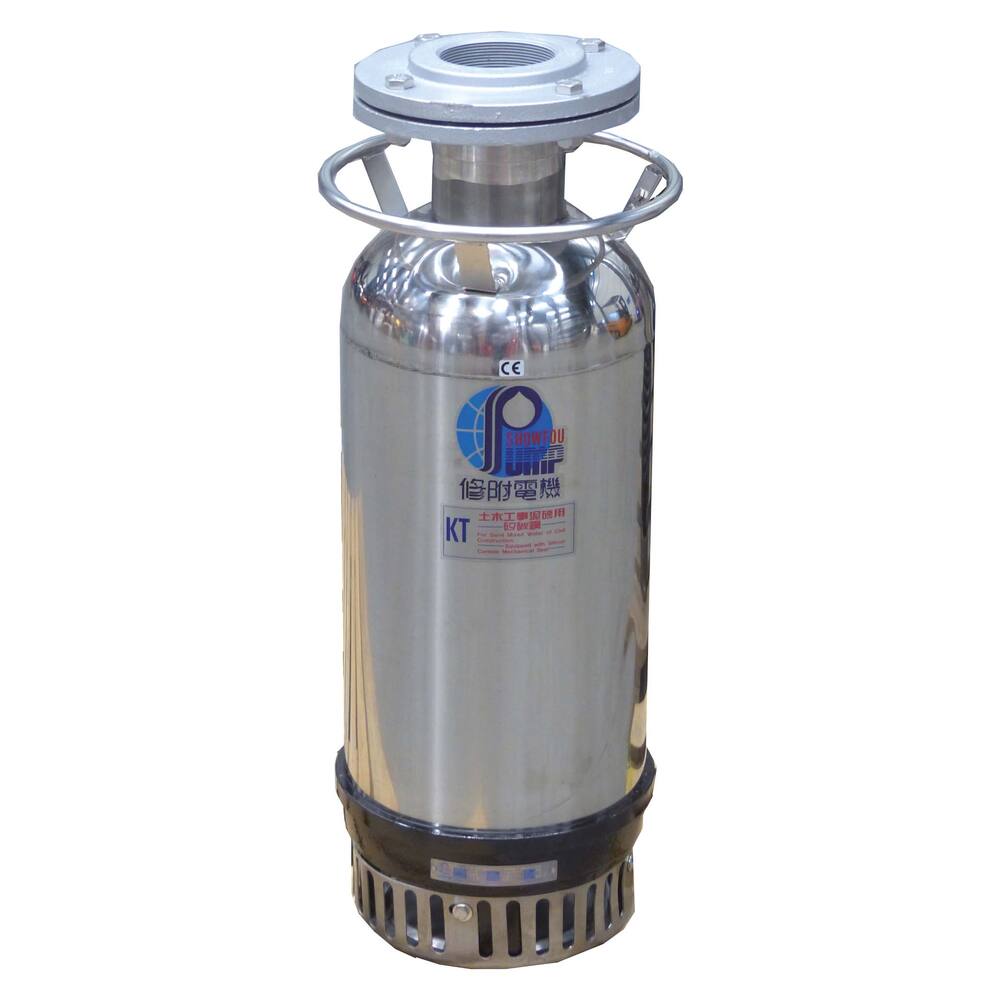

Ulex KT-732H (Showfou KT-732HNE) Pump 400V With MSS
This sturdy cylinder pump handles demanding tasks in inland and seagoing shipping, fisheries, construction, industry, and dewatering. It is also suitable for salvaging vessels with its large capacity. It is supplied with a motor protection switch and includes a guarantee.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: With MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates:
- 10 metres: 40,000 litres per hour
- 15 metres: 27,600 litres per hour
- 20 metres: 28,000 litres per hour
- 25 metres: 6,000 litres per hour
- Pumps down to: 105 mm
- Connection: 3" internal thread
- Dimensions: Diameter 272 mm, Height 720 mm
- Weight: 77.0 kg
- Amperage: 10.0 A
- Shaft power: 5.5 kW, 7.33 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.733
- Pipe diameter pressure: 3"
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 15 mm
- Max discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 54,000 L/hour
- Capacity at 5 meter: 51,000 L/hour
-
