ID
1317092
$ 2,956.12
1-2 weeks delivery time
-
+
The Ulex KT-332H (Showfou KT-332HDE) Pump 400V With MSS offers the same strong performance and specifications as the version without MSS, including a hardened steel open impeller and stainless steel housing, designed for demanding applications in shipping, fisheries, construction, and dewatering. It operates at 400V with 2.2 kW power, pumps down to 55 mm, and delivers flow rates up to 18,600 liters per hour at 10 meters head. This model includes a motor protection switch and comes with a guarantee.
- Description
- Ask a Question
-

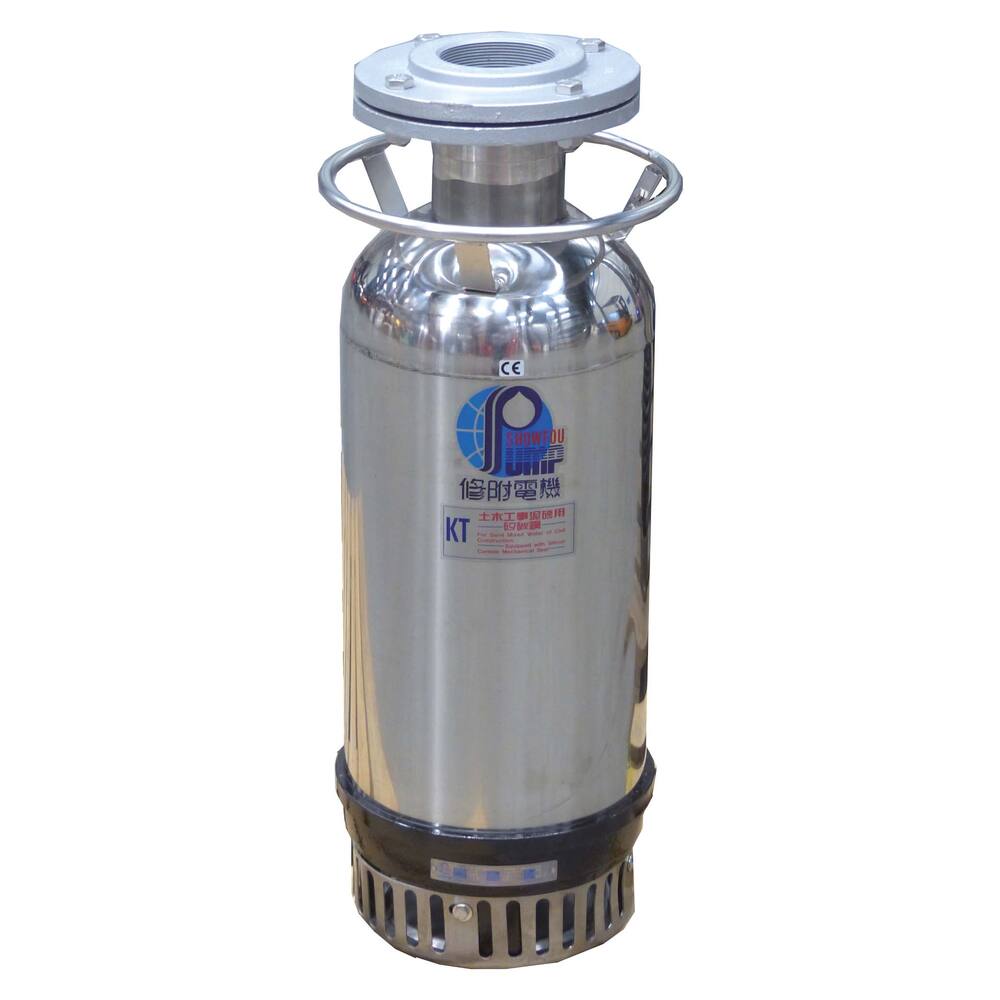

Ulex KT-332H (Showfou KT-332HDE) Pump 400V With MSS
This strong cylinder pump is ideal for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It comes in large capacities that are also suitable for salvaging vessels, offering professional-grade performance at a fair price.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates: 10m – 18,600 L/hour, 15m – 12,000 L/hour, 20m – 4,000 L/hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 570 mm
- Weight: 47.0 kg
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.333
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 22.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 27,600 L/hour
- Capacity at 5 meters: 24,000 L/hour
-
