The Ulex KT-532H (Showfou KT-532HDE) Pump 50HZ 400V With MSS shares the rugged design and application range of the version without MSS but includes a motor protection switch, providing a guarantee. It features a hardened steel open impeller, stainless steel housing, and handles contaminated water with solids and acidity up to 40°C. Operating at 400V with 3.7 kW power, it pumps down to 55 mm and delivers flow rates up to 25,500 liters per hour at 10 meters head.
- Description
- Ask a Question
-

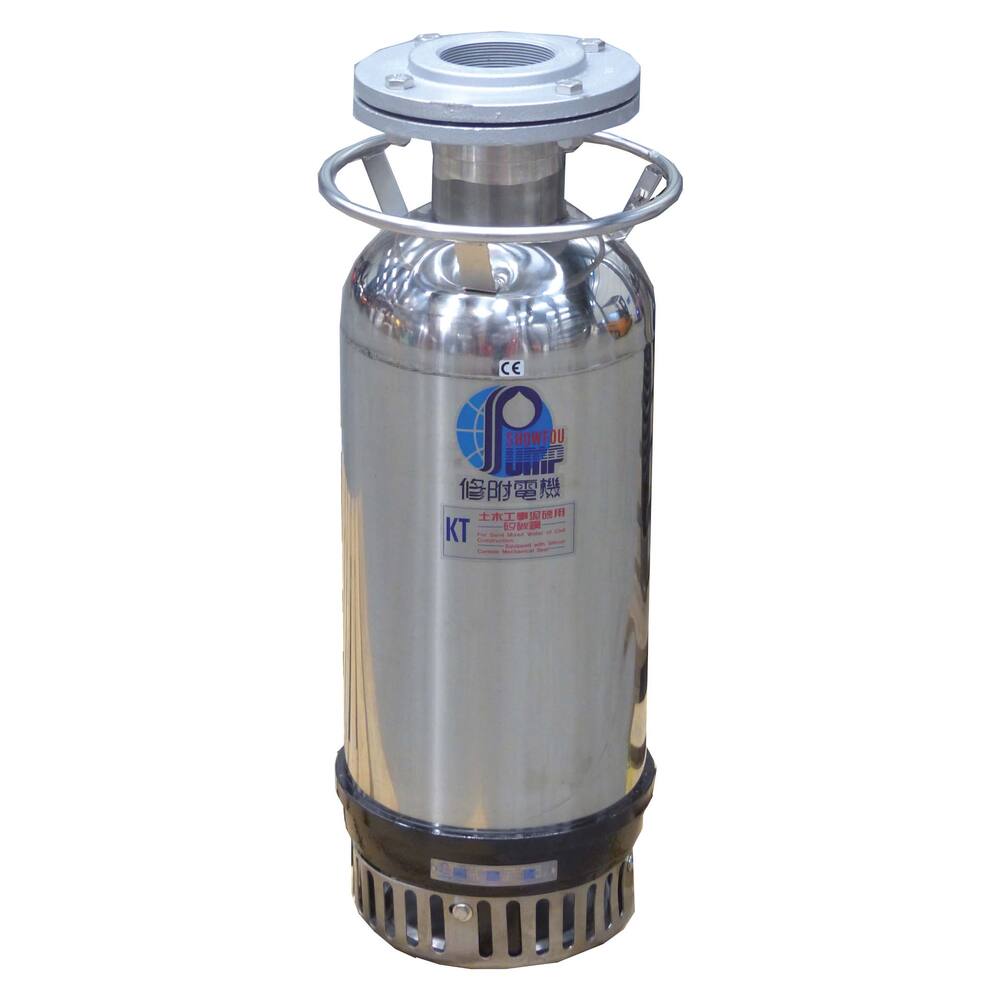

Ulex KT-532H (Showfou KT-532HDE) Pump 50HZ 400V With MSS
This model shares the same rugged design and application range as the version without MSS but includes a motor protection switch, providing a guarantee for the user. It is ideal for inland and seagoing shipping, fisheries, construction, industry, and dewatering with professional quality and large capacities for vessel salvage.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: Provided with MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates by submersion depth:
- 10 metres: 25,500 litres per hour
- 15 metres: 18,000 litres per hour
- 20 metres: 11,000 litres per hour
- 25 metres: 3,000 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 232 mm, height 605 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.533
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 27.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 36,000 L/hour
- Capacity at 5 meters: 33,000 L/hour
-
