ID
1317090
$ 2,529.57
1-2 weeks delivery time
-
+
The Ulex KT-232N (Showfou KT-232DE) Pump 400V With MSS is a robust submersible centrifugal pump designed for diverse applications including shipping, fisheries, construction, and dewatering. It features a hardened steel open impeller, stainless steel housing, and can handle contaminated water with solids and acidity up to 40°C. Operating at 400V with 1.5 kW power, it pumps down to 55 mm and delivers flow rates up to 17,400 liters per hour at 10 meters head. This model includes a motor protection switch and comes with a guarantee.
- Description
- Ask a Question
-

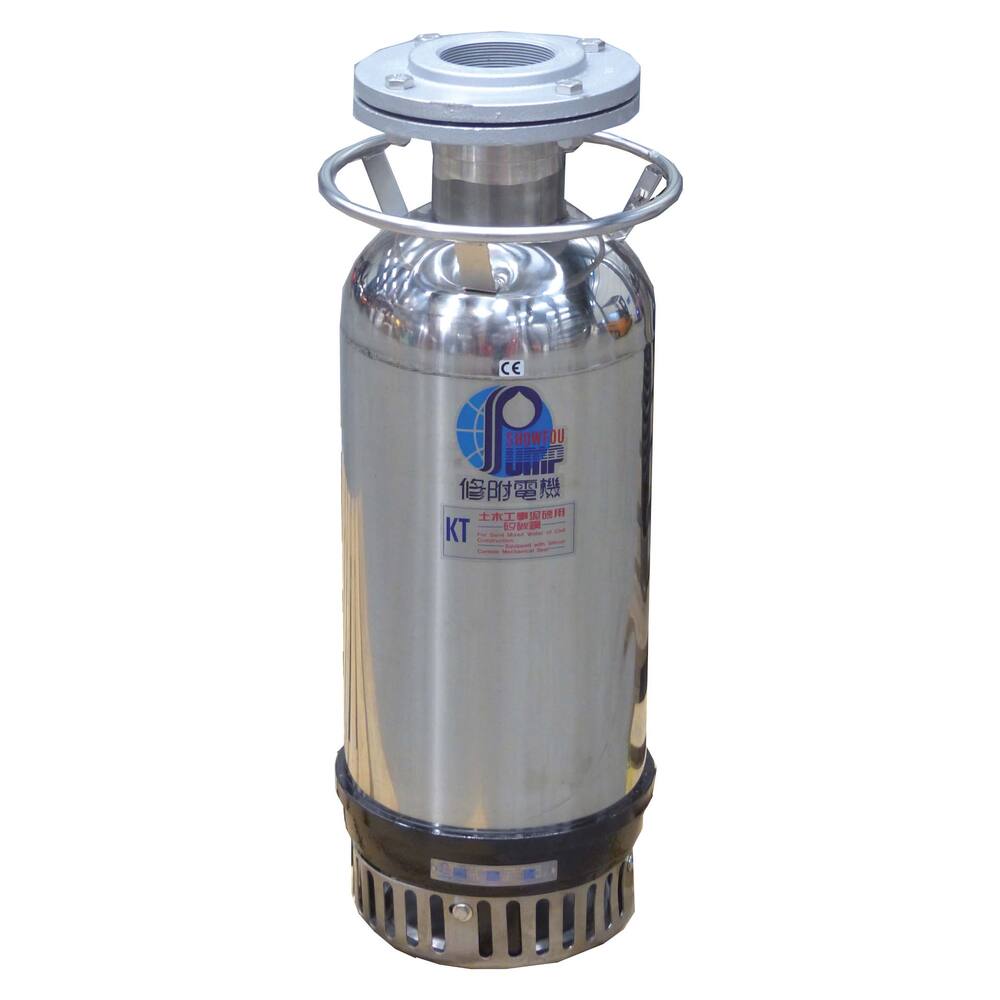

Ulex KT-232N (Showfou KT-232DE) Pump 400V With MSS
This robust cylinder pump is designed for a wide range of applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering. It is also available in large capacities, making it suitable for salvaging vessels. This pump offers professional quality at a reasonable price.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: Maximum 10 metres
- Materials impeller: Hardened steel
- Materials impeller housing: Cast iron
- Materials motor housing: Stainless steel 304
- Materials pump shaft: Stainless steel 304
- Liquids: Contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rates: 10m – 17,400 L/hour, 15m – 10,500 L/hour, 20m – 2,400 L/hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 550 mm
- Weight: 37.0 kg
- Amperage: 400 V, 3.4 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.233
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 21.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 27,600 L/hour
- Capacity at 5 meters: 23,400 L/hour
-
