The Ulex KT-212N (Showfou KT-212DE) Pump 230V Without MSS is a sturdy submersible centrifugal pump suitable for shipping, fisheries, construction, and industrial dewatering. It has an open impeller made of hardened steel and a stainless steel motor housing, designed to handle contaminated water with solids and acidity up to 40°C. This 230V pump delivers flow rates ranging from 2,400 to 17,400 liters per hour depending on head height, pumps down to 55 mm, and weighs 41 kg. It does not include a motor protection switch, so no guarantee is offered.
- Description
- Ask a Question
-

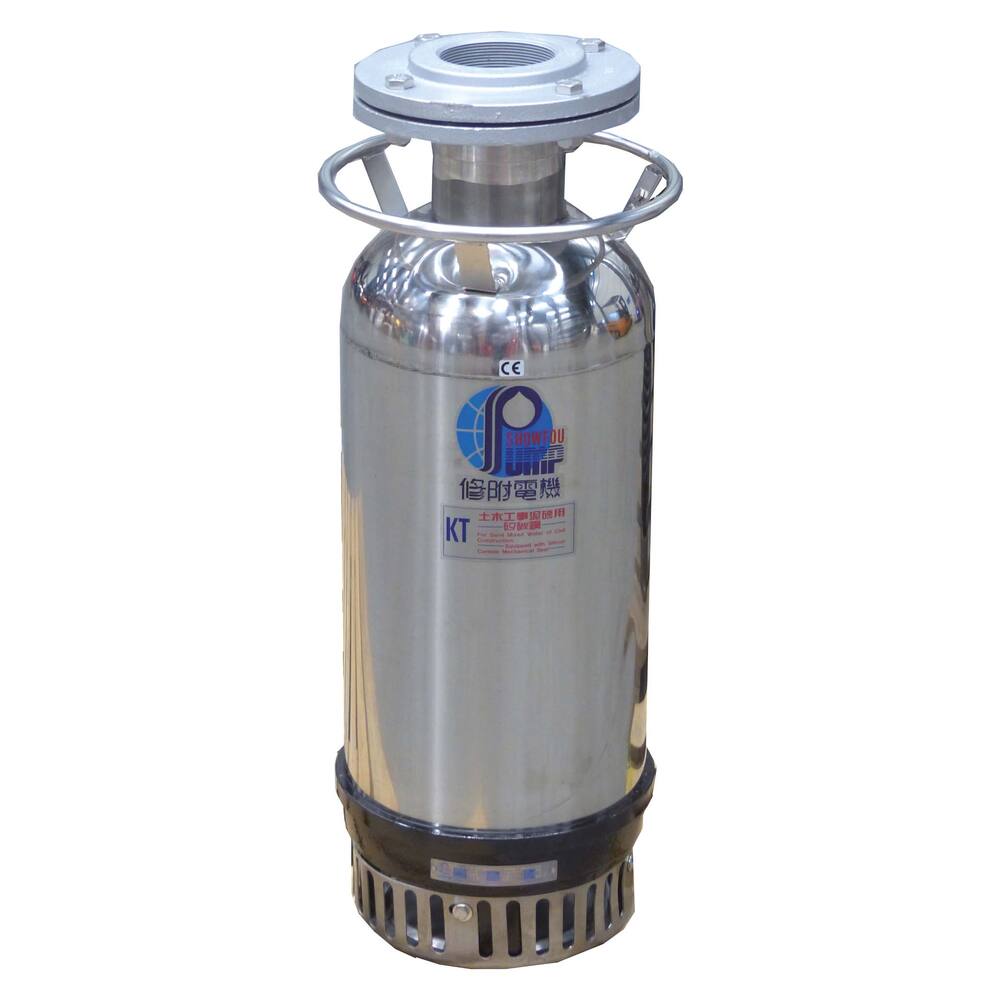

Ulex KT-212N (Showfou KT-212DE) Pump 230V Without MSS
This sturdy cylinder pump is designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It offers professional-grade quality at an affordable price and is also available in larger capacities suitable for vessel salvage operations.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Liquids handled: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates:
- 10 metres: 17,400 litres per hour
- 15 metres: 10,500 litres per hour
- 20 metres: 2,400 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 650 mm (550 mm for 400 V model)
- Weight: 41.0 kg
- Electrical: 230 V, 14.0 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.212
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 21.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 27,600 L/hour
- Capacity at 5 meters: 23,400 L/hour
-
