ID
1317088
$ 2,516.53
1-2 weeks delivery time
-
+
The Ulex KT-212N (Showfou KT-212DE) Pump 230V With MSS is engineered for demanding applications in shipping, fisheries, construction, and industrial dewatering, offering professional quality with a reliable motor protection switch and product guarantee. It shares the same specifications as the 230V model without MSS, including a hardened steel open impeller, stainless steel housing, and the ability to handle contaminated water with solids and acidity. It delivers flow rates from 2,400 to 17,400 liters per hour, pumps down to 55 mm, and weighs 41 kg.
- Description
- Ask a Question
-

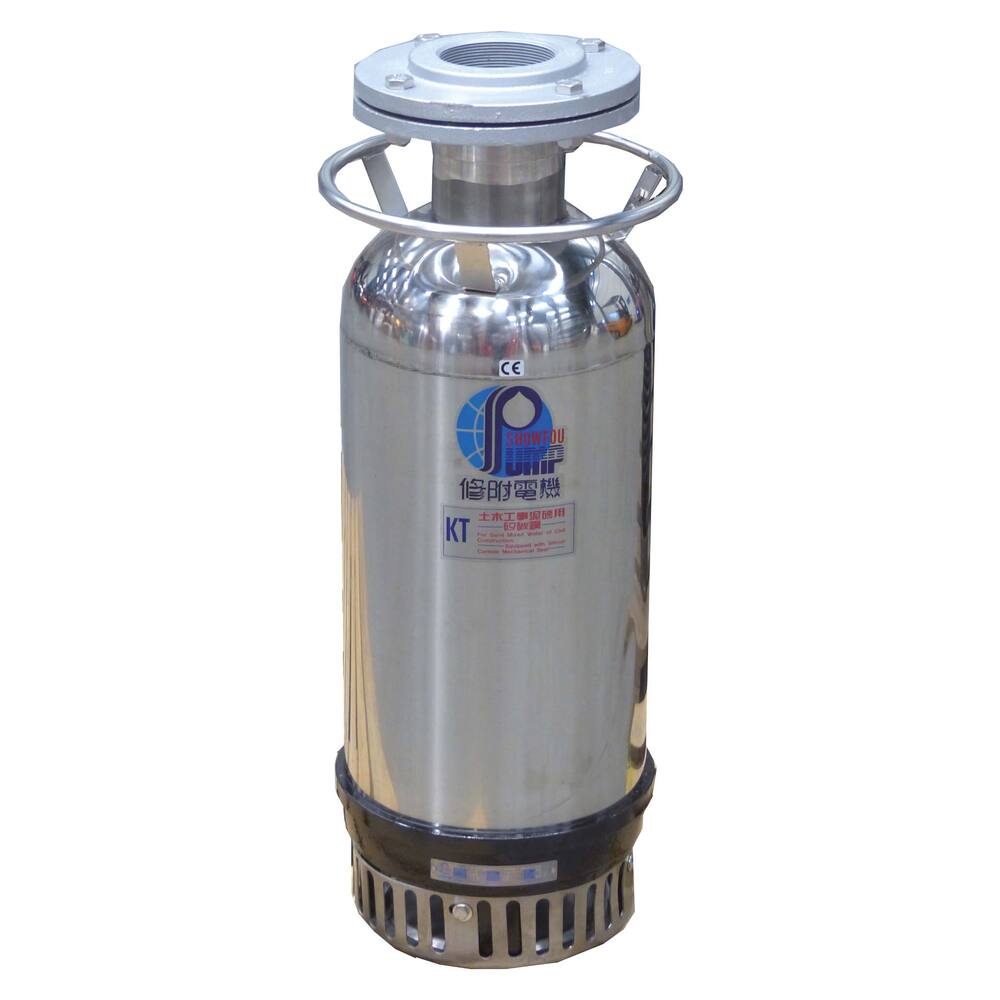

Ulex KT-212N (Showfou KT-212DE) Pump 230V With MSS
Engineered for demanding applications in shipping, fisheries, construction, and industrial dewatering, this robust cylinder pump combines professional quality with a dependable motor protection switch, ensuring reliable operation and a product guarantee.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: With motor protection switch (Guarantee)
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Liquids handled: Contaminated water with solids and high acidity, max temperature 40°C
- Flow rates:
- 10 metres: 17,400 litres per hour
- 15 metres: 10,500 litres per hour
- 20 metres: 2,400 litres per hour
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 228 mm, Height 650 mm
- Weight: 41.0 kg
- Electrical: 230 V, 14.0 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.213
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 21.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 27,600 L/hour
- Capacity at 5 meters: 23,400 L/hour
-
