ID
1317085
$ 9,896.59
1-2 weeks delivery time
-
+
The Ulex KL-1532 (Showfou KL-1532LE) Pump without motor protection switch is a durable submersible centrifugal pump suitable for shipping, fisheries, construction, industry, and dewatering, offered in large capacities ideal for salvage vessels. It does not include a motor protection switch or guarantee, is made from stainless steel, bronze, and cast iron, handles contaminated water with solids and acidity up to 40°C, and operates at 400 V, 50 Hz with a maximum submersion depth of 10 meters and a free flow rate of 540,000 liters per hour.
- Description
- Ask a Question
-

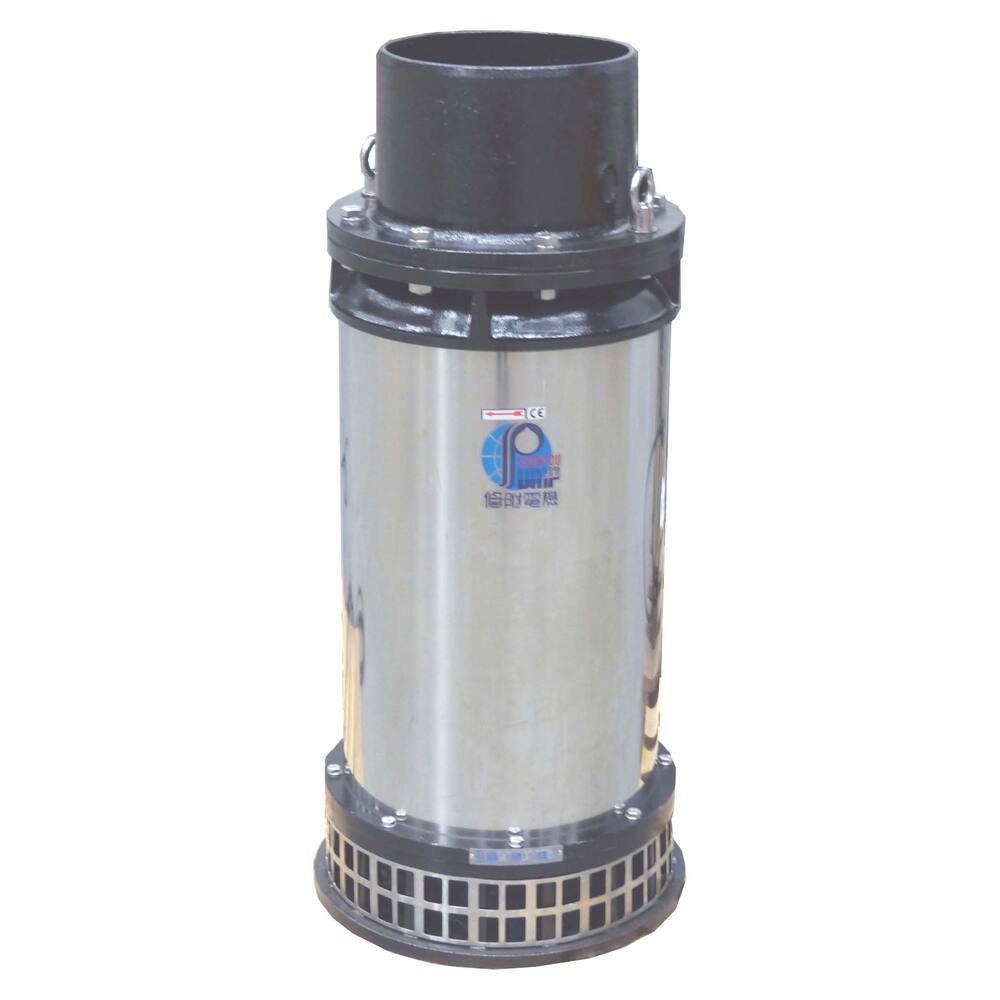

Ulex KL-1532 (Showfou KL-1532LE) Pump 400V Without MSS
This durable cylinder pump is suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It is available in large capacities ideal for salvaging vessels. It offers professional-grade quality but without a motor protection switch and therefore no guarantee.
- Type: KL
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water containing solids and high acidity, max temperature 40°C
- Pumps down to: 105 mm
- Connection: 315 mm hose connection with flange, easily convertible to other sizes
- Dimensions: diameter 422 mm, height 1065 mm
- Weight: 191.0 kg
- Amperage: 25.0 A
- Shaft power: 11.0 kW, 15.0 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.31.953
- Pipe diameter pressure: 12.6"
- Model: without motor protection switch (no guarantee)
- Pump type: submersible pump
- Medium: water
- Particle size: 15 mm
- Max discharge head: 10.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 540,000 L/hour
- Capacity at 5 meter head: 432,000 L/hour
-
