The Ulex KL-2032 (Showfou KL-2032LE) Pump 400V Without MSS is a robust cylinder pump designed for tough environments such as inland and seagoing shipping, fisheries, construction, industry, and dewatering. It features a completely submersible centrifugal design with an open bronze impeller and stainless steel housing, capable of handling contaminated water with solids and high acidity up to 40°C. The pump operates at 400V with a 15 kW motor, has a maximum submersion depth of 10 meters, and delivers a high flow rate of up to 90,000 liters per hour at 10 meters head. However, it lacks a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

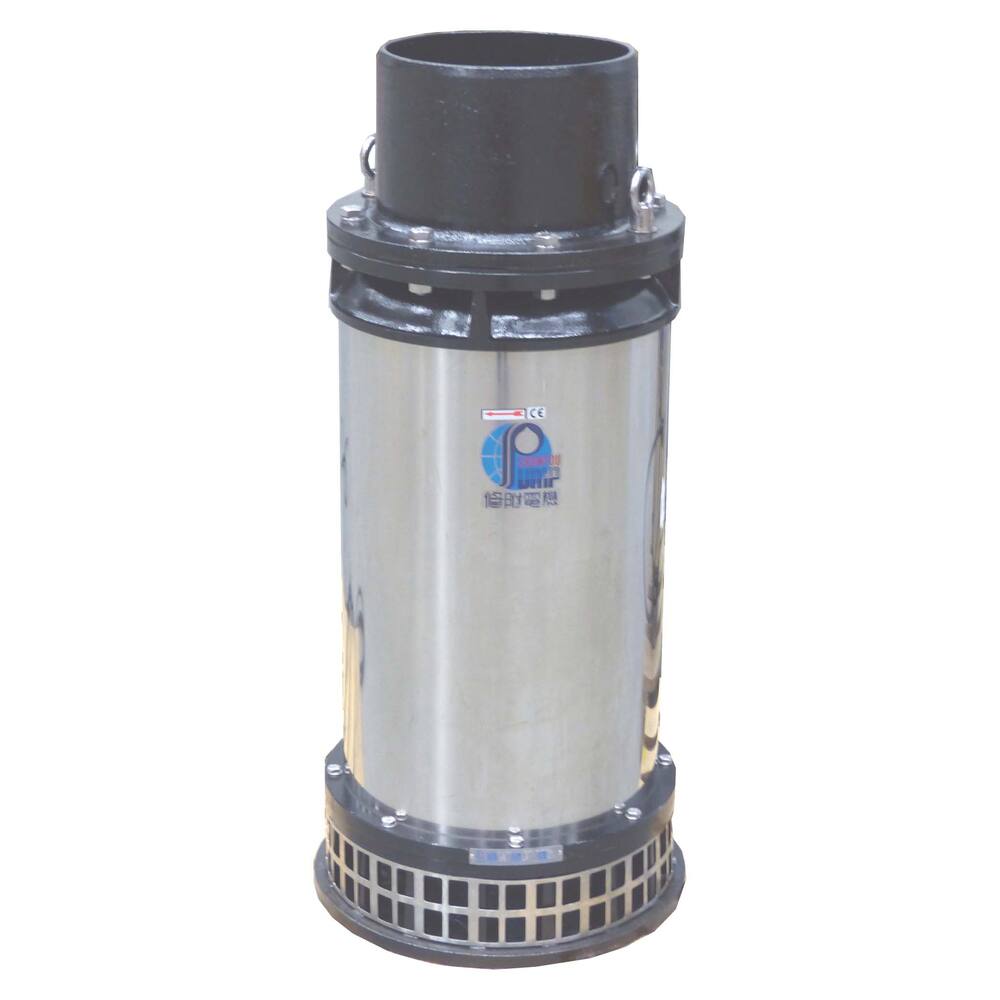

Ulex KL-2032 (Showfou KL-2032LE) Pump 400V Without MSS
Built to withstand demanding environments, this cylinder pump is perfect for inland and seagoing shipping, fisheries, construction, industry, and dewatering applications. It comes in large capacity versions suitable for salvaging and excludes a motor protection switch, so no guarantee is provided.
- Type: KL
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water containing solids and high acidity, max temperature 40°C
- 10 metres head flow rate: 90,000 litres per hour
- Pumps down to: 105 mm
- Connection: 320 mm hose connection with flange, easily convertible to other sizes
- Dimensions: diameter 450 mm, height 1100 mm
- Weight: 195.0 kg
- Amperage: 30.8 A
- Shaft power: 15.0 kW, 20.0 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.31.973
- Pipe diameter pressure: 12.8"
- Model: without motor protection switch (no guarantee)
- Pump type: submersible pump
- Medium: water
- Particle size: 15 mm
- Max discharge head: 12.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 600,000 L/hour
- Capacity at 5 meter head: 492,000 L/hour
-
