ID
1317082
$ 5,347.85
1-2 weeks delivery time
-
+
The Ulex KS-732 (Showfou KS-732ES) Pump with motor protection switch is a robust submersible centrifugal pump suitable for shipping, fisheries, construction, industry, and dewatering, offering large capacity options for salvage vessels. It includes a motor protection switch providing a guarantee, and is constructed from stainless steel, bronze, and cast iron. It handles contaminated water with solids and acidity up to 40°C, operates at 400 V, 50 Hz, with a maximum submersion depth of 10 meters and a free flow rate of 198,000 liters per hour.
- Description
- Ask a Question
-

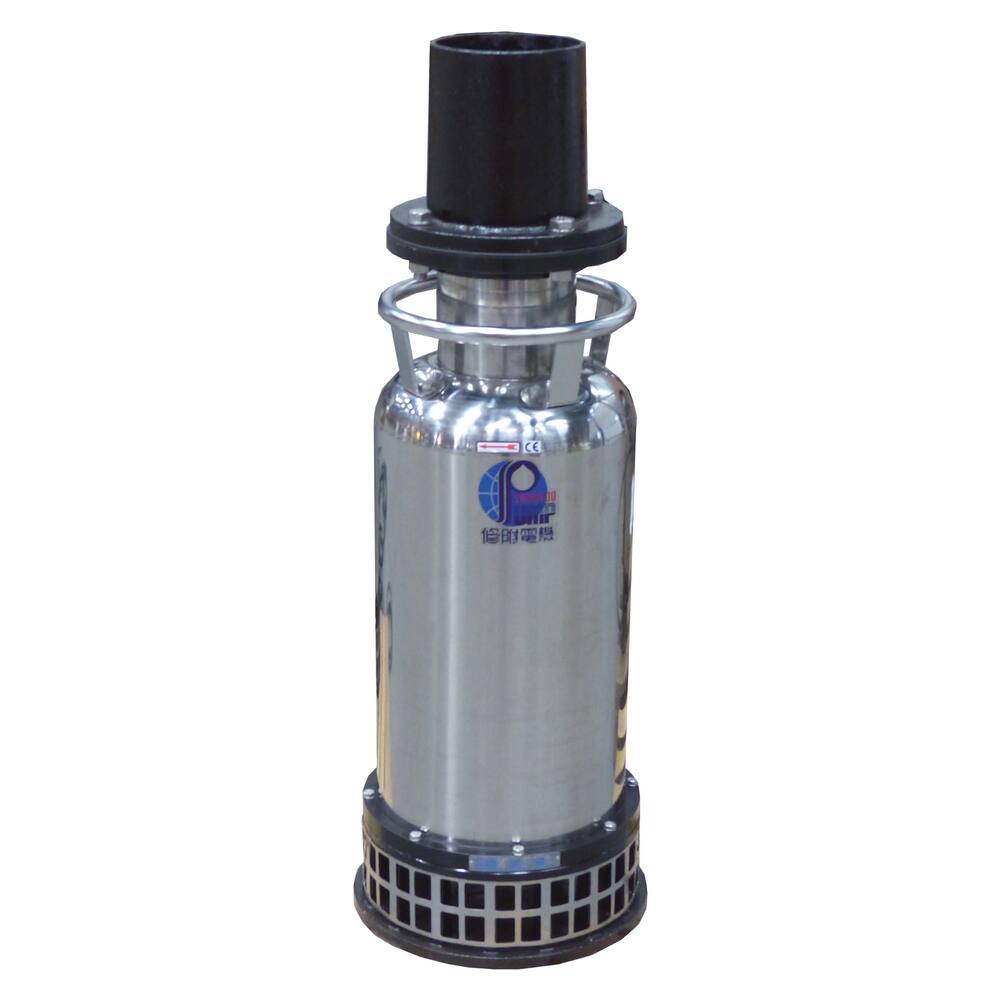

Ulex KS-732 (Showfou KS-732ES) Pump 400V With MSS
This robust cylinder pump suits inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It offers large capacity options for salvaging vessels and ensures professional quality at a reasonable price, now including a motor protection switch for added guarantee.
- Type: KS and KL
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: guarantee with MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: 10 metres maximum
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max. temperature 40°C
- Pumps down to: 105 mm
- Connection: 6" internal thread
- Dimensions: diameter 335 mm, height 750 mm
- Weight: 107.0 kg
- Amperage: 10.0 A
- Shaft power: 5.5 kW, 7.5 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.733
- Pipe diameter pressure: 6"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 15 mm
- Discharge head max.: 10.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 198,000 L/hour
- Capacity at 5 meter: 132,000 L/hour
-
