ID
1317084
$ 8,020.84
1-2 weeks delivery time
-
+
The Ulex KL-1032 (Showfou KL-1032LE) Pump with motor protection switch is a robust submersible centrifugal pump for shipping, fisheries, construction, industry, and dewatering tasks, including large capacity versions for salvage vessels. It features a motor protection switch with guarantee, constructed from stainless steel, bronze, and cast iron, handling contaminated water with solids and acidity up to 40°C. It operates at 400 V, 50 Hz, with a maximum submersion depth of 10 meters and a free flow rate of 444,000 liters per hour.
- Description
- Ask a Question
-

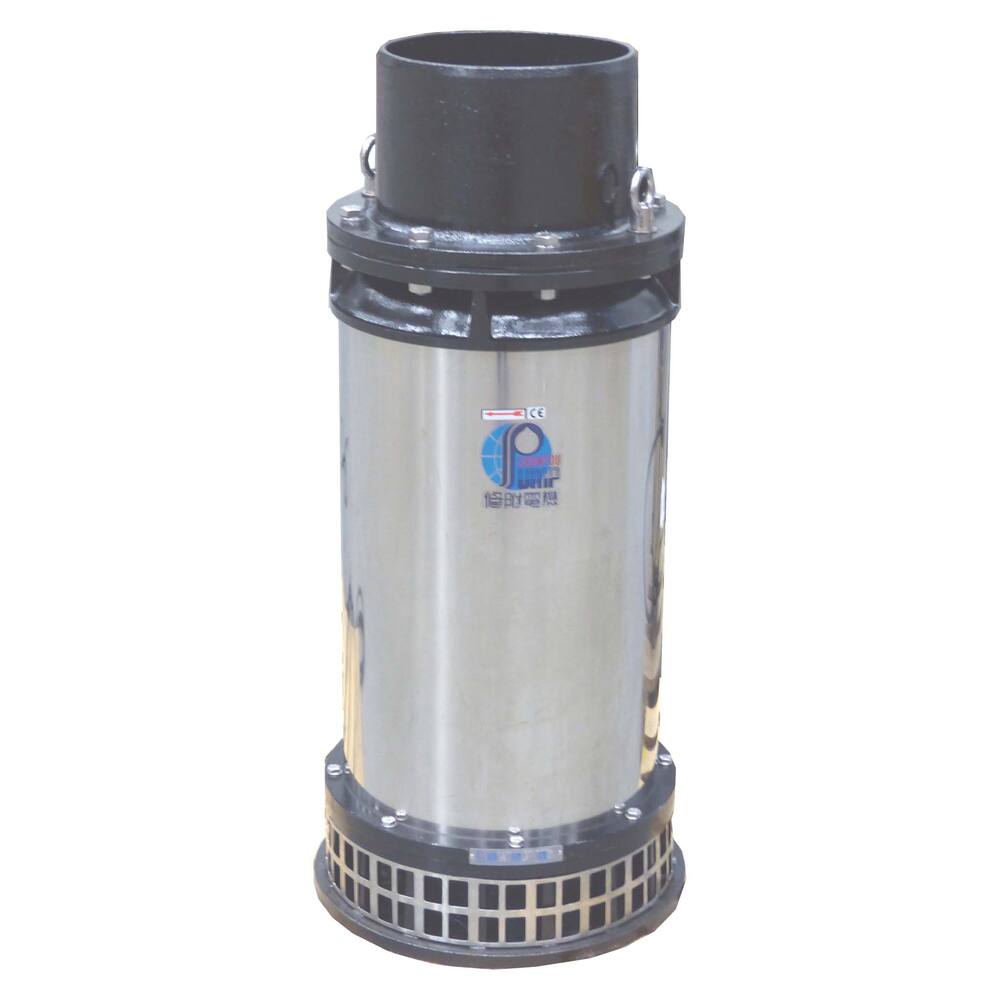

Ulex KL-1032 (Showfou KL-1032LE) Pump With MSS
This robust cylinder pump is designed for a wide range of applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It also comes in larger capacity versions suitable for salvaging vessels, delivering professional quality at a reasonable price.
- Type: KL
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: with MSS (motor protection switch)
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max temperature 40°C
- Pumps down to: 105 mm
- Connection: 270 mm hose connection with flange, easily convertible to other sizes
- Dimensions: diameter 422 mm, height 1035 mm
- Weight: 165.0 kg
- Amperage: 16.5 A
- Shaft power: 7.5 kW, 10.0 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.31.904
- Pipe diameter pressure: 10"
- Model: with motor protection switch (guaranteed)
- Pump type: submersible pump
- Medium: water
- Particle size: 15 mm
- Max discharge head: 9.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 444,000 L/hour
- Capacity at 5 meter head: 300,000 L/hour
-
