The Ulex KS-732 (Showfou KS-732ES) Pump without motor protection switch is a durable submersible centrifugal pump for demanding environments such as shipping, fisheries, construction, and industrial dewatering. It offers larger capacities suitable for salvaging vessels but comes without a guarantee. The pump is made of stainless steel, bronze, and cast iron, handles contaminated water with solids and acidity up to 40°C, and operates at 400 V, 50 Hz with a maximum submersion depth of 10 meters and a free flow rate of 198,000 liters per hour.
- Description
- Ask a Question
-

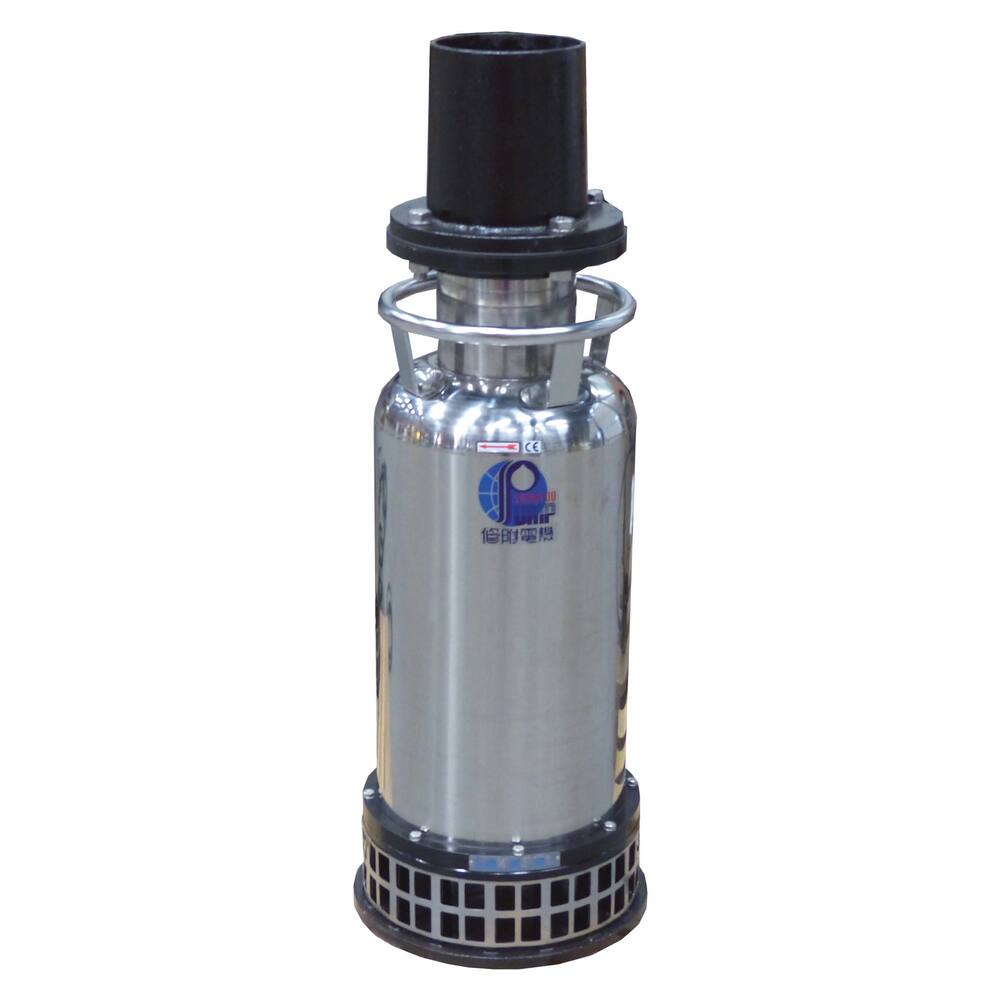

Ulex KS-732 (Showfou KS-732ES) Pump 400V Without MSS
This durable cylinder pump is designed for a variety of demanding environments including inland and seagoing shipping, fisheries, construction, and industrial dewatering. It is also available in larger capacities suitable for salvaging vessels, offering professional quality at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: 10 metres maximum
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max. temperature 40°C
- Pumps down to: 105 mm
- Connection: 6" internal thread
- Dimensions: diameter 335 mm, height 750 mm
- Weight: 107.0 kg
- Amperage: 10.0 A
- Shaft power: 5.5 kW, 7.5 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.732
- Pipe diameter pressure: 6"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 15 mm
- Discharge head max.: 10.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 198,000 L/hour
- Capacity at 5 meter: 132,000 L/hour
-
