ID
1317083
$ 7,566.33
1-2 weeks delivery time
-
+
The Ulex KL-1032 (Showfou KL-1032LE) Pump without motor protection switch is a powerful submersible centrifugal pump designed for shipping, fisheries, construction, industry, and dewatering, available in large capacities suitable for salvage vessels. It lacks a motor protection switch and guarantee, is made from stainless steel, bronze, and cast iron, handles contaminated water with solids and acidity up to 40°C, and operates at 400 V, 50 Hz with a maximum submersion depth of 10 meters and a free flow rate of 444,000 liters per hour.
- Description
- Ask a Question
-

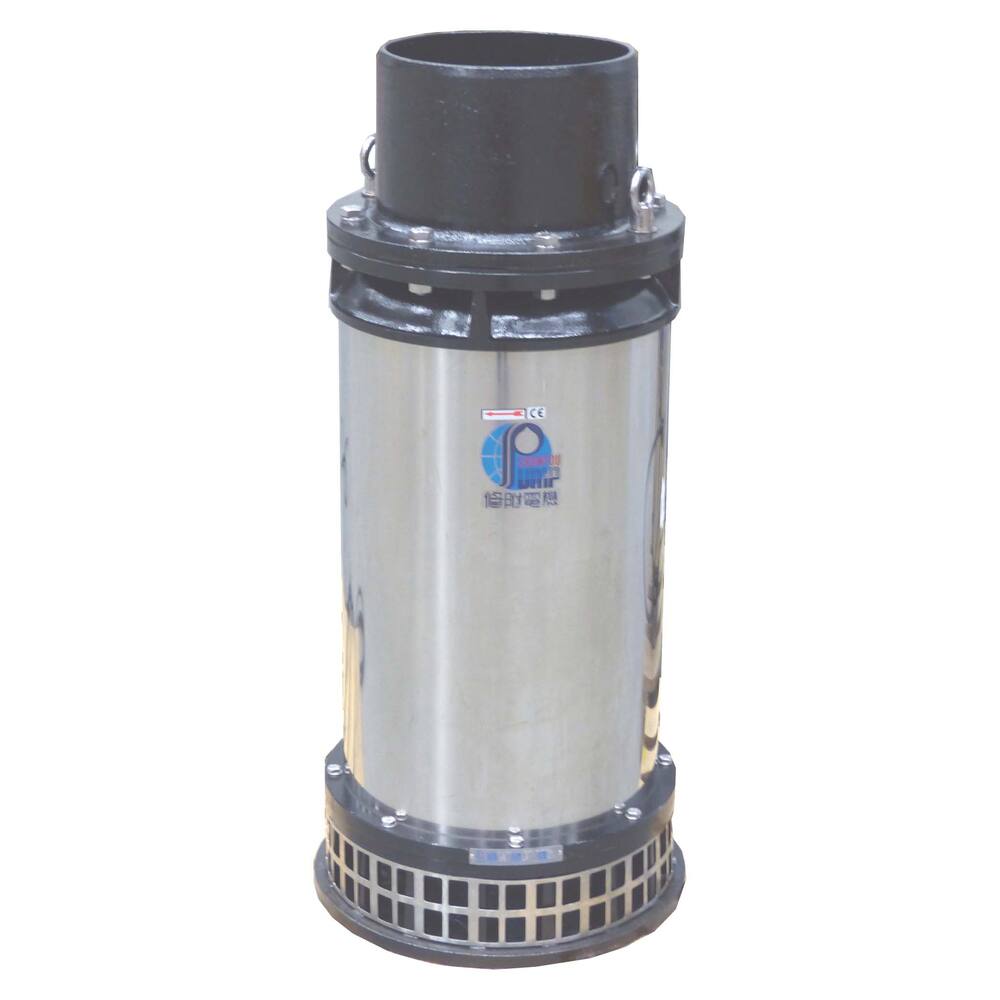

Ulex KL-1032 (Showfou KL-1032LE) Pump Without MSS
This powerful cylinder pump is suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering operations. It comes in large capacities fit for salvaging vessels and provides professional quality at a reasonable price, without motor protection switch.
- Type: KL
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: 10 metres maximum
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max. temperature 40°C
- Pumps down to: 105 mm
- Connection: 270 mm hose connection with flange, easily converted to other sizes
- Dimensions: diameter 422 mm, height 1035 mm
- Weight: 165.0 kg
- Amperage: 16.5 A
- Shaft power: 7.5 kW, 10.0 hp, 1500 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.31.903
- Pipe diameter pressure: 10"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 15 mm
- Discharge head max.: 9.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 444,000 L/hour
- Capacity at 5 meter: 300,000 L/hour
-
