The Ulex KS-532A (Showfou KS-532ADE) Pump is a powerful submersible cylinder pump designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks, also suitable for salvage operations due to its high capacity. It features a motor protection switch for reliability and safety, with materials including stainless steel, bronze, and cast iron, and handles contaminated water with solids and high acidity up to 40°C. It operates at 60 Hz, 440 V, with a maximum submersion depth of 10 meters and a flow rate up to 96,000 liters per hour free flow.
- Description
- Ask a Question
-

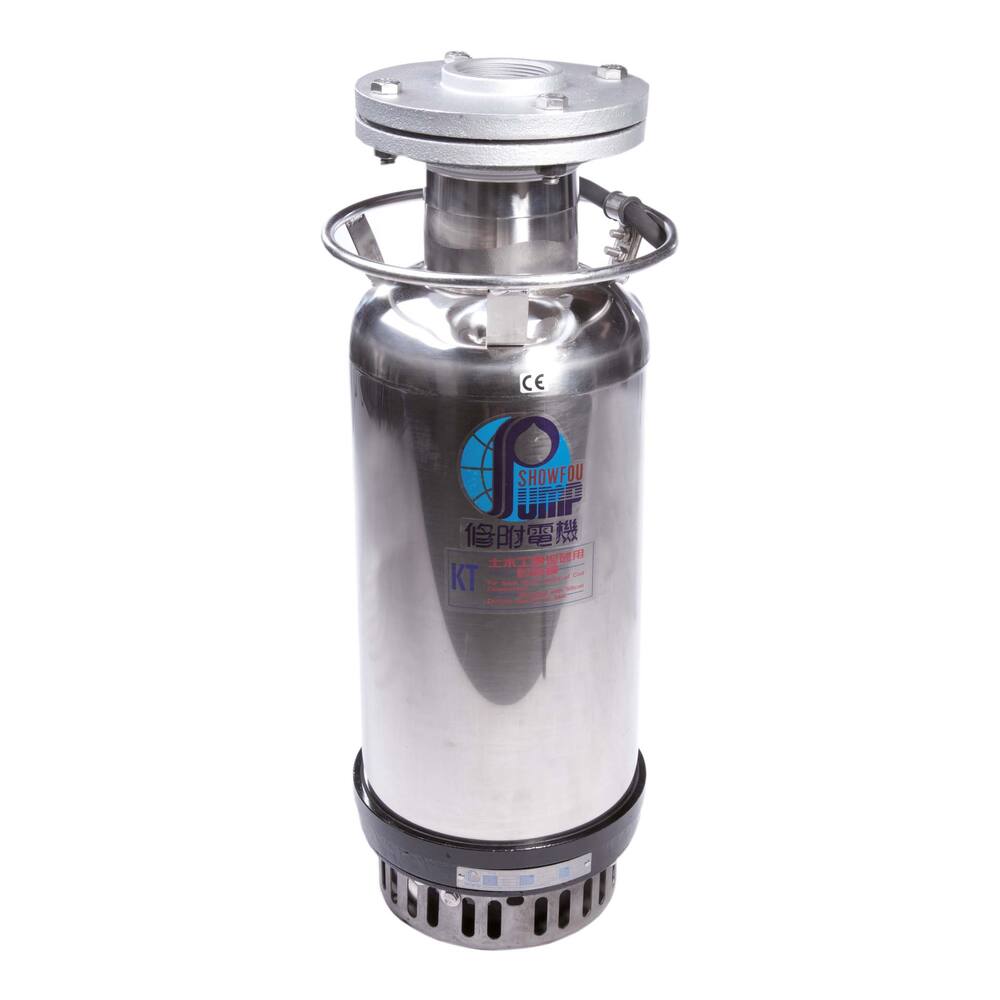

Ulex KS-532A (Showfou KS-532ADE) Pump 60HZ 440V With MSS
This powerful submersible cylinder pump is ideal for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It also suits salvage operations with its high capacity. The pump includes a motor protection switch ensuring a guarantee for reliability and safety.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: included with MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C
- Flow rate at 10 metres: 60,000 litres per hour
- Flow rate at 15 metres: 25,000 litres per hour
- Minimum pumping level: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 232 mm, height 560 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.535
- Pipe diameter pressure: 4"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 16.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 60 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: No
- Free flow rate: 96,000 L/hour
- Capacity at 5 metres: 93,000 L/hour
-
