ID
1317071
$ 1,913
1-2 weeks delivery time
-
+
The Ulex KS-212CN (Showfou KS-212CDE) 230V Without MSS is a robust stainless steel and black submersible centrifugal pump designed for shipping, fisheries, construction, and dewatering. It features an open bronze impeller, oil-filled motor without thermal safeguard, and no guarantee without motor protection switch. It pumps 54,000 liters per hour with a maximum discharge head of 9.75 meters and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

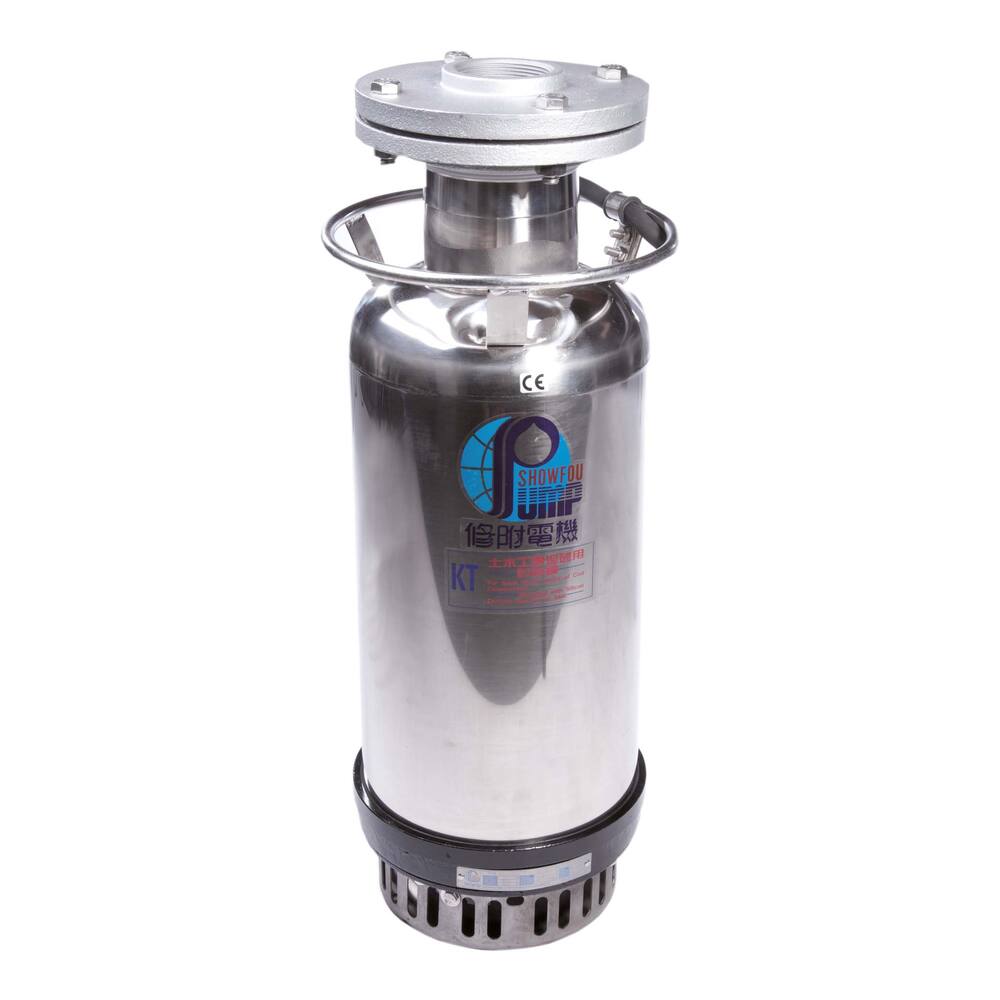

Ulex KS-212CN (Showfou KS-212CDE) 230V Without MSS
This robust cylinder pump is ideal for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It is available in large capacities suitable for salvaging vessels, delivering professional quality at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: NO inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: 10 metres maximum
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water containing solids and high acidity, max. temperature 40°C
- Pumps down to: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 610 mm
- Weight: 41.0 kg
- Amperage: KS 212CN 230 V, 14.0 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.30.212
- Pipe diameter pressure: 4"
- Pipe diameter suction: -
- Model: Without motor protection switch (No guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 9.75 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 54,000
- Capacity at 5 meter (L/hour): 42,000
-
