The Ulex KS-532A (Showfou KS-532ADE) Pump 50HZ 400V Without MSS is a durable stainless steel and black submersible centrifugal pump designed for shipping, fisheries, construction, and dewatering. It has an open bronze impeller, oil-filled motor without thermal safeguard, and no guarantee without motor protection switch. It delivers 60,000 liters per hour at 10 meters head and 25,000 liters per hour at 15 meters head, handling contaminated water with solids up to 40°C.
- Description
- Ask a Question
-

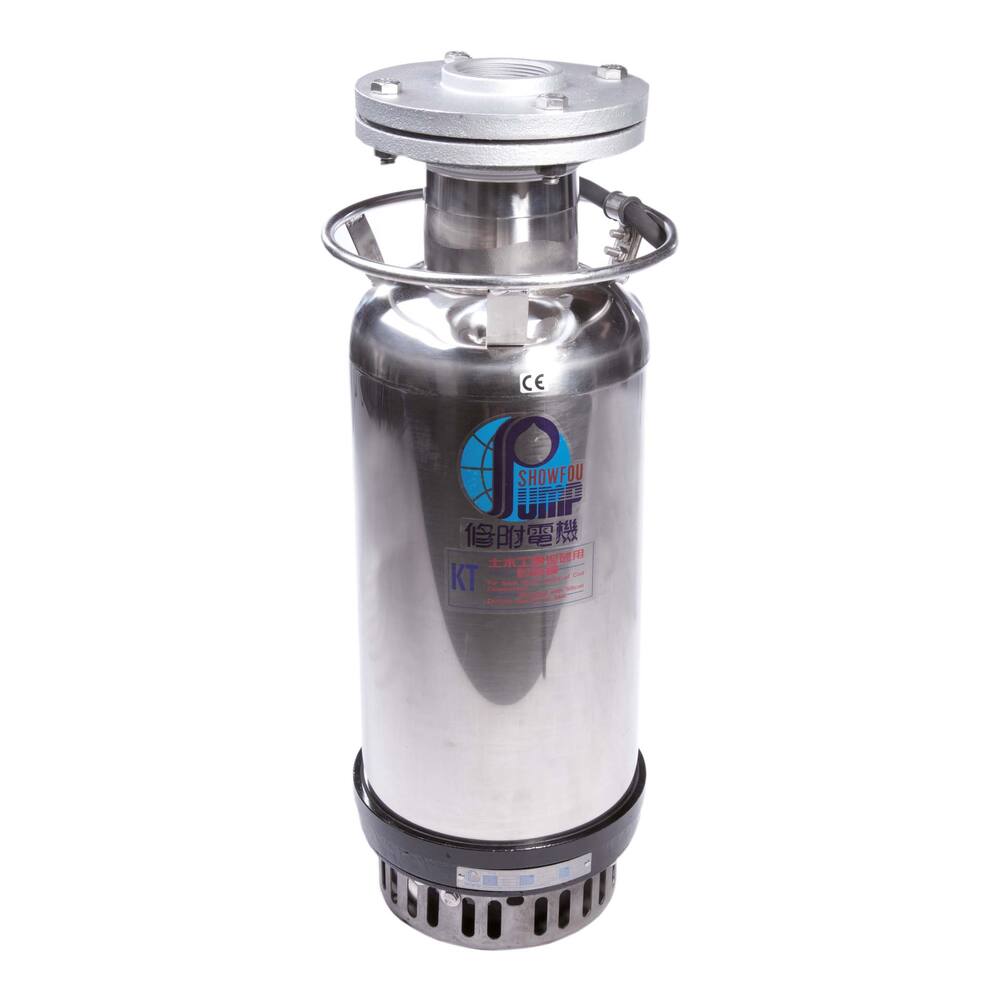

Ulex KS-532A (Showfou KS-532ADE) Pump 50HZ 400V Without MSS
This durable cylinder pump is engineered for use in inland and seagoing shipping, fisheries, construction, industry, and dewatering. It supports large capacities suitable for salvaging vessels and delivers professional quality at an affordable price. It handles contaminated water with solids and high acidity, operating efficiently at different heads.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Performance at 10 metres head: 60,000 litres per hour
- Performance at 15 metres head: 25,000 litres per hour
- Pumps down to: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 232 mm, height 560 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.532
- Pipe diameter pressure: 4"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 16.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 96,000 L/Hour
- Capacity at 5 meter: 93,000 L/hour
-
