ID
1317069
$ 1,151.16
1-2 weeks delivery time
-
+
The Ulex KS-132N (Showfou KS-132DE) 400V Without MSS is a durable stainless steel and black submersible centrifugal pump suitable for shipping, fisheries, construction, and dewatering. It features an open bronze impeller, oil-filled motor without thermal safeguard, and no guarantee without a motor protection switch. It pumps 9,000 liters per hour at 10 meters head, handles contaminated water with solids up to 40°C, and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

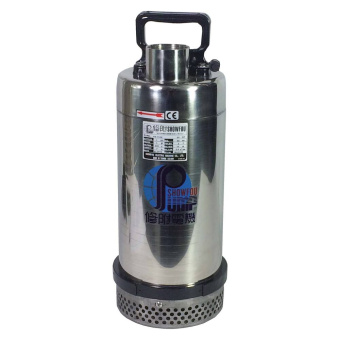

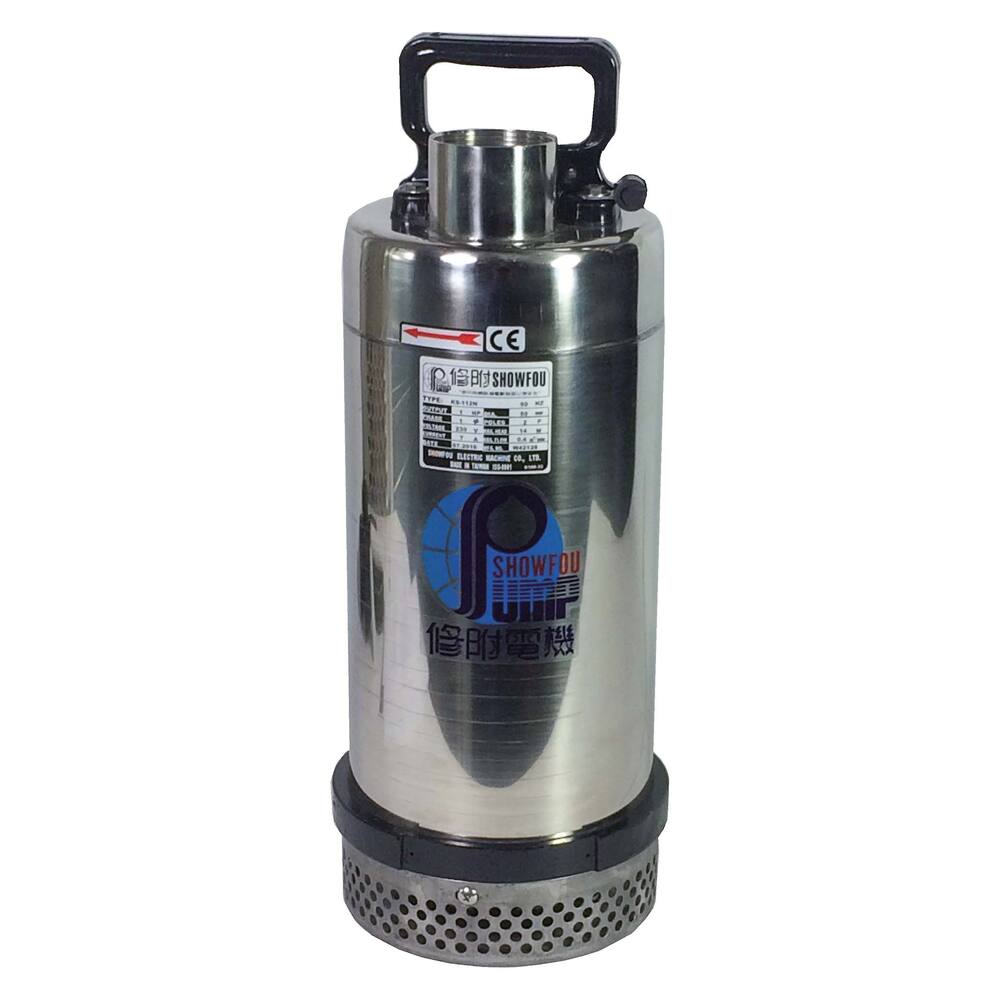

Ulex KS-132N (Showfou KS-132DE) 400V Without MSS
This durable cylinder pump is suited for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It features large capacity options suitable for vessel salvage, providing professional-grade performance at a reasonable price. Note that this model comes without a motor protection switch and is not guaranteed without MSS.
- Type: KS
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Bronze
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water with solids and high acidity, max. temperature 40°C
- Flow at 10 metres: 9,000 litres per hour
- Minimum pumping level: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 175 mm, Height 465 mm
- Weight: 19.0 kg
- Electrical: 400 V, 2.1 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F, without plug
- Product code: 90.30.132
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Particle size capability: 6 mm
- Max discharge head: 12.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 24,000 L/hour
- Capacity at 5 meter: 20,000 L/hour
-
