ID
1317078
$ 3,002.69
1-2 weeks delivery time
-
+
The Ulex KS-532A (Showfou KS-532ADE) Pump 50HZ 400V With MSS is a robust stainless steel and black submersible centrifugal pump for demanding environments including shipping and industry. It features an open bronze impeller, oil-filled motor, and includes a motor protection switch for guarantee. It pumps 60,000 liters per hour at 10 meters head and 25,000 liters per hour at 15 meters head, suitable for contaminated water with solids up to 40°C.
- Description
- Ask a Question
-

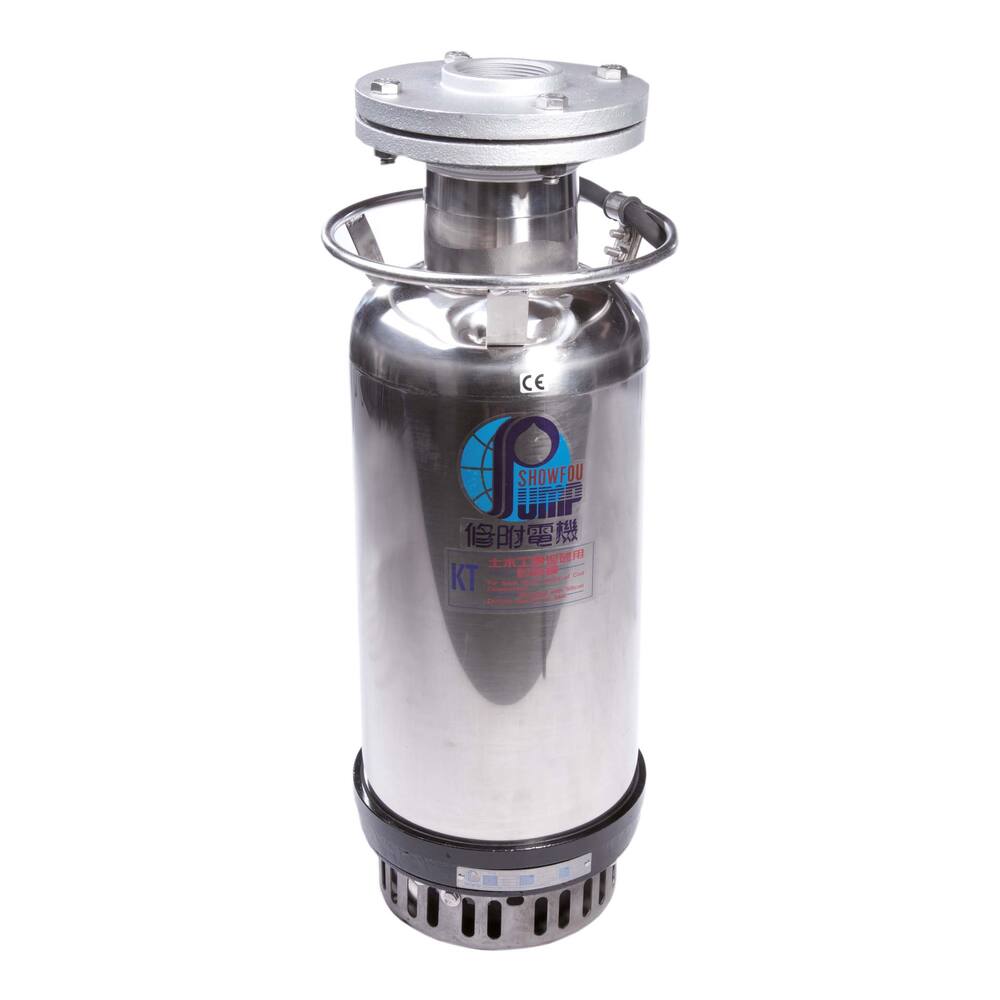

Ulex KS-532A (Showfou KS-532ADE) Pump 50HZ 400V With MSS
This robust cylinder pump is designed for a wide range of applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering. It is also available in larger capacities suitable for salvaging vessels, offering professional quality at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: only with MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C
- Flow rate at 10 metres: 60,000 litres per hour
- Flow rate at 15 metres: 25,000 litres per hour
- Minimum pumping level: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 232 mm, height 560 mm
- Weight: 49.0 kg
- Amperage: 8.5 A
- Shaft power: 3.7 kW, 5.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.533
- Pipe diameter pressure: 4"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 16.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: No
- Free flow rate: 96,000 L/hour
- Capacity at 5 metres: 93,000 L/hour
-
