The Ulex KS-232CN (Showfou KS-232CDE) 400V With MSS is a reliable stainless steel and black submersible centrifugal pump designed for demanding environments including shipping and vessel salvage. It has an open bronze impeller, oil-filled motor, and includes a motor protection switch for guarantee. It pumps 54,000 liters per hour with a maximum discharge head of 9.75 meters and a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

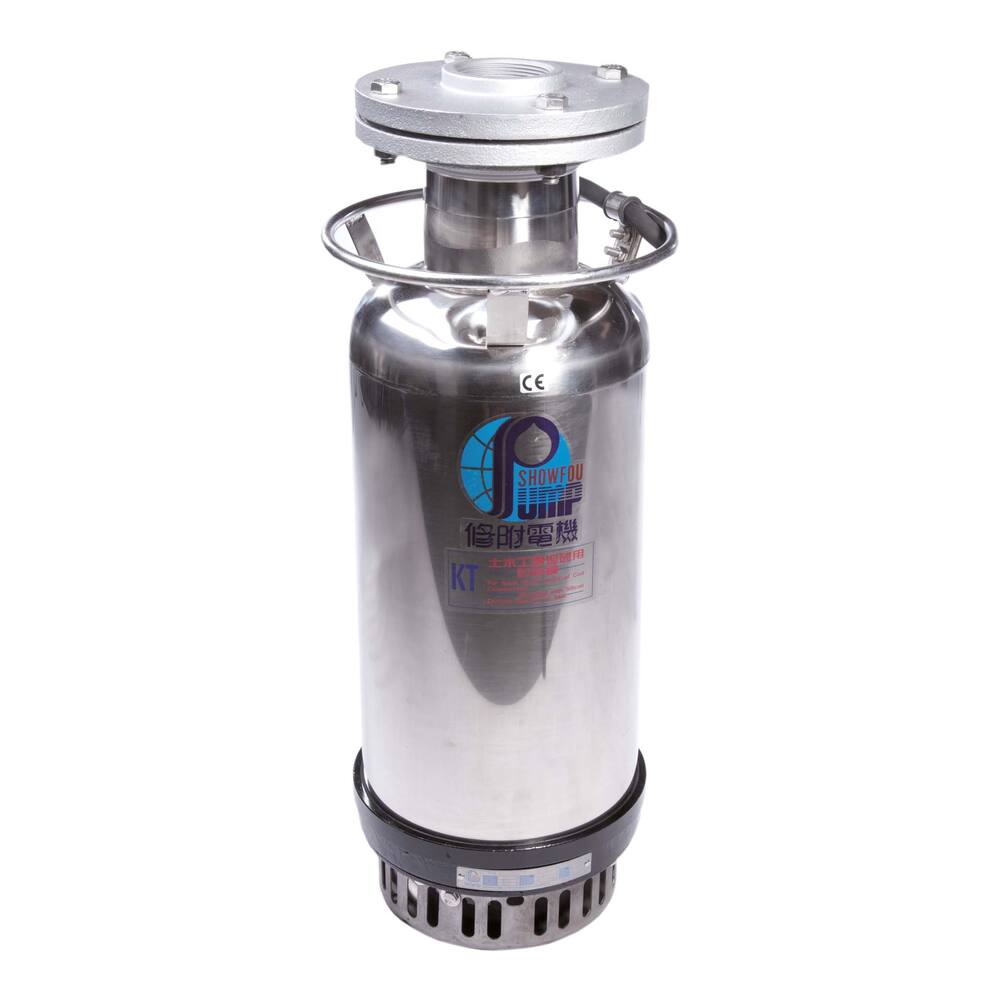

Ulex KS-232CN (Showfou KS-232CDE) Pump 400V With MSS
Engineered for demanding environments such as inland and seagoing shipping, fisheries, and construction, this reliable cylinder pump is also suitable for salvaging vessels. It offers professional-grade quality combined with a motor protection switch for added safety and guarantee.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Flow rate at 10 metres head: 33,000 litres per hour
- Minimum pumping depth: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 530 mm
- Weight: 42.0 kg
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.233
- Pipe diameter pressure: 4"
- Model: with motor protection switch (guarantee)
- Medium: water
- Maximum particle size: 10 mm
- Maximum discharge head: 9.75 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 54,000 L/hour
- Capacity at 5 meter head: 42,000 L/hour
-
