ID
1317070
$ 1,452.92
1-2 weeks delivery time
-
+

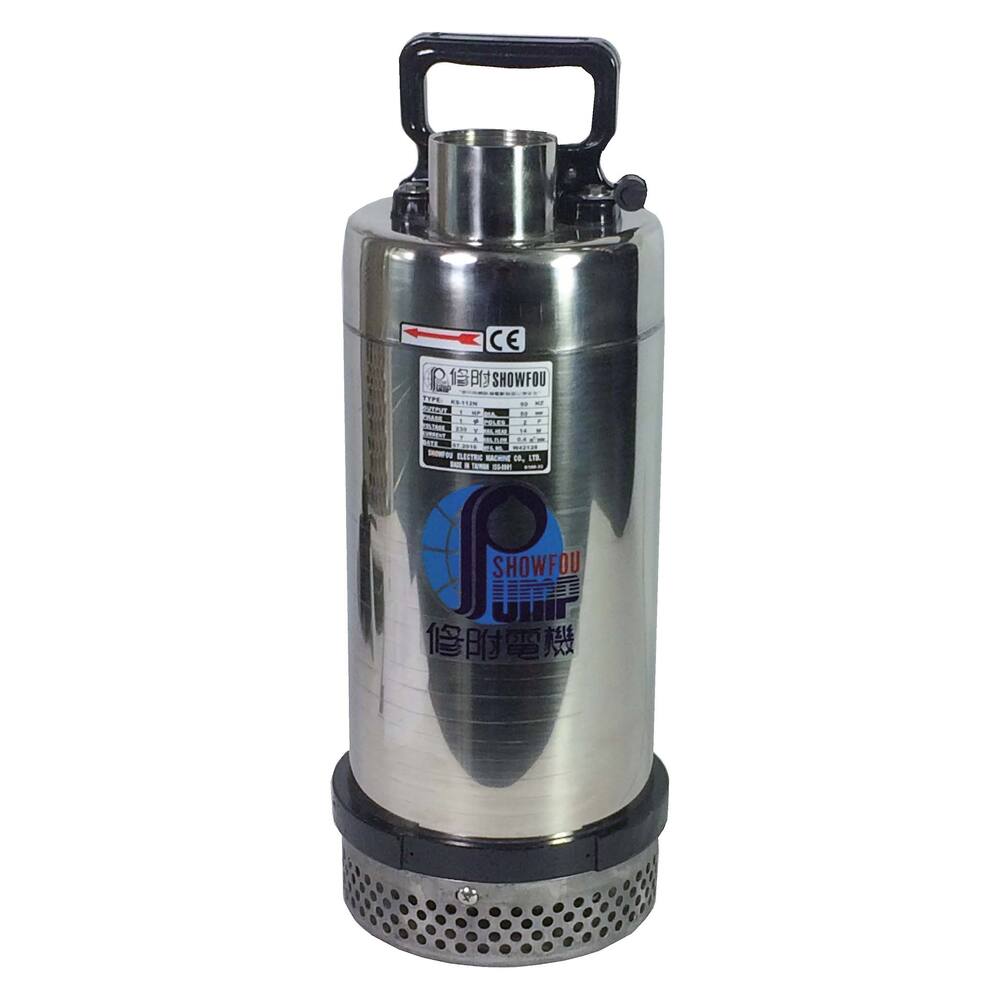

The Ulex KS-132N (Showfou KS-132DE) 400V With MSS is a professional-grade stainless steel and black submersible centrifugal pump designed for demanding environments including shipping and industry. It has an open bronze impeller, oil-filled motor, and includes a motor protection switch for guarantee. It pumps 9,000 liters per hour at 10 meters head, handles contaminated water with solids up to 40°C, and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

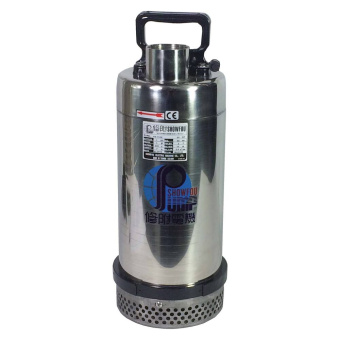

Ulex KS-132N (Showfou KS-132DE) 400V With MSS
A durable and professional-grade cylinder pump designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. Its robust construction makes it suitable for salvaging vessels when larger capacities are needed, all offered at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: NO inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Submersion depth: 10 metres maximum
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water containing solids and high acidity, max. temperature 40°C
- Pumps down to: 55 mm
- Connection: 2" internal thread
- Dimensions: diameter 175 mm, height 465 mm
- Weight: 19.0 kg
- Amperage: 400 V, 2.1 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F, without plug
- Product code: 90.30.133
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 6 mm
- Discharge head Max.: 12.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 24,000
- Capacity at 5 meter (L/hour): 20,000
-
