ID
1317072
$ 2,240.85
1-2 weeks delivery time
-
+
The Ulex KS-212CN (Showfou KS-212CDE) 230V With MSS is a stainless steel and black submersible centrifugal pump for demanding applications including shipping and industry. It has an open bronze impeller, oil-filled motor, and includes a motor protection switch for guarantee. It pumps 54,000 liters per hour with a maximum discharge head of 9.75 meters and a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

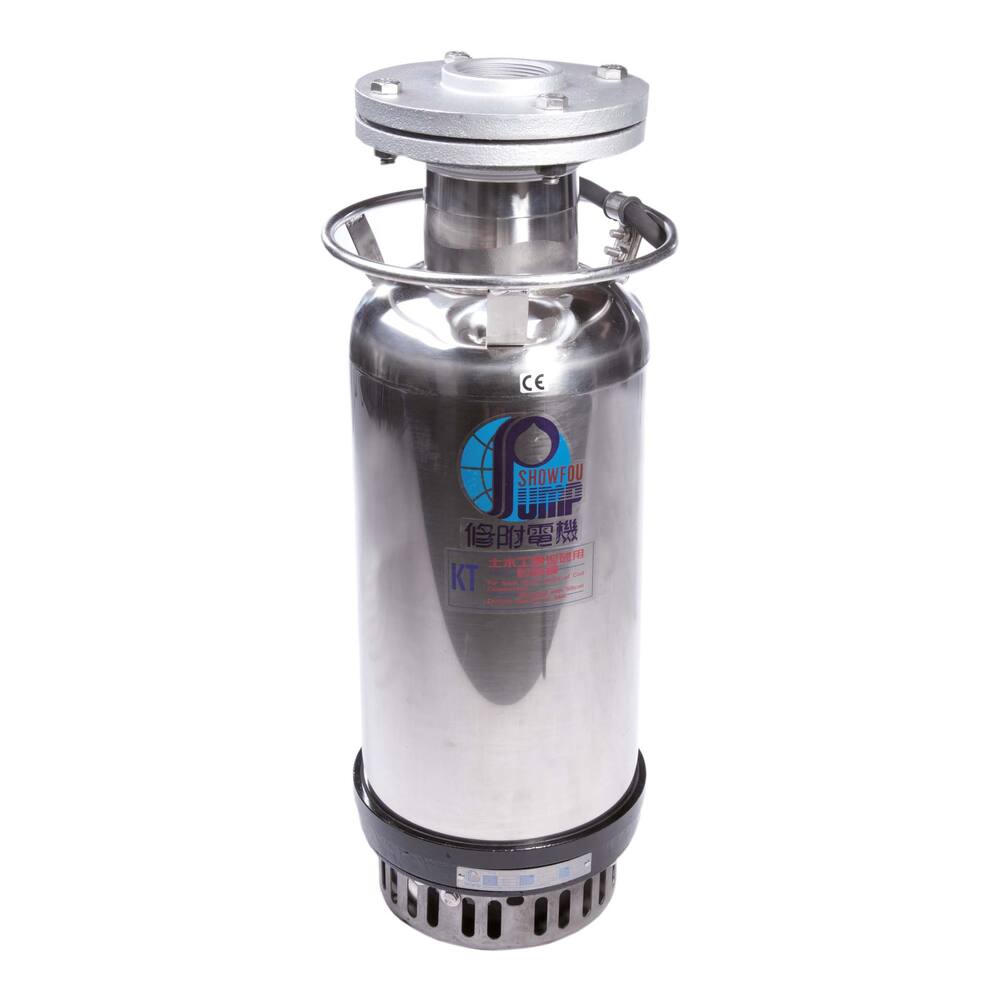

Ulex KS-212CN (Showfou KS-212CDE) Pump 230V With MSS
This robust cylinder pump is designed for a variety of demanding applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It is also available in larger capacities suitable for salvaging vessels, offering professional quality at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Minimum pumping depth: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 610 mm
- Weight: 41.0 kg
- Amperage: 230 V, 14.0 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.30.213
- Pipe diameter pressure: 4"
- Model: with motor protection switch (guarantee)
- Medium: water
- Maximum particle size: 10 mm
- Maximum discharge head: 9.75 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 54,000 L/hour
- Capacity at 5 meter head: 42,000 L/hour
-
