ID
1317076
$ 2,563.10
1-2 weeks delivery time
-
+
The Ulex KS-332A (Showfou KS-332DE) 400V With MSS is a robust stainless steel and black submersible centrifugal pump suitable for various demanding applications including shipping and industry. It includes a motor protection switch for guaranteed reliability, features an open bronze impeller and oil-filled motor, and pumps 33,000 liters per hour at 10 meters head while handling contaminated water with solids up to 40°C.
- Description
- Ask a Question
-

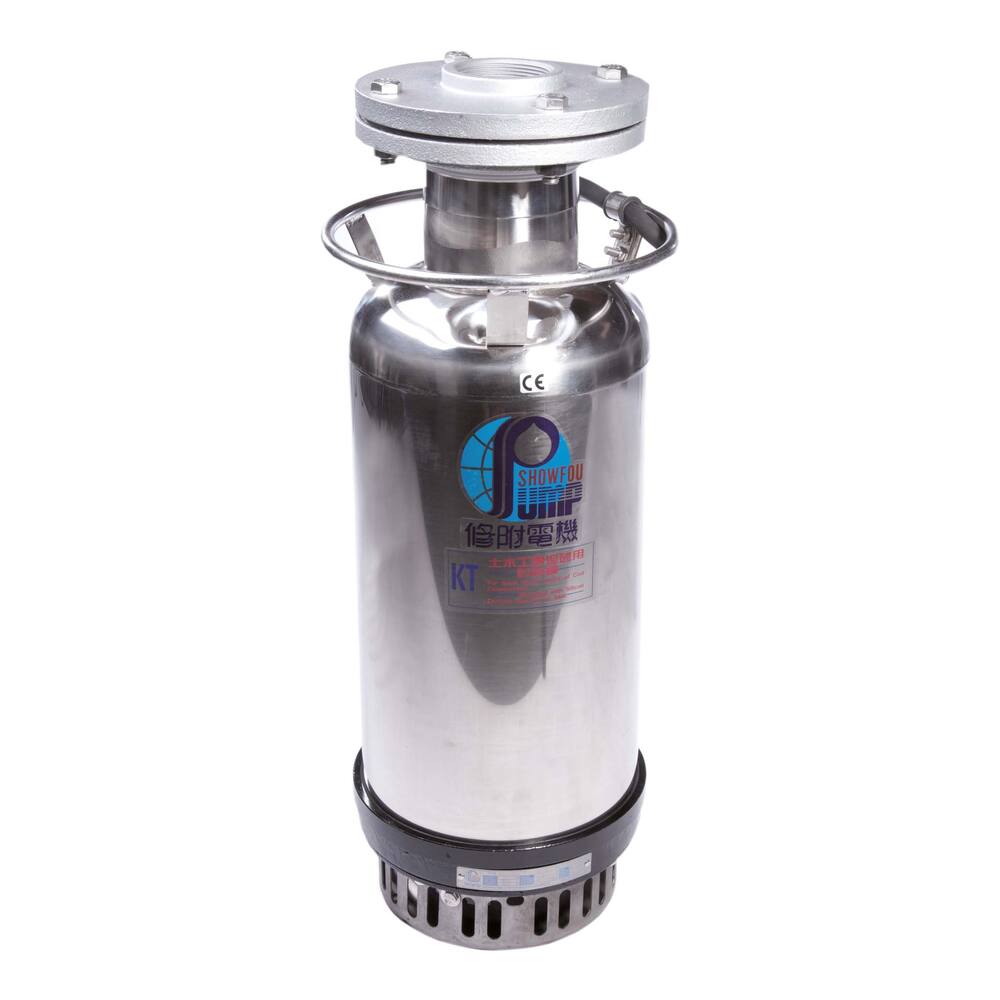

Ulex KS-332A (Showfou KS-332DE) Pump 400V With MSS
This robust cylinder pump is suitable for diverse applications such as inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It comes with a motor protection switch, ensuring a guarantee for reliability. It is also available in high capacity models perfect for salvaging vessels, offering professional quality at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: guaranteed with MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Performance at 10 metres head: 33,000 litres per hour
- Pumps down to: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 530 mm
- Weight: 42.0 kg
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.333
- Pipe diameter pressure: 4"
- Model: With motor protection switch (Guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 14.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 78,000 L/Hour
- Capacity at 5 meter: 63,000 L/hour
-
