The Ulex KS-232CN (Showfou KS-232CDE) 400V Without MSS is a durable stainless steel and black submersible centrifugal pump suitable for shipping, fisheries, construction, and dewatering. It features an open bronze impeller, oil-filled motor without thermal safeguard, and no guarantee without motor protection switch. It pumps 54,000 liters per hour with a maximum discharge head of 9.75 meters and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

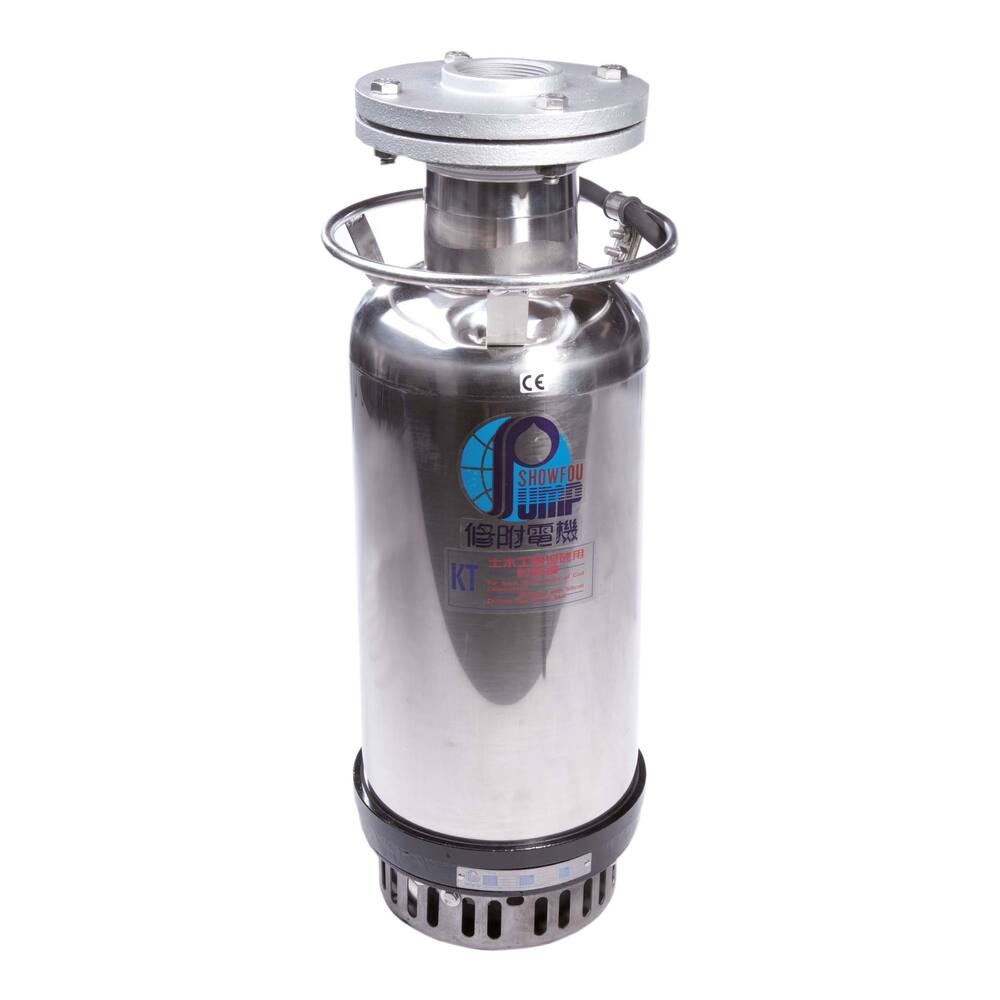

Ulex KS-232CN (Showfou KS-232CDE) Pump 400V Without MSS
This durable cylinder pump serves inland shipping, seagoing shipping, fisheries, construction, industry, and dewatering needs. It comes in large capacities suitable for salvaging vessels, delivering professional performance at a reasonable price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Minimum pumping depth: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 510 mm
- Weight: 33.0 kg
- Amperage: 400 V, 3.4 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug, without plug for 400 Volt
- Product code: 90.30.232
- Pipe diameter pressure: 4"
- Model: without motor protection switch (no guarantee)
- Medium: water
- Maximum particle size: 10 mm
- Maximum discharge head: 9.75 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 54,000 L/hour
- Capacity at 5 meter head: 42,000 L/hour
-
