ID
1317075
$ 2,261.33
1-2 weeks delivery time
-
+
The Ulex KS-332A (Showfou KS-332DE) 400V Without MSS is a sturdy stainless steel and black submersible centrifugal pump designed for demanding tasks in shipping, fisheries, construction, industry, and dewatering. It features an open bronze impeller, oil-filled motor without thermal safeguard, and no guarantee without a motor protection switch. It pumps 33,000 liters per hour at 10 meters head, handles contaminated water with solids up to 40°C, and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

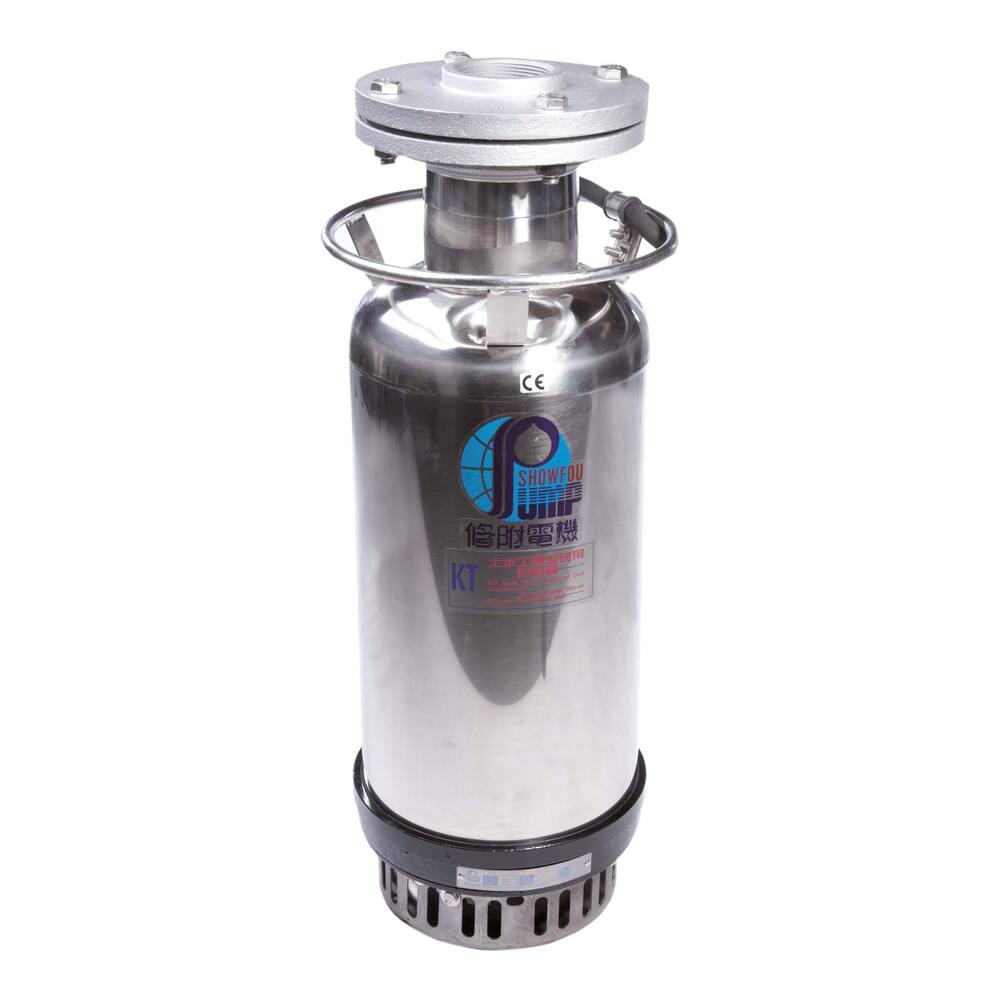

Ulex KS-332A (Showfou KS-332DE) Pump 400V Without MSS
Designed for demanding tasks in inland and seagoing shipping, fisheries, construction, industry, and dewatering, this sturdy cylinder pump excels in handling contaminated water with solids and acidity. Available in large capacity versions ideal for vessel salvage operations, it offers professional performance at a fair price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: no inbuilt thermal safeguard
- Guarantee: no guarantee without MSS
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: bronze
- Material impeller housing: cast iron
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Suitable liquids: contaminated water containing solids and high acidity, max. temperature 40°C
- Performance at 10 metres head: 33,000 litres per hour
- Pumps down to: 55 mm
- Connection: 4" internal thread
- Dimensions: diameter 228 mm, height 530 mm
- Weight: 42.0 kg
- Amperage: 5.2 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.332
- Pipe diameter pressure: 4"
- Model: Without motor protection switch (No guarantee)
- Medium: Water
- Particle size: 10 mm
- Maximum discharge head: 14.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 78,000 L/Hour
- Capacity at 5 meter: 63,000 L/hour
-
