ID
1317067
$ 1,151.16
1-2 weeks delivery time
-
+
The Ulex KS-112N (Showfou KS-112DE) 230V Without MSS is a robust stainless steel and black submersible centrifugal pump designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It features an open bronze impeller, oil-filled motor without thermal safeguard, and requires a motor protection switch for guarantee. It handles contaminated water with solids up to 40°C, pumps 9,000 liters per hour at 10 meters head, and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

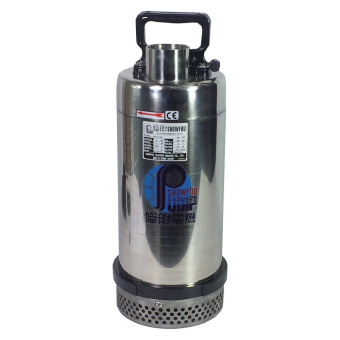

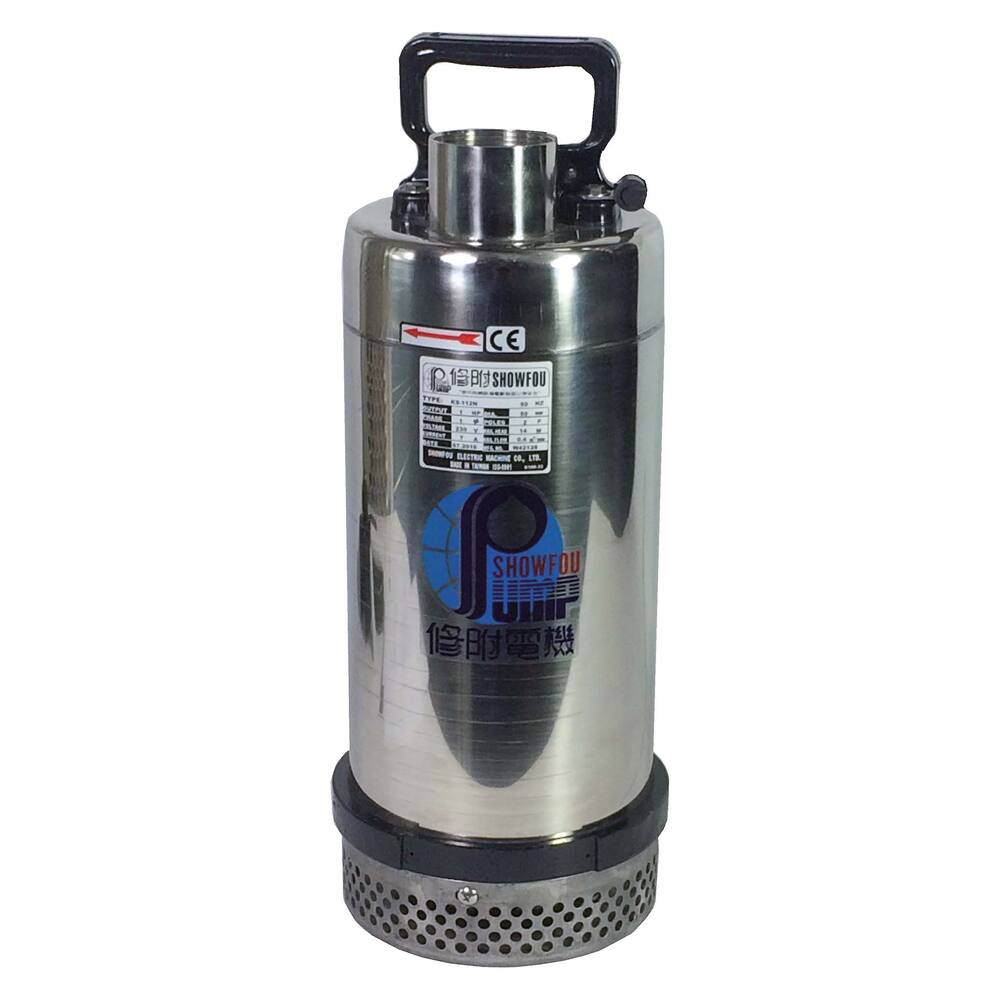

Ulex KS-112N (Showfou KS-112DE) 230V Without MSS
This robust cylinder pump is designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It is also available in larger capacities suitable for vessel salvage operations, offering professional quality at a fair price.
- Type: KS
- Colour: stainless steel with black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller made of bronze
- Motor type: oil-filled motor without inbuilt thermal safeguard fuse
- Guarantee: no guarantee without motor protection switch (MSS)
- Shaft seal: lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Impeller housing: cast iron
- Motor housing: stainless steel 304
- Pump shaft: stainless steel 304
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C
- Performance: 9,000 litres per hour at 10 metres head
- Minimum pumping size: 55 mm
- Connection: 2" internal thread
- Dimensions: diameter 175 mm, height 465 mm
- Weight: 23.0 kg
- Electrical: 230 V, 5.2 A amperage, 0.75 kW (1.0 hp), 2900 rpm shaft power
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.30.112
- Pipe diameter pressure: 2"
- Particle size: 6 mm
- Maximum discharge head: 12.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow (L/hour): 24,000
- Capacity at 5 meters (L/hour): 20,000
-
