ID
1317068
$ 1,478.99
1-2 weeks delivery time
-
+
The Ulex KS-112N (Showfou KS-112DE) 230V With MSS is a similar robust submersible centrifugal pump with stainless steel and black finish, designed for demanding environments including shipping and industry. It has an open bronze impeller, oil-filled motor, and includes a motor protection switch for guarantee. It pumps 9,000 liters per hour at 10 meters head, handles contaminated water with solids up to 40°C, and has a minimum pumping size of 55 mm.
- Description
- Ask a Question
-

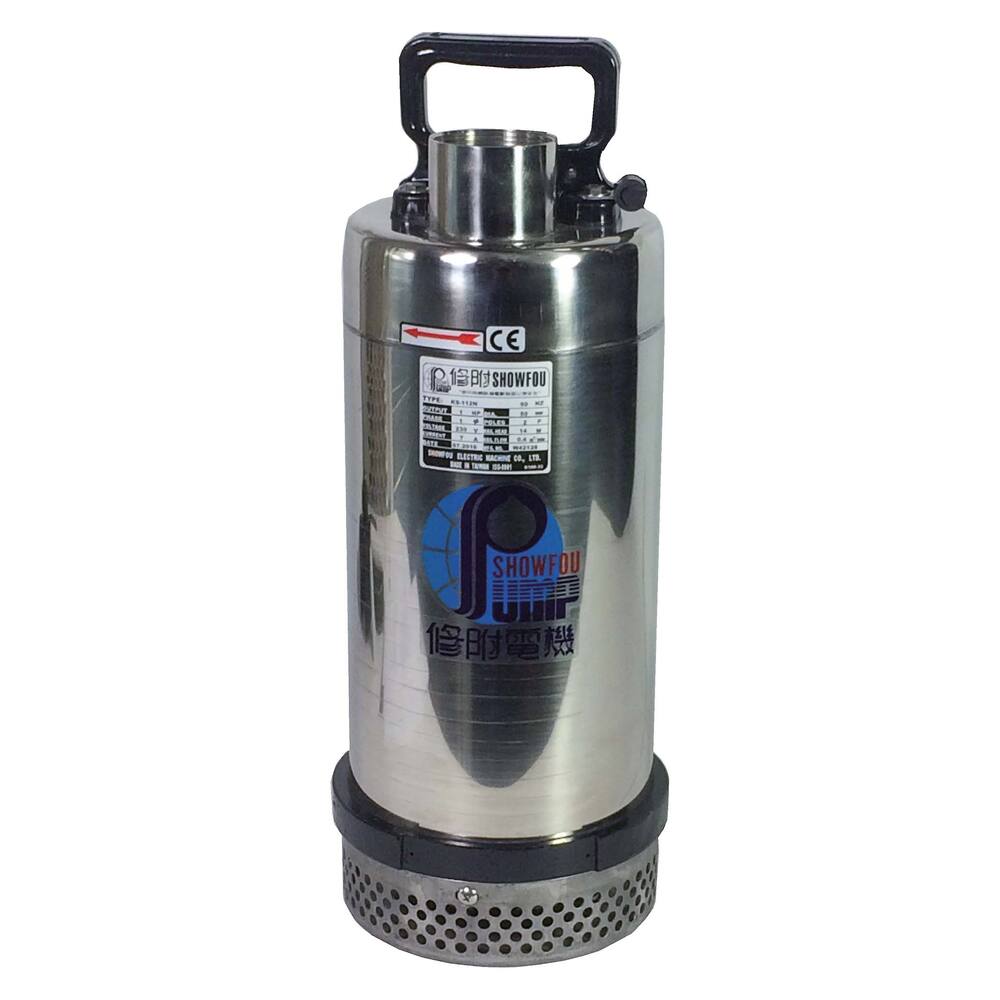

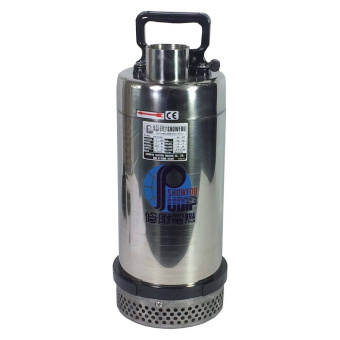

Ulex KS-112N (Showfou KS-112DE) 230V With MSS
This robust cylinder pump is designed to serve a wide range of demanding environments including inland and seagoing shipping, fisheries, construction, industry, and dewatering. It also offers larger capacity options ideal for vessel salvage operations, combining professional quality with affordability.
- Type: KS
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: Only with MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Bronze
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water with solids and high acidity, max. temperature 40°C
- Flow at 10 metres: 9,000 litres per hour
- Minimum pumping level: 55 mm
- Connection: 2" internal thread
- Dimensions: Diameter 175 mm, Height 465 mm
- Weight: 23.0 kg
- Electrical: 230 V, 5.2 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F, without plug
- Product code: 90.30.113
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Particle size capability: 6 mm
- Max discharge head: 12.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 24,000 L/hour
- Capacity at 5 meter: 20,000 L/hour
-
