ID
1317066
$ 775.81
1-2 weeks delivery time
-
+
The Ulex UB-125 delivers higher capacity pressurized water with microprocessor automation for space-constrained installations. Operating at 3,120 L/h with 230V AC power, its self-priming centrifugal pump with closed impeller provides pressure control between 2.2-3.2 bar for geyser and four tapping points.
- Description
- Ask a Question
-

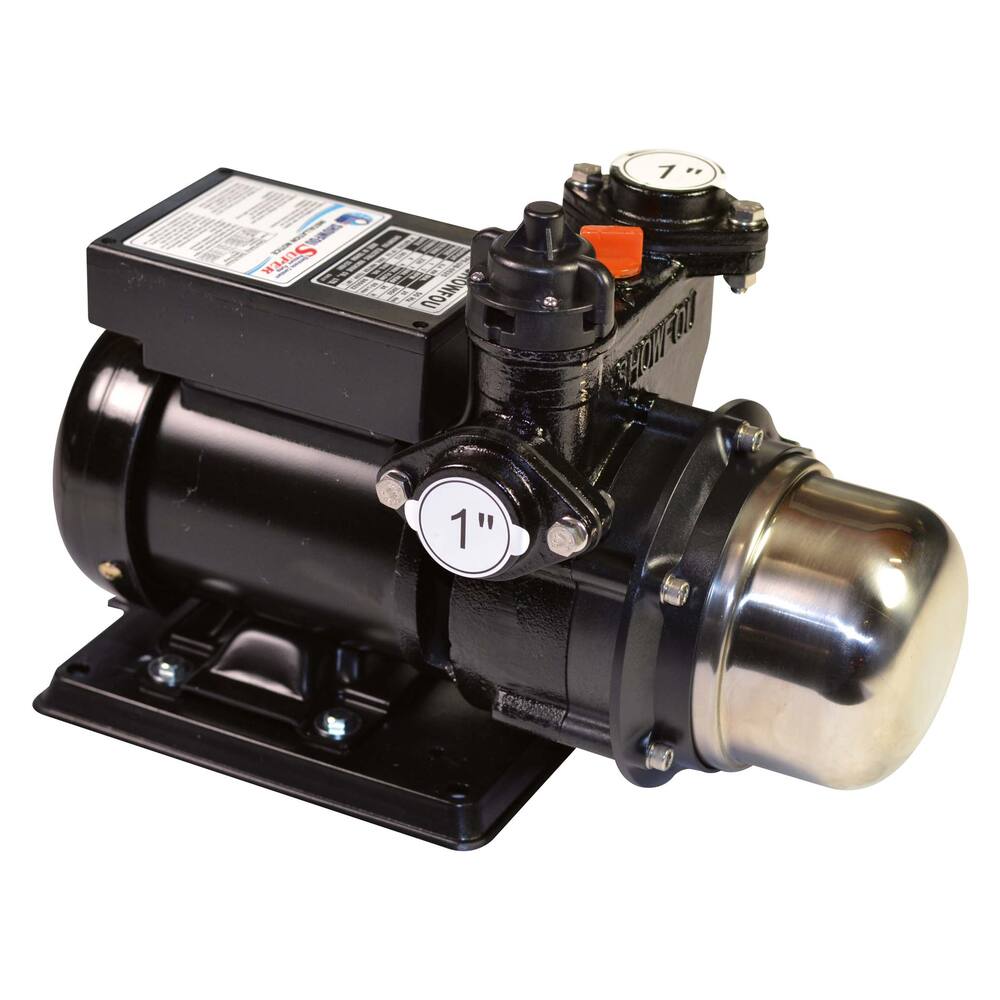

Compact Ulex Sensor-Pressurized Water System UB-125 (Showfou UB-125ES)
This compact pressurized water system operates automatically thanks to a unique microprocessor, delivering quiet and efficient water supply. It is particularly suited to tight installation spaces as it does not require a pressure tank. The pump activates upon opening a tap and stops when closed, featuring a built-in non-return valve for added reliability.
- Type: UB
- Colour: black with stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Fuse: built-in thermal protection
- Shaft seal: mechanical seal (ceramic on carbon)
- Material impeller: plastic
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Type pressure tank: membrane (built-in)
- Switch-on pressure: 2.2 bar: 3,120 litres per hour
- Switch-off pressure: 3.2 bar: 2,100 litres per hour
- Dimensions: LxWxH 457 x 188 x 261 mm
- Weight: 16.0 kg
- Current: 7.0 A
- Shaft power: 0.75 kW, 1.0 hp, 2,950 rpm
- Product code: 97.33.512
- Number of tapping points: Geyser and 4 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 32.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 3120
- Capacity at 5 meter (L/hour): 3120
-
