The Compact Ulex UB-0525 features microprocessor-controlled operation for quiet, automatic pressurized water delivery without requiring a separate pressure tank. Operating at 2,580 L/h with 230V AC power, its self-priming centrifugal pump with brushless motor provides consistent pressure between 1.6-2.0 bar for compact installations.
- Description
- Ask a Question
-

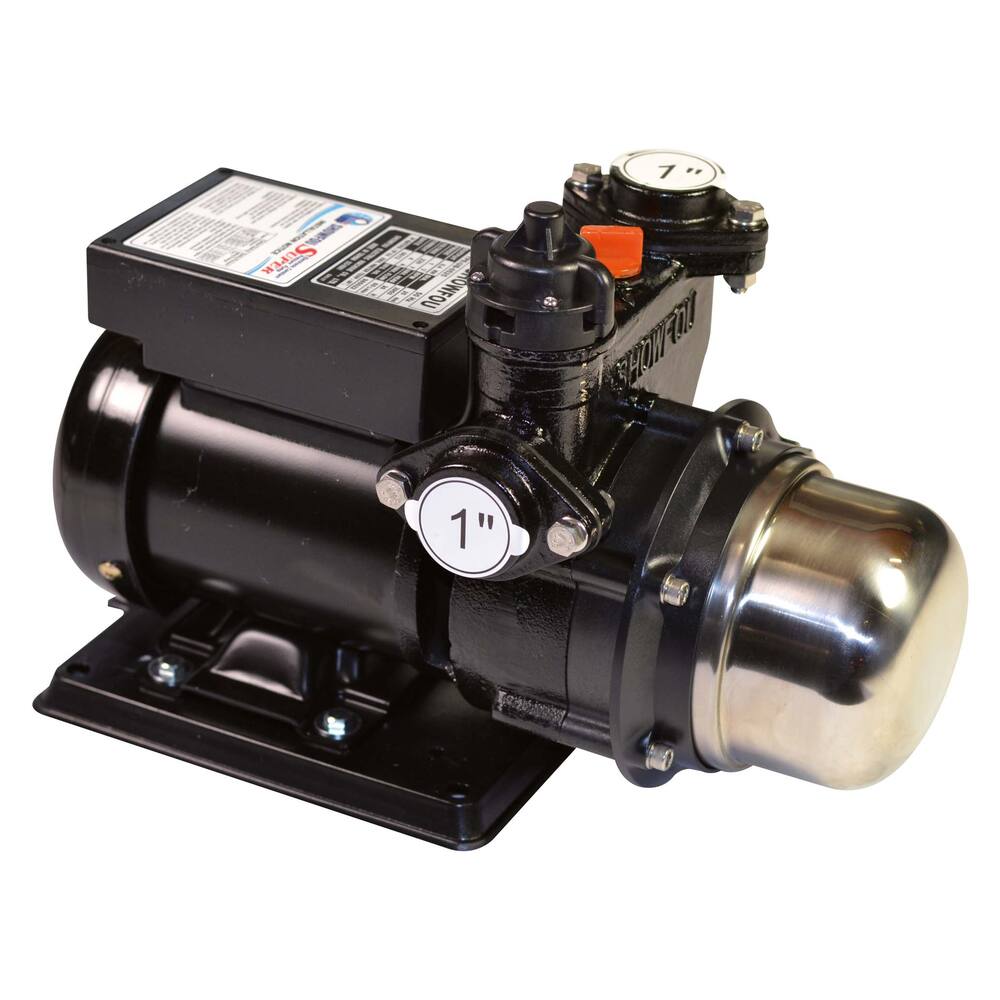

Compact Ulex Sensor-Pressurized Water System UB-0525 (Showfou UB-0525PES)
This automatic pressurized water system features a unique microprocessor for quiet operation, perfect for drinking water systems. Its compact design suits small spaces by eliminating the need for a pressure tank, with pump activation linked directly to tap use. It also includes a built-in non-return valve for convenience.
- Type: UB
- Colour: black with stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Fuse: built-in thermal protection
- Shaft seal: mechanical seal (ceramic on carbon)
- Material impeller: plastic
- Material pump housing: plastic
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Pressure tank type: membrane (built-in)
- Switch-on pressure: 1.6 bar at 2,580 litres per hour
- Switch-off pressure: 2.0 bar at 1,800 litres per hour
- Dimensions (LxWxH): 370 x 190 x 265 mm
- Weight: 11.0 kg
- Current: 4.0 A
- Shaft power: 0.4 kW, 0.5 hp, 2,850 rpm
- Product code: 97.33.505
- Number of tapping points: geyser and 2 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 20.0 m
- Voltage: 230 V AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/hour): 2,580
- Capacity at 5 meter (L/hour): 2,580
-
