The Stork Pump KGEF 20B-5 400 Volt is a robust self-priming centrifugal pump ideal for handling dirty water in demanding applications like bilge pumping and firefighting. It offers a steady flow rate of 27,500 liters per hour at heads up to 20 meters, with a maximum discharge head of 52 meters, constructed from cast iron or bronze with options for polyamide impellers, and powered by a 5.5 kW motor.
- Description
- Ask a Question
-

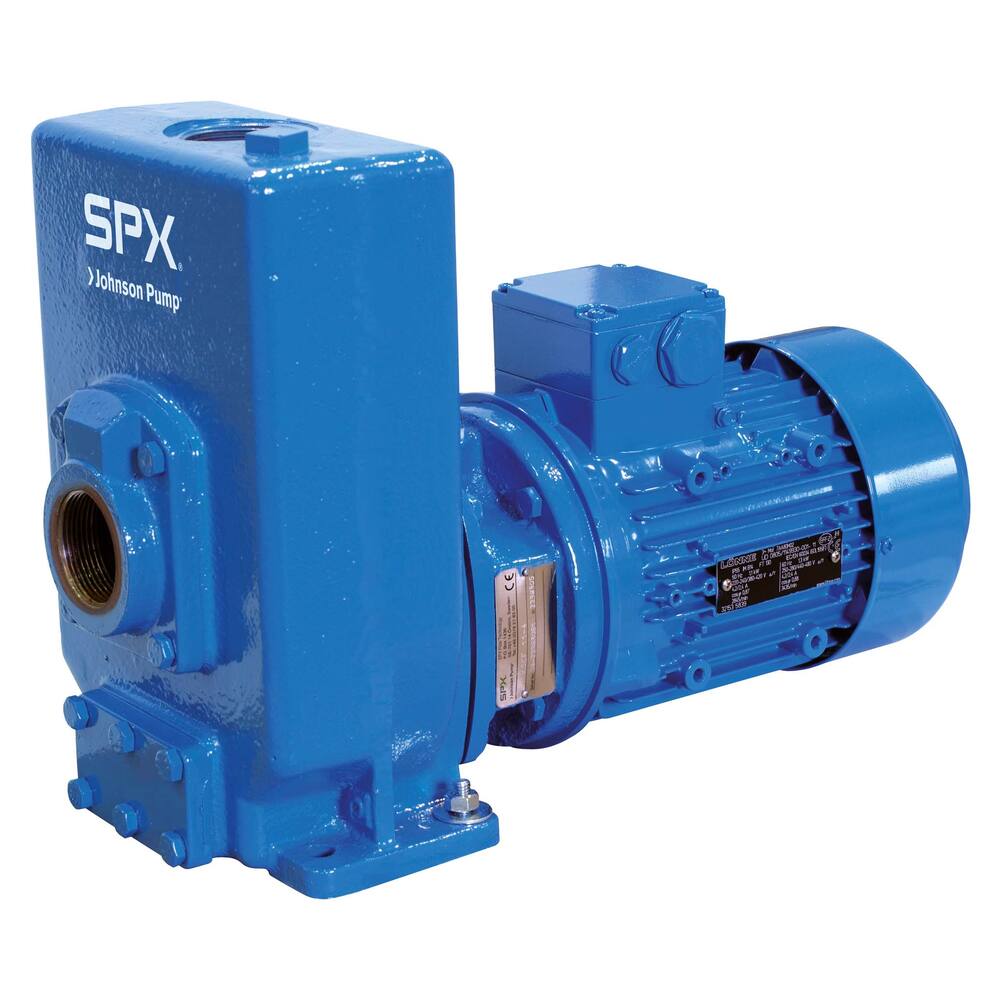

Stork Pump KGEF 20B-5 400 Volt
The Stork Pump KGEF 20B-5 is a trusted and robust self-priming centrifugal pump designed for handling dirty water. Ideal for applications such as bilge pumping, deck washing, dewatering, sprinkling, and fire extinguishing, this pump offers reliable performance across various demanding tasks.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller (closed cast iron impeller standard)
- Motor type: short circuit motor for 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze available on request), also polyamide 11-3 and 11-4
- Material pump housing: cast iron (bronze available on request)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids including water, sea water, diesel, gas oil and fuel oil (max temperature +95°C)
- Capacity at various heads:
- 10 m: 27,500 litres/hour
- 15 m: 27,500 litres/hour
- 20 m: 27,500 litres/hour
- 25 m: 26,000 litres/hour
- 30 m: 24,000 litres/hour
- 35 m: 22,500 litres/hour
- 40 m: 19,000 litres/hour
- 45 m: 16,000 litres/hour
- 50 m: 9,000 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 730 x 320 x 460 mm
- Weight: 135 kg
- Amperage: 11.0 A+
- Shaft power: 5.5 kW, 7.5 hp, 2850 rpm
- Product code: 92.05.205
- Suction head: 6.7 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 4 mm
- Discharge head max: 52.0 m
- Voltage: 400 V, Current: AC, Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 27,500 L/hour
- Capacity at 5 meter: 27,500 L/hour
- Notes:
- Complete Ni-resist impeller available on request
- Check amperage on motor nameplate at startup due to motor differences
-
