The Stork KGE 15-6 pump is also a right-hand rotation, self-priming centrifugal pump widely used on ships for bilge and deck washing, industrial service, and agricultural sprinkling. It has an open impeller, ceramic on carbon mechanical seal, and is constructed from cast iron, bronze, and chromed steel. It handles contaminated liquids up to 95°C, with capacities from 8,000 to 52,000 liters per hour at various heads, and features 2.1/2" internal thread connections .
- Description
- Ask a Question
-

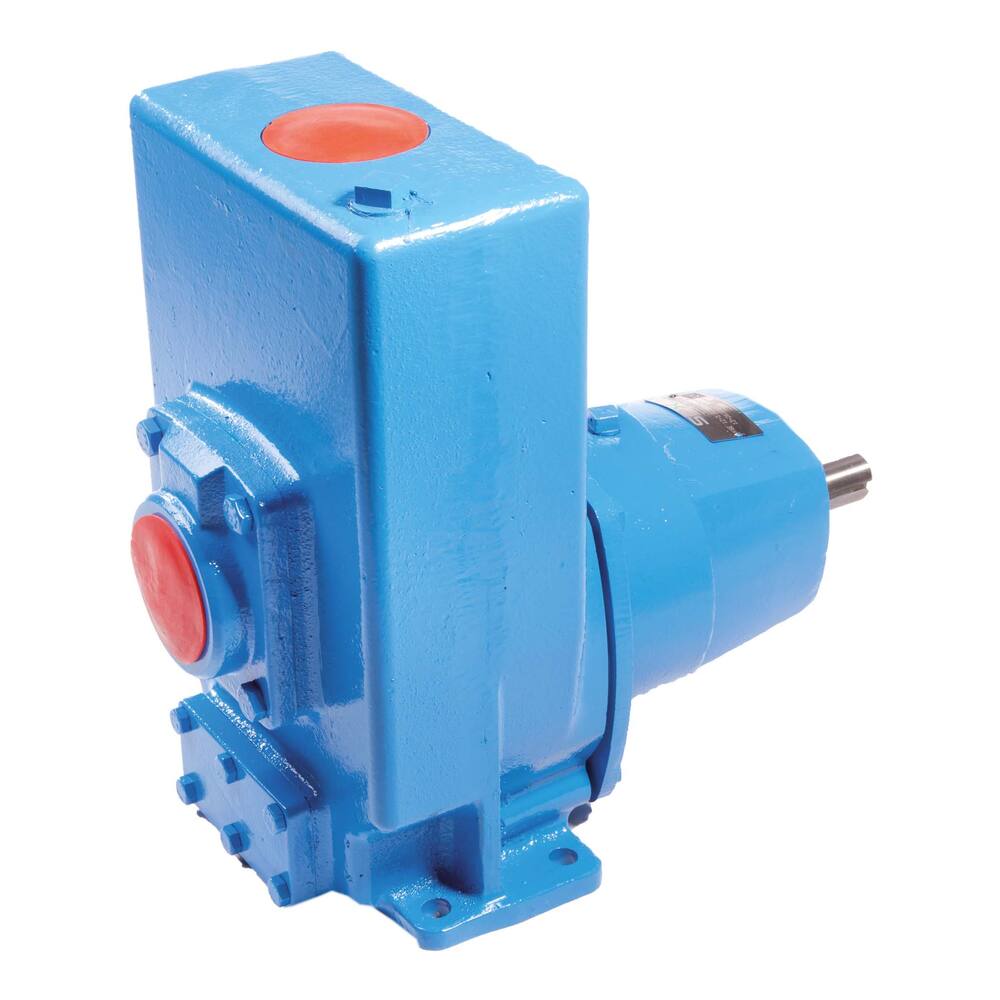

Stork KGE 15-6 - Right-Hand Rotation Pump
This pump is frequently employed on ships for bilge and deck washing. It is also well suited as a general service pump in industrial environments or as a sprinkling pump in agriculture.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Suitable liquids: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (maximum temperature +95°C)
- Capacity at 10 metres head: 52,000 litres per hour
- Capacity at 15 metres head: 44,000 litres per hour
- Capacity at 20 metres head: 34,000 litres per hour
- Capacity at 25 metres head: 24,000 litres per hour
- Capacity at 30 metres head: 8,000 litres per hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 415 x 247 x 380 mm
- Weight: 40 kg
- Shaft diameter: 24 mm
- Shaft power: 4.0 kW, 5 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.012
- Suction head: 7.5 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Max discharge head: 32.0 m
- Free flow: 52,000 L/hour
- Capacity at 5 metres: 52,000 L/hour
-
