The Stork Pump KGEF 16-6 400 Volt is a high-performance self-priming centrifugal pump designed for demanding dirty water and contaminated liquid tasks. It delivers flow rates up to 58,000 liters per hour at 5 meters head, powered by a 5.5 kW motor, constructed with durable cast iron or bronze materials, and handles liquids up to 95°C, making it suitable for bilge, firefighting, and dewatering applications.
- Description
- Ask a Question
-

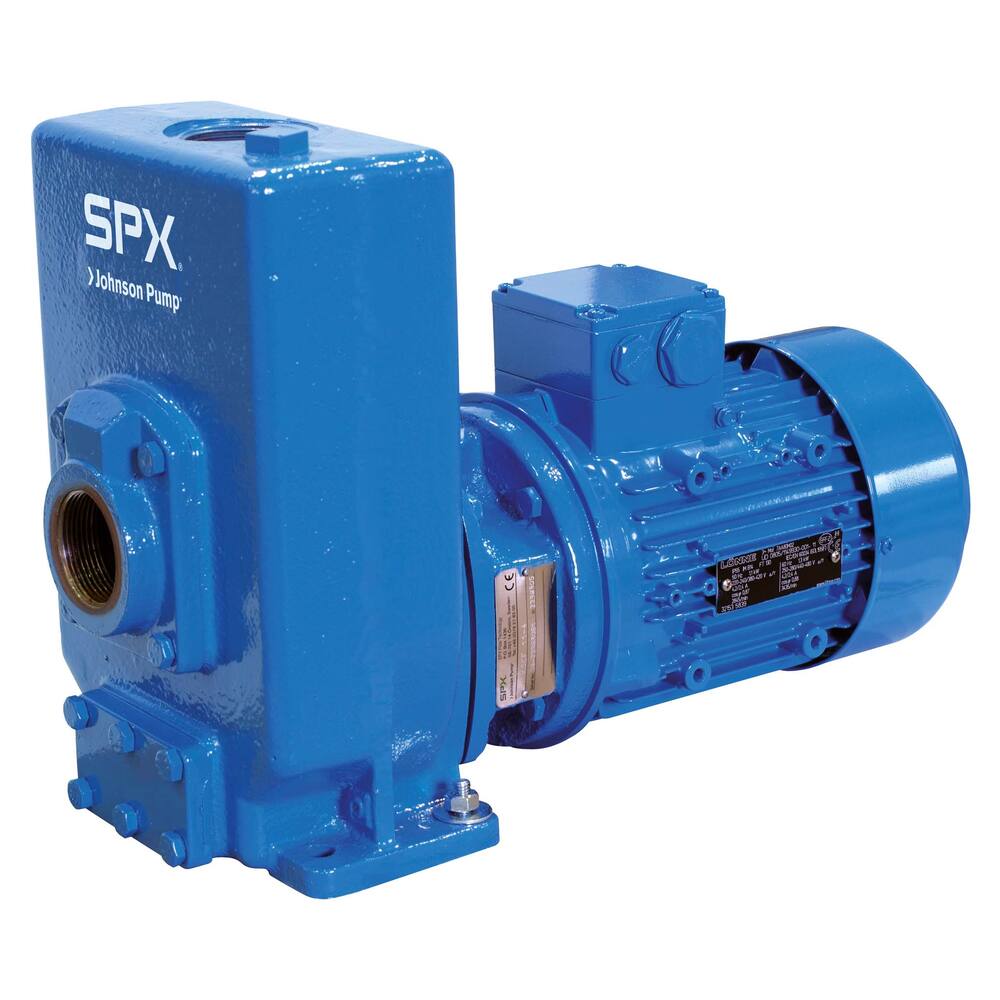

Stork Pump KGEF 16-6 400 Volt
This well-engineered self-priming centrifugal pump excels in moving dirty water and contaminated liquids. Suitable for bilge, deck wash, dewatering, sprinkling, and fire suppression, it delivers high flow rates with durable construction.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller (open cast iron impeller)
- Motor type: short circuit motor for 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze available on request)
- Material pump housing: cast iron (bronze available on request)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance by head:
- 10 m head: 58,000 litres/hour
- 15 m head: 58,000 litres/hour
- 20 m head: 50,000 litres/hour
- 25 m head: 40,000 litres/hour
- 30 m head: 30,000 litres/hour
- 35 m head: 17,000 litres/hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 626 x 247 x 380 mm
- Weight: 107 kg
- Amperage: 11.0 A+
- Shaft power: 5.5 kW, 7.5 hp, 2850 rpm
- Product code: 92.05.166
- Suction head: 6.5 m
- Pipe diameter pressure and suction: 2.1/2"
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size: 12 mm
- Max discharge head: 37.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 58,000 L/hour
- Capacity at 5 meter: 58,000 L/hour
- Notes:
- Complete Ni-resist available on request
- Check amperage on motor's nameplate at start-up due to possible small differences
-
