The Stork KGE 12-5 pump is designed for frequent use in shipping as a bilge and deck wash pump and is also suitable for industrial and agricultural tasks. It is a self-priming centrifugal pump that handles contaminated liquids up to 95°C, with a maximum capacity of 34,000 liters per hour at 5 meters head and a shaft power of 2.2 kW.
- Description
- Ask a Question
-

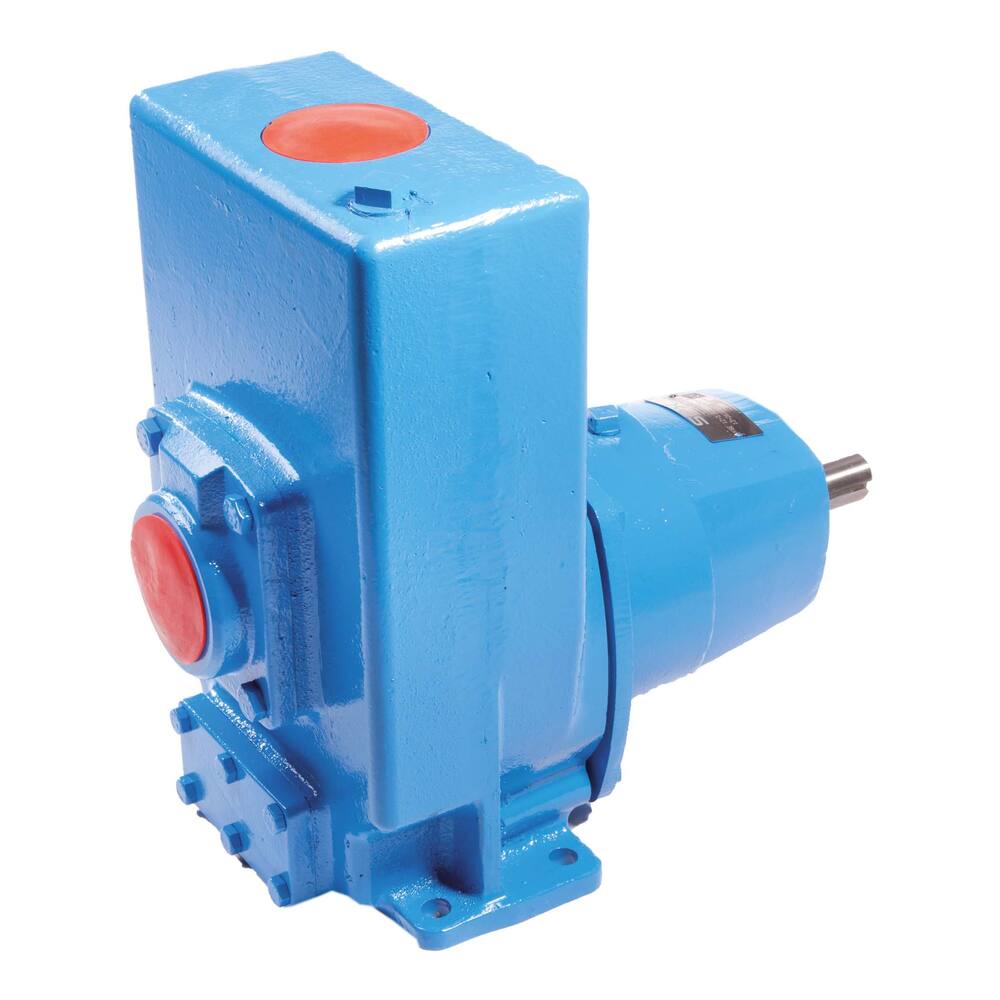

Stork KGE 12-5 - Right-Hand Rotation Pump
Designed for frequent use in shipping as bilge and deck wash pump, this model is also suitable as a general service pump in industry or for agricultural sprinkling tasks.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 30,000 litres per hour
- 15 metres head: 20,000 litres per hour
- 20 metres head: 8,000 litres per hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 393 x 225 x 350 mm
- Weight: 30 kg
- Shaft diameter: 24 mm
- Shaft power: 2.2 kW, 3 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.007
- Suction head: 7.8 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size handled: 13 mm
- Discharge head Max.: 22.0 m
- Free flow: 34,000 L/hour
- Capacity at 5 meter head: 34,000 L/hour
-
