The Stork KGE 14-8 is a right-hand rotation, self-priming centrifugal pump commonly used on ships for bilge and deck washing, as well as in industrial and agricultural settings. It features an open impeller, ceramic on carbon mechanical seal, and is made from materials like cast iron, bronze, and chromed steel. It handles contaminated liquids such as seawater and fuel oil up to 95°C, with a capacity ranging from 27,000 to 83,000 liters per hour depending on the head, and has an 80 mm flange connection .
- Description
- Ask a Question
-

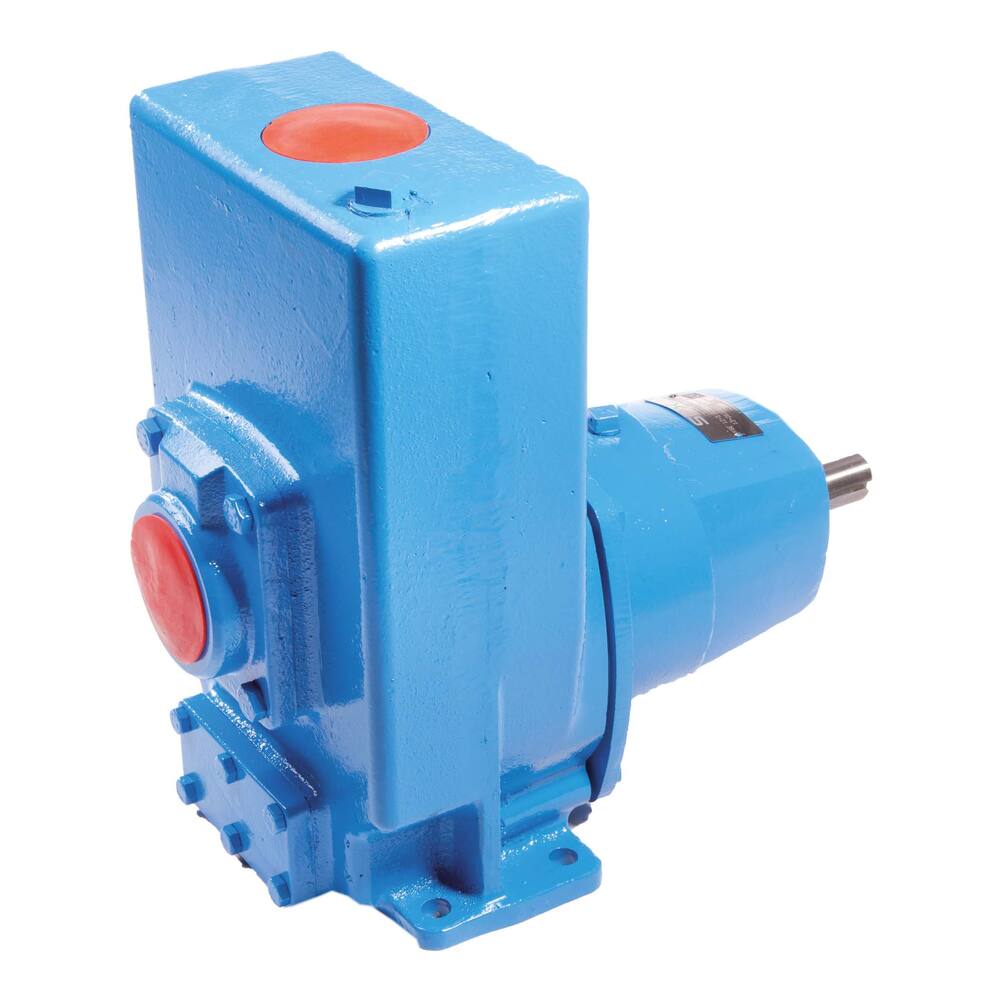

Stork KGE 14-8 - Right-Hand Rotation Pump
This pump is commonly utilized on ships as a bilge and deck wash pump. It also serves well as a general service pump in industrial settings or as a sprinkling pump in agriculture.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Suitable liquids: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (maximum temperature +95°C)
- Capacity at 10 metres head: 78,000 litres per hour
- Capacity at 15 metres head: 58,000 litres per hour
- Capacity at 20 metres head: 27,000 litres per hour
- Connections: 80 mm flange connection
- Dimensions (LxWxH): 430 x 255 x 375 mm
- Weight: 46 kg
- Shaft diameter: 24 mm
- Shaft power: 4.0 kW, 5.5 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.011
- Suction head: 7.3 m
- Pipe diameter pressure: 80 mm Flange
- Pipe diameter suction: 80 mm Flange
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Max discharge head: 22.0 m
- Free flow: 83,000 L/hour
- Capacity at 5 metres: 83,000 L/hour
-
