The Stork Pump KGEF 18-4 400 Volt is a durable self-priming centrifugal pump designed for dirty water and contaminated liquids, suitable for bilge, deck wash, dewatering, sprinkling, and firefighting. It features cast iron or bronze materials, a ceramic on carbon mechanical seal, and delivers a consistent flow of up to 18,000 liters per hour at heads up to 20 meters, with a maximum discharge head of 40.5 meters powered by a 4.0 kW motor.
- Description
- Ask a Question
-

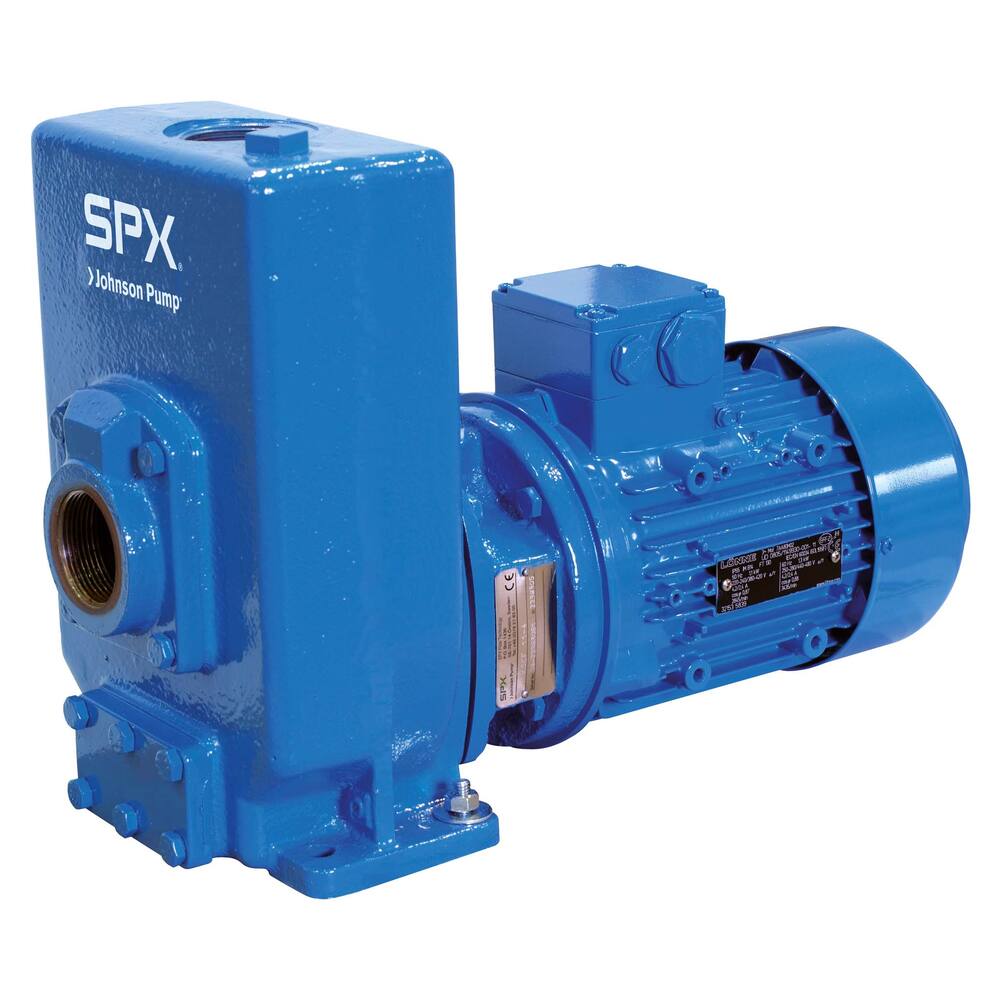

Stork Pump KGEF 18-4 400 Volt
This durable self-priming centrifugal pump is designed for dirty water and contaminated liquids, offering reliable performance for bilge, deck wash, dewatering, sprinkling, and fire extinguishing applications.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller (closed cast iron impeller)
- Motor type: short circuit motor for 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze available on request)
- Material pump housing: cast iron (bronze available on request)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance by head:
- 10 m head: 18,000 litres/hour
- 15 m head: 18,000 litres/hour
- 20 m head: 18,000 litres/hour
- 25 m head: 15,500 litres/hour
- 30 m head: 12,500 litres/hour
- 35 m head: 9,000 litres/hour
- 40 m head: 3,500 litres/hour
- Connections: 1.1/2" internal thread
- Dimensions (LxWxH): 650 x 265 x 370 mm
- Weight: 100 kg
- Amperage: 4.7 A+
- Shaft power: 4.0 kW, 5.5 hp, 2850 rpm
- Product code: 92.05.184
- Suction head: 6.5 m
- Pipe diameter pressure and suction: 1.1/2"
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size: 6 mm
- Max discharge head: 40.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 18,000 L/hour
- Capacity at 5 meter: 18,000 L/hour
- Notes:
- Complete Ni-resist available on request
- Check amperage on motor's nameplate at start-up due to possible small differences
-
