ID
1317162
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Stork KGE 12B-5 pump is commonly used in maritime settings for bilge and deck washing, as well as in industry and agriculture for sprinkling. It features a self-priming centrifugal design, handles contaminated liquids up to 95°C, and offers a maximum flow of 25,000 liters per hour at 5 meters head with a 1.5 kW motor.
- Description
- Ask a Question
-

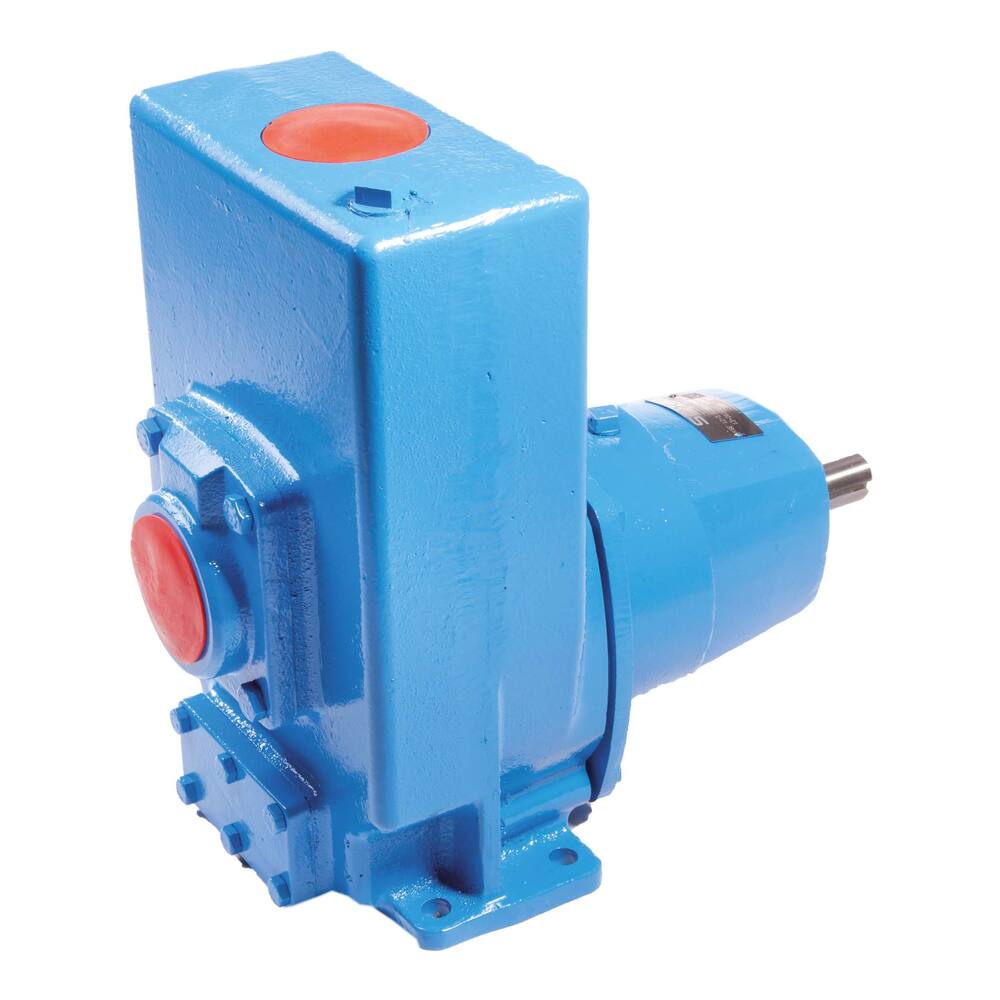

Stork KGE 12B-5 - Right-Hand Rotation Pump
This pump is commonly employed in maritime settings as a bilge and deck wash pump. It also serves well as a versatile service pump in various industries or functions as a sprinkling pump in agricultural applications.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 24,000 litres per hour
- 15 metres head: 16,000 litres per hour
- 20 metres head: 4,000 litres per hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 393 x 225 x 350 mm
- Weight: 30 kg
- Shaft diameter: 24 mm
- Shaft power: 1.5 kW, 2 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.005
- Suction head: 7.8 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size handled: 13 mm
- Discharge head Max.: 21.0 m
- Free flow: 25,000 L/hour
- Capacity at 5 meter head: 25,000 L/hour
-
