The Stork KGE 11-3 is a right-hand rotation self-priming centrifugal pump ideal for maritime uses like bilge and deck washing, as well as industrial and agricultural applications. It efficiently handles contaminated liquids including seawater and oils, with a capacity of up to 13,500 liters per hour at 5 meters head and a power rating of 0.75 kW.
- Description
- Ask a Question
-

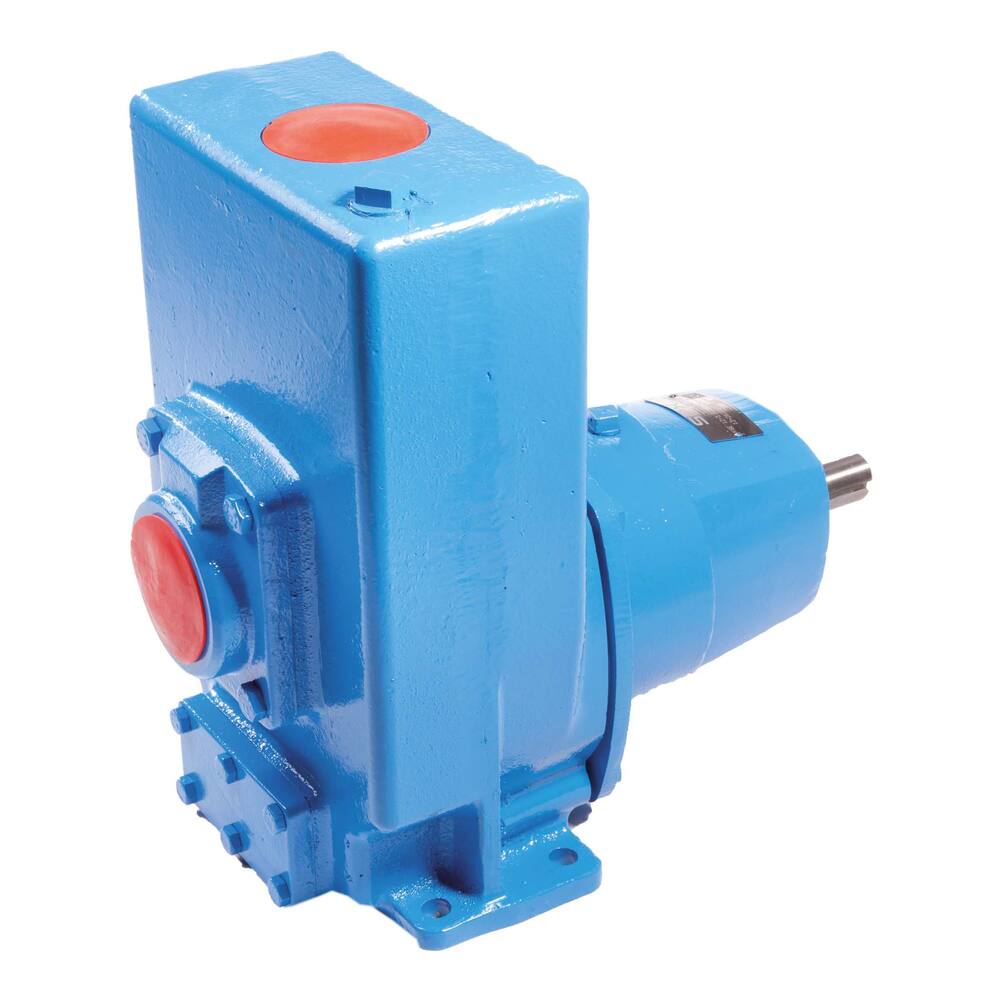

Stork KGE 11-3 - Right-Hand Rotation Pump
This right-hand rotation pump from the KGE series is well-suited for maritime applications such as bilge and deck washing, as well as general industrial service and agricultural sprinkling. It handles contaminated liquids efficiently, including seawater and various oils, with a robust design that ensures reliable performance.
- Type: KGE
- Colour: Blue
- Pump type: Self-priming centrifugal pump
- Impeller type: POLYAMIDE open impeller
- Rotation direction: Right-hand rotation
- Shaft seal: Ceramic on carbon mechanical seal
- Material impeller: Cast iron or bronze (available on request, also completely Ni-Resist)
- Material: Bronze for 29Nb 15
- Material pump housing: Cast iron or bronze
- Material pump shaft: Chromed steel
- Suitable liquids: Contaminated liquids including water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 11,000 litres per hour
- 15 metres head: 3,500 litres per hour
- Free flow: 13,500 L/hour
- Capacity at 5 meters: 13,500 L/hour
- Connections: 1.1/4" internal thread
- Dimensions (lxwxh): 308 x 190 x 255 mm
- Weight: 15 kg
- Shaft diameter: 16 mm
- Shaft power: 0.75 kW, 1 hp at 2900 rpm
- Speed range: 2800 to 3000 rpm
- Product code: 95.30.001
- Suction head: 8.4 m
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 7 mm
- Discharge head max.: 15.5 m
-
