The Stork KGE 12-6 pump is ideal for shipping, industrial service, and agricultural sprinkling, featuring a self-priming centrifugal design with right-hand rotation. It handles contaminated liquids up to 95°C, delivering up to 50,000 liters per hour at 5 meters head, powered by a 3.0 kW motor.
- Description
- Ask a Question
-

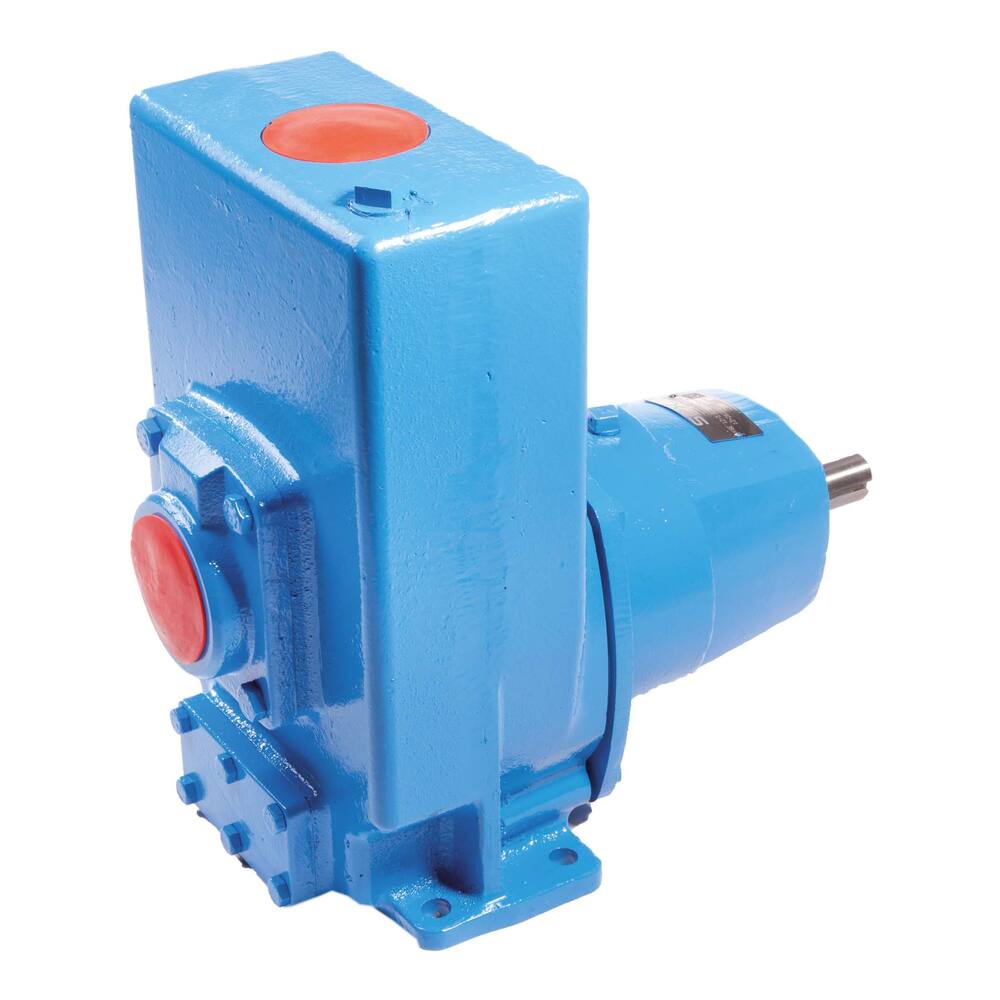

Stork KGE 12-6 - Right-Hand Rotation Pump
Ideal for use in shipping as a bilge and deck wash pump, this model also fits general industrial service needs and agricultural sprinkling applications.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 50,000 litres per hour
- 15 metres head: 32,000 litres per hour
- 20 metres head: 12,000 litres per hour
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 434 x 225 x 360 mm
- Weight: 40 kg
- Shaft diameter: 24 mm
- Shaft power: 3.0 kW, 4 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.009
- Suction head: 8.1 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size handled: 20 mm
- Discharge head Max.: 23.0 m
- Free flow: 50,000 L/hour
- Capacity at 5 meter head: 50,000 L/hour
-
