The Stork KGE 11-4 pump is a robust self-priming centrifugal pump designed for shipping, industry, and agriculture, capable of handling larger particles and higher flow rates. It manages contaminated liquids up to 95°C, delivering up to 19,500 liters per hour at 5 meters head with a shaft power of 1.1 kW.
- Description
- Ask a Question
-

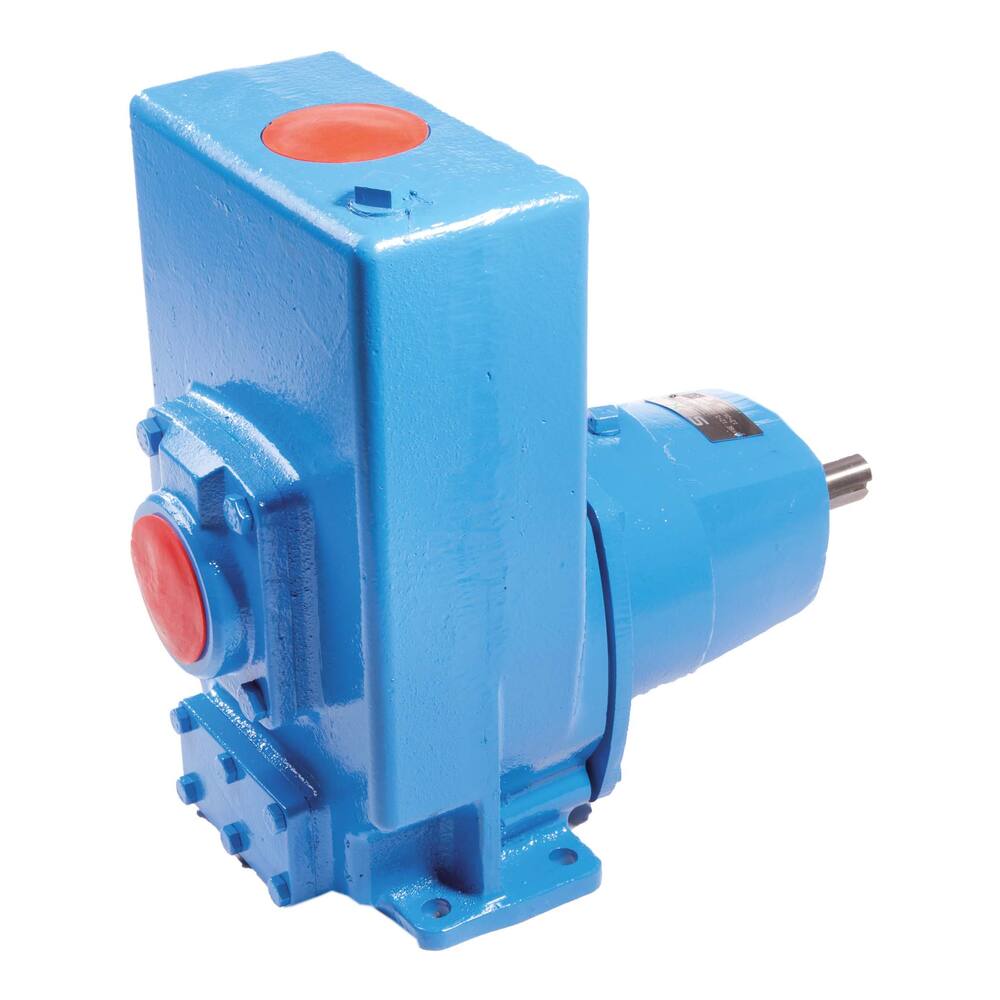

Stork KGE 11-4 - Right-Hand Rotation Pump
The KGE 11-4 pump is a powerful self-priming centrifugal pump designed for use in shipping, industry, and agriculture. It is capable of handling larger particle sizes and higher flow rates, making it ideal for demanding applications involving contaminated liquids up to 95°C.
- Type: KGE
- Colour: Blue
- Pump type: Self-priming centrifugal pump
- Impeller type: POLYAMIDE open impeller
- Rotation direction: Right-hand rotation
- Shaft seal: Ceramic on carbon mechanical seal
- Material impeller: Cast iron or bronze (available on request, also completely Ni-Resist)
- Material: Bronze for 29Nb 15
- Material pump housing: Cast iron or bronze
- Material pump shaft: Chromed steel
- Suitable liquids: Contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (maximum temperature +95°C)
- Performance:
- 10 metres head: 18,000 litres per hour
- 15 metres head: 7,000 litres per hour
- Free flow: 19,500 L/hour
- Capacity at 5 meters: 19,500 L/hour
- Connections: 1.1/2" internal thread
- Dimensions (lxwxh): 325 x 190 x 290 mm
- Weight: 17 kg
- Shaft diameter: 16 mm
- Shaft power: 1.1 kW, 1.45 hp at 2900 rpm
- Speed range: 2800 to 3000 rpm
- Product code: 95.30.003
- Suction head: 8.4 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 12 mm
- Discharge head max.: 17.5 m
-
