The Stork Pump KGEF 15-6 400 Volt is a reliable self-priming centrifugal pump built for tough dirty water applications such as bilge pumping and firefighting. It provides a versatile performance with flow rates ranging from 8,000 to 52,000 liters per hour depending on head, powered by a 4.0 kW motor, and made from cast iron or bronze materials, suitable for contaminated liquids up to 95°C.
- Description
- Ask a Question
-

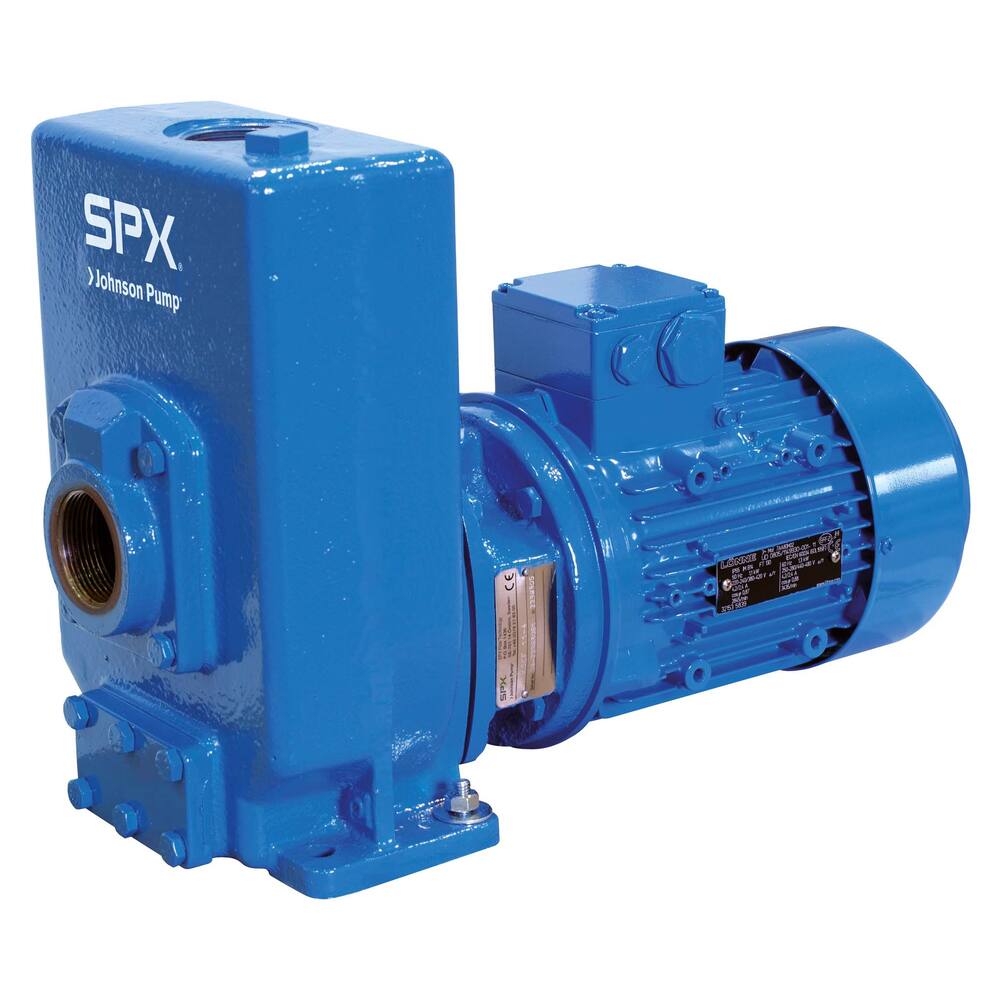

Stork Pump KGEF 15-6 400 Volt
Designed for tough use with dirty water, this self-priming centrifugal pump performs reliably in bilge pumping, deck washing, dewatering, sprinkling, and firefighting tasks.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller
- Motor type: short circuit motor for 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze)*
- Material pump housing: cast iron (bronze)*
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 52,000 litres per hour
- 15 metres head: 44,000 litres per hour
- 20 metres head: 34,000 litres per hour
- 25 metres head: 24,000 litres per hour
- 30 metres head: 8,000 litres per hour
- Impeller type: open cast iron impeller
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 583 x 247 x 380 mm
- Weight: 80 kg
- Amperage: 8.1 A+
- Shaft power: 4.0 kW, 5.5 hp, 2850 rpm
- Product code: 92.05.156
- Suction head: 7.5 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 11 mm
- Max discharge head: 32.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Free flow: 52,000 L/hour
- Capacity at 5 meter: 52,000 L/hour
- Available on request: bronze or complete Ni-resist materials
- Note: Always check amperage on motor's nameplate as small differences may occur between motors.
-
