The Stork Pump KGEF 14-8 400 Volt is a well-engineered self-priming centrifugal pump designed for tough dirty water conditions, including bilge and firefighting tasks. It delivers a high flow rate of up to 83,000 liters per hour at 5 meters head, powered by a 4.0 kW motor, and constructed with durable cast iron or bronze materials, handling contaminated liquids up to 95°C.
- Description
- Ask a Question
-

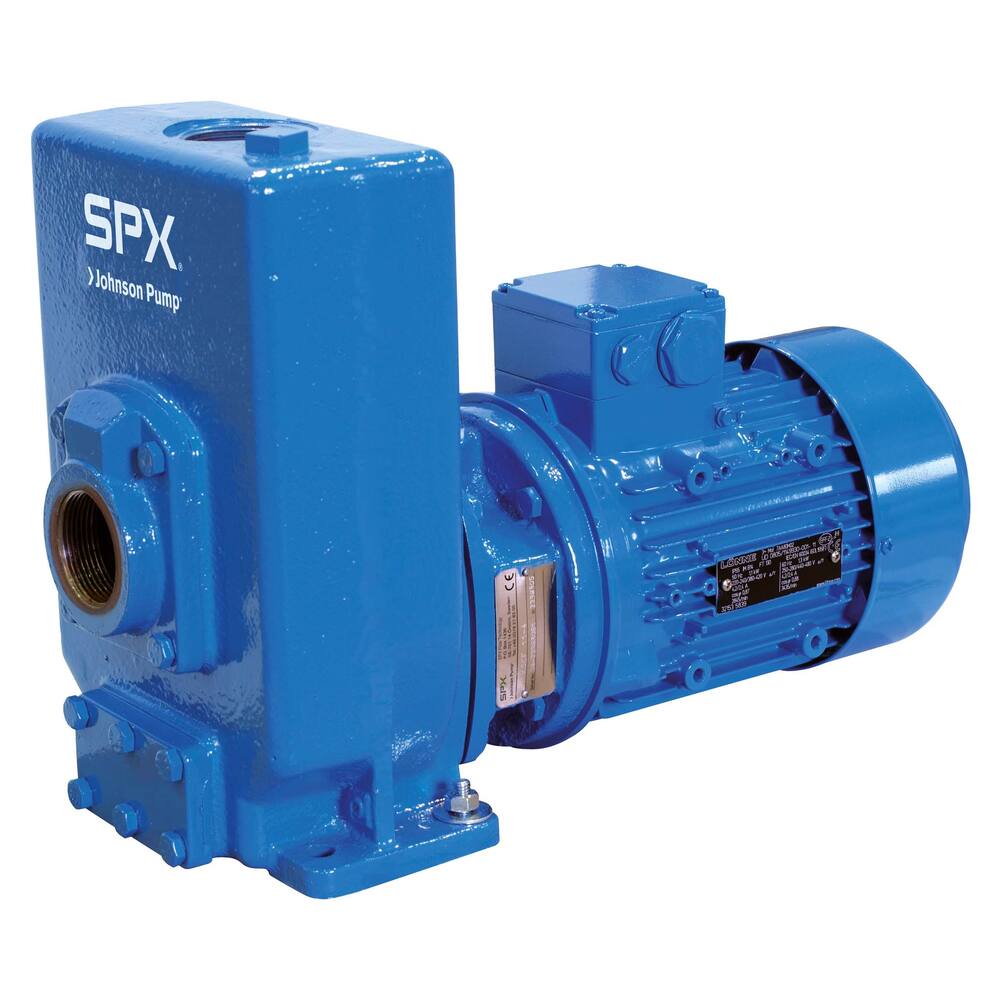

Stork Pump KGEF 14-8 400 Volt
This well-engineered self-priming centrifugal pump is suitable for handling dirty water in demanding conditions. It is perfect for bilge, deck wash, dewatering, sprinkling, and firefighting purposes.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller
- Motor type: short circuit motor 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze)*
- Material pump housing: cast iron (bronze)*
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids including water, sea water, diesel, gas oil and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 78,000 litres per hour
- 15 metres head: 58,000 litres per hour
- 20 metres head: 27,000 litres per hour
- Impeller type: open cast iron impeller
- Dimensions (LxWxH): 596 x 255 x 375 mm
- Weight: 86 kg
- Amperage: 11.0 A+
- Shaft power: 4.0 kW, 5.5 hp, 2850 rpm
- Product code: 92.05.148
- Suction head: 7.3 m
- Pipe diameter pressure: 80 mm Flange
- Pipe diameter suction: 80 mm Flange
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Max discharge head: 22.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Free flow: 83,000 L/hour
- Capacity at 5 meter: 83,000 L/hour
- Available on request: bronze or complete Ni-resist materials
- Note: Always check amperage on motor's nameplate as small differences may occur between motors.
-
