The Stork Pump KGEF 12-6 400 Volt is a robust self-priming centrifugal pump ideal for efficiently handling dirty water in applications like bilge pumping, deck washing, and firefighting. It offers a higher flow rate than the 12-5 model, with up to 50,000 liters per hour at 5 meters head, powered by a 3.0 kW motor, and constructed with cast iron or bronze materials, suitable for contaminated liquids up to 95°C.
- Description
- Ask a Question
-

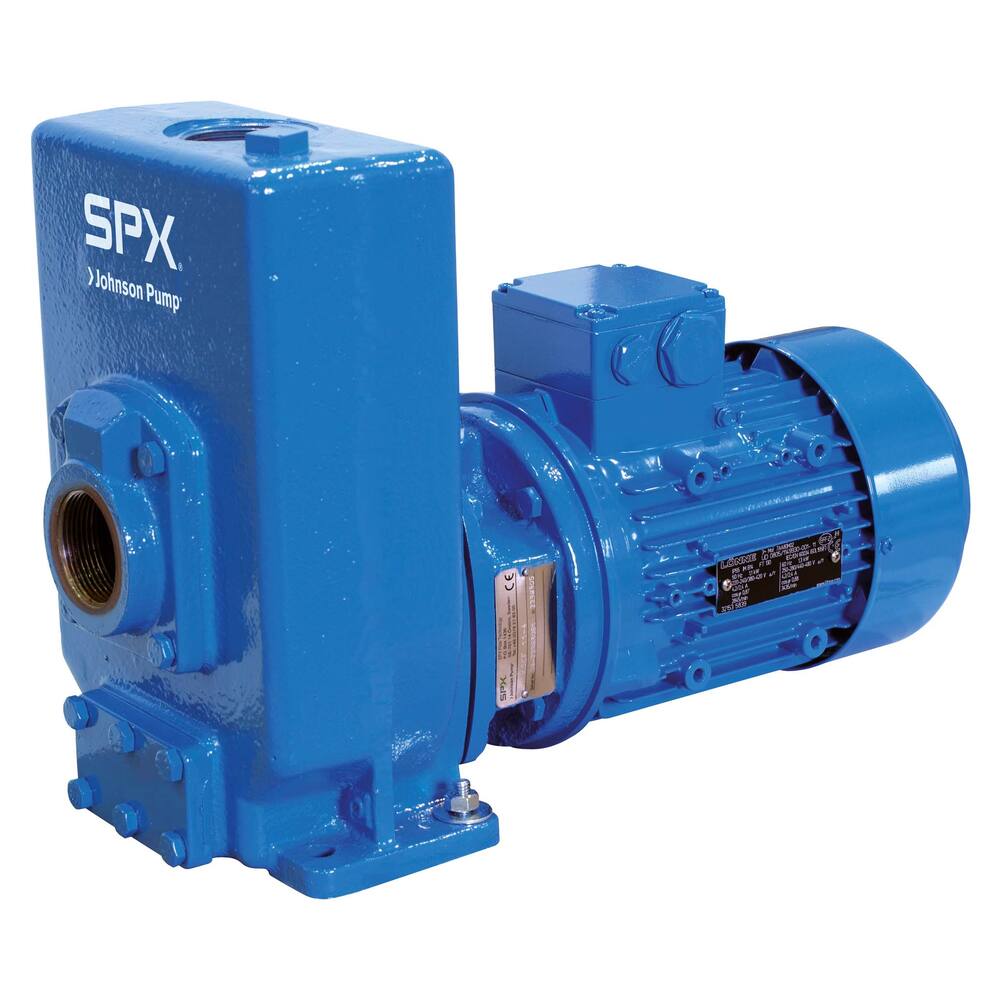

Stork Pump KGEF 12-6 400 Volt
This reliable and robust self-priming centrifugal pump is designed to handle dirty water efficiently. Ideal for various applications including bilge pumping, deck washing, dewatering, sprinkling, and fire extinguishing.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller or closed impeller
- Motor type: short circuit motor 400 volt
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron (bronze)*
- Material pump housing: cast iron (bronze)*
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil and fuel oil (max temperature +95°C)
- Performance:
- 10 metres head: 50,000 litres per hour
- 15 metres head: 32,000 litres per hour
- 20 metres head: 12,000 litres per hour
- Impeller type: open cast iron impeller
- Connections: 2.1/2" internal thread
- Dimensions (LxWxH): 588 x 225 x 360 mm
- Weight: 75 kg
- Amperage: 6.3 A+
- Shaft power: 3.0 kW, 4 hp, 2850 rpm
- Product code: 92.05.126
- Suction head: 8.1 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 20 mm
- Max discharge head: 23.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Free flow: 50,000 L/hour
- Capacity at 5 meter: 50,000 L/hour
- Available on request: bronze or complete Ni-resist materials
- Note: Always check amperage on motor's nameplate as small differences may occur between motors.
-
