The Stork KGE 18-4 is a right-hand rotation, self-priming centrifugal pump commonly used in maritime, industrial, and agricultural applications. It has a closed impeller, ceramic on carbon mechanical seal, and is constructed from cast iron, bronze, and chromed steel. It handles contaminated liquids up to 95°C, with capacities from 3,500 to 18,000 liters per hour depending on the head, and features 1.1/2" internal thread connections .
- Description
- Ask a Question
-

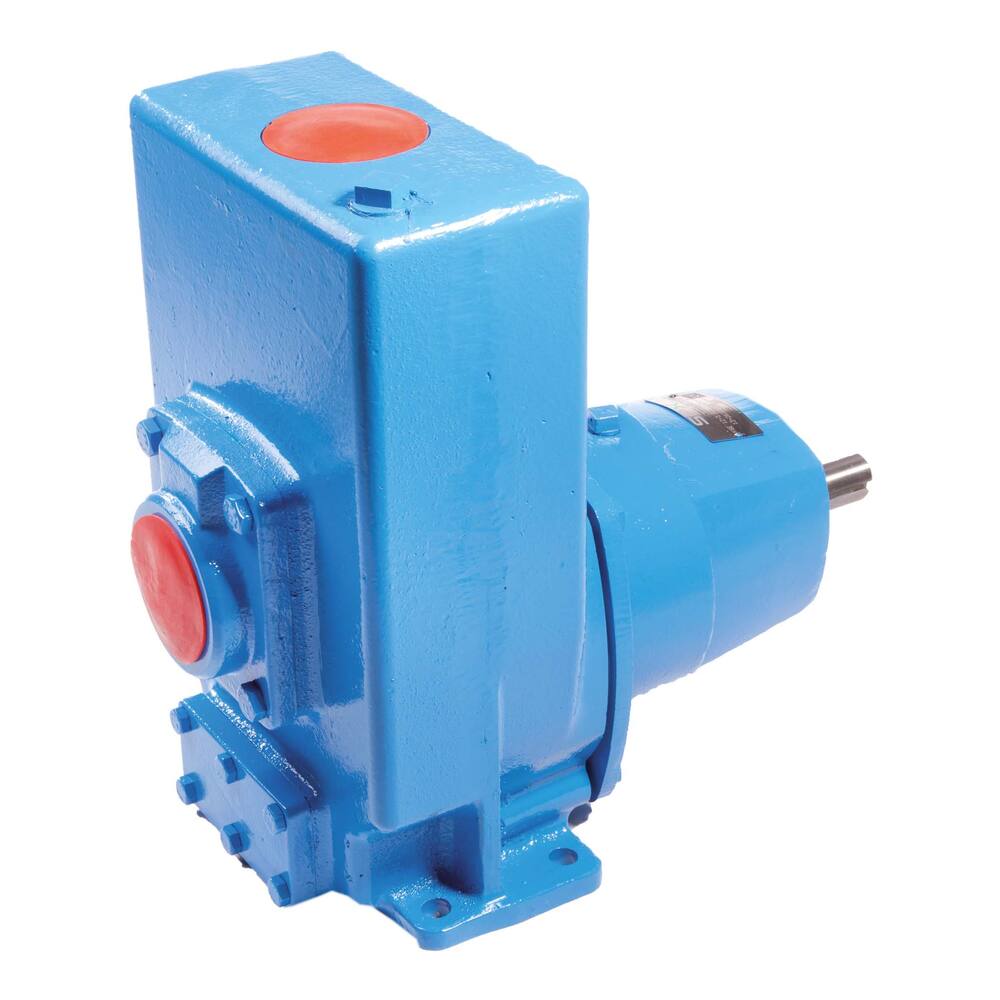

Stork KGE 18-4 - Right-Hand Rotation Pump
Commonly used in maritime settings for cleaning bilges and decks, this pump is also well suited for general industrial service and agricultural sprinkling applications.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance at various heads:
- 10 m head: 18,000 litres/hour
- 15 m head: 18,000 litres/hour
- 20 m head: 18,000 litres/hour
- 25 m head: 15,500 litres/hour
- 30 m head: 12,500 litres/hour
- 35 m head: 9,000 litres/hour
- 40 m head: 3,500 litres/hour
- Connections: 1.1/2" internal thread
- Dimensions (LxWxH): 490 x 265 x 370 mm
- Weight: 65 kg
- Shaft diameter: 24 mm
- Shaft power: 4.0 kW (5.5 hp) at 2900 rpm
- Speed range: 2800 to 3000 rpm
- Product code: 95.30.015
- Suction head: 6.5 m
- Pipe diameter pressure and suction: 1.1/2"
- Model: Clockwise
- Pump type classification: Dry set-up, self-priming
- Medium: Water
- Particle size capacity: 7 mm
- Maximum discharge head: 40.5 m
- Free flow: 18,000 L/hour
- Capacity at 5 meters: 18,000 L/hour
-
