The Stork KGE 22-6 is a right-hand rotation, self-priming centrifugal pump commonly used in maritime settings for bilge and deck washing, as well as in industrial and agricultural sprinkling applications. It features a closed impeller made of cast iron or bronze, a ceramic on carbon mechanical shaft seal, and can handle contaminated liquids including seawater and fuel oils up to 95°C. The pump delivers flow rates from 59,000 litres per hour at 10 meters head down to 18,000 litres per hour at 55 meters head, with a maximum discharge head of 60 meters. It has a 2.5-inch internal thread connection, weighs 110 kg, and operates at speeds between 2800 and 3000 rpm with a shaft power of 11 kW (15 hp).
- Description
- Ask a Question
-

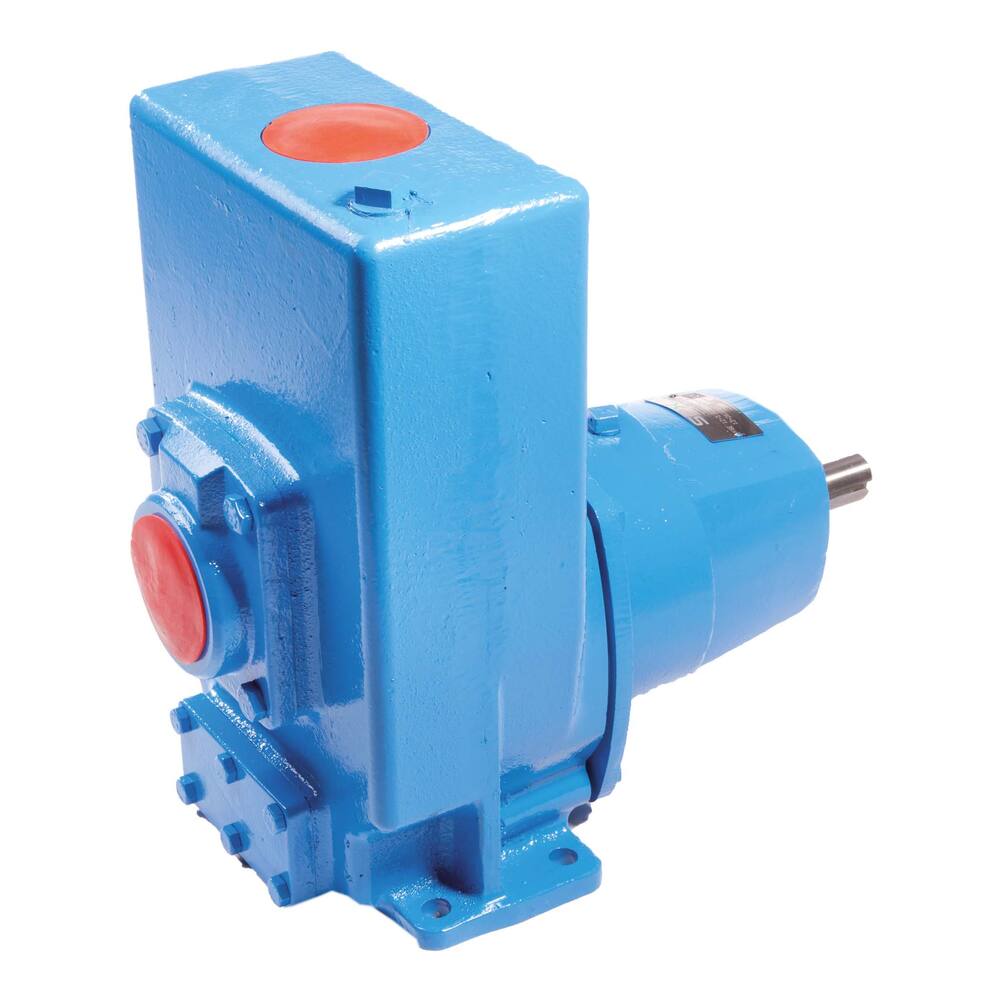

Stork KGE 22-6 - Right-Hand Rotation Pump
This pump is frequently utilized in maritime environments as a bilge and deck wash pump. It also suits general industrial service and agricultural sprinkling applications.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (on request)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil and fuel oil (max temp +95°C)
- Performance:
- 10 to 30 metres head: 59,000 litres per hour
- 35 metres head: 55,000 litres per hour
- 40 metres head: 47,000 litres per hour
- 45 metres head: 37,500 litres per hour
- 50 metres head: 28,000 litres per hour
- 55 metres head: 18,000 litres per hour
- Connections: 2.1/2" internal thread
- Dimensions (lxwxh): 640 x 345 x 550 mm
- Weight: 110 kg
- Shaft diameter: 32 mm
- Shaft power: 11 kW, 15 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.017
- Suction head: 6.4 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 2.1/2"
- Model: Clockwise
- Pump type: Dry set-up pump: self-priming
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 60.0 m
- Free flow (L/Hour): 59,000
- Capacity at 5 meter (L/hour): 59,000
-
