The Stork KGE 16-3 is a right-hand rotation, self-priming centrifugal pump primarily used in shipping for bilge and deck washing, as well as industrial and agricultural applications. It has a closed impeller, ceramic on carbon mechanical seal, and is made from cast iron, bronze, and chromed steel. It handles contaminated liquids up to 95°C, with capacities between 5,000 and 15,500 liters per hour depending on the head, and uses 1.1/4" internal thread connections .
- Description
- Ask a Question
-

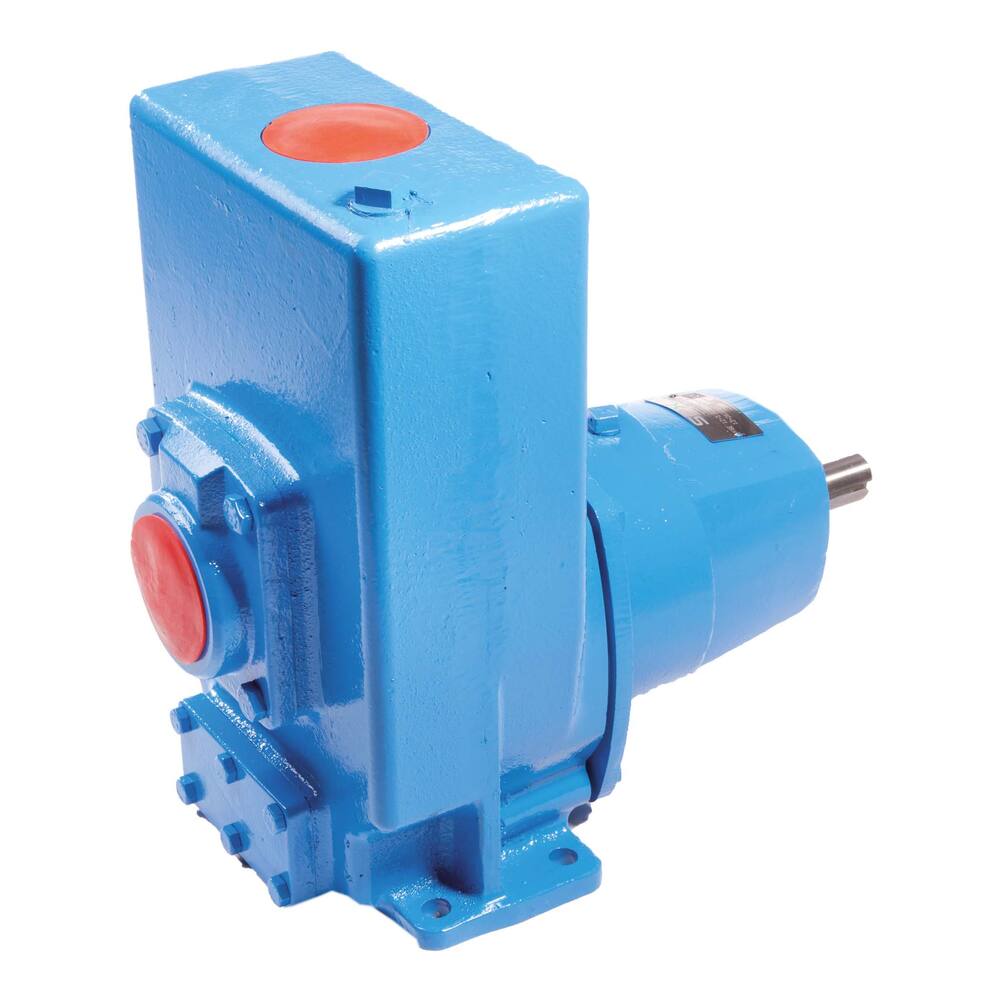

Stork KGE 16-3 - Right-Hand Rotation Pump
This pump is predominantly used in shipping as a bilge and deck wash pump and is also ideal for general industrial service or agricultural sprinkling.
- Type: KGE
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron or bronze (available on request, also completely Ni-Resist)
- Material: bronze for 29Nb 15
- Material pump housing: cast iron or bronze (available on request, also completely Ni-Resist)
- Material pump shaft: chromed steel
- Suitable liquids: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (maximum temperature +95°C)
- Capacity at 10 metres head: 15,500 litres per hour
- Capacity at 15 metres head: 14,500 litres per hour
- Capacity at 20 metres head: 11,000 litres per hour
- Capacity at 25 metres head: 8,000 litres per hour
- Capacity at 30 metres head: 5,000 litres per hour
- Connections: 1.1/4" internal thread
- Dimensions (LxWxH): 372 x 225 x 280 mm
- Weight: 26 kg
- Shaft diameter: 24 mm
- Shaft power: 2.2 kW, 3 hp at 2900 rpm
- Speed range: 2800 through 3000 rpm
- Product code: 95.30.013
- Suction head: 8.5 m
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 6 mm
- Max discharge head: 34.0 m
- Free flow: 15,500 L/hour
- Capacity at 5 metres: 15,500 L/hour
-
