ID
1317172
$ 1,093.41
1-2 weeks delivery time
-
+
The Tellarini Jet Pump-24DC 24V is a self-priming centrifugal pump with a jet system made entirely of stainless steel, ideal for sanitary drinking water systems on ships and yachts. It features a closed Noryl impeller, brush motor, and mechanical shaft seal, delivering up to 3,700 liters per hour free flow at 24 V with a maximum discharge head of 36 meters and a suction head of 8 meters.
- Description
- Ask a Question
-

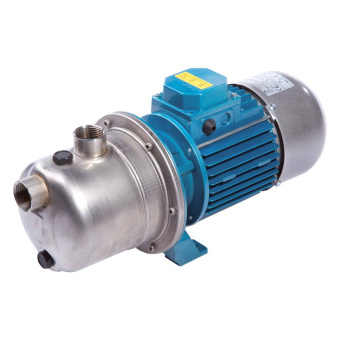

Tellarini Jet Pump-24DC 24V
This self-priming centrifugal pump with jet system is made entirely of stainless steel, ideal for sanitary drinking water systems on ships and yachts. It is also available as a complete pressurized water system. The pump features a closed impeller and a brush motor without built-in fuse.
- Colour: blue and stainless steel
- Pump type: self-priming centrifugal with jet system
- Impeller: closed impeller made of Noryl
- Motor: brush motor
- Shaft seal: mechanical seal (ceramic/carbon/NBR)
- Materials: pump housing and shaft of stainless steel 304, impeller chamber made of Noryl
- Liquids: clean water
- Performance at various heads:
- 10 m head: 3,360 L/hour
- 15 m head: 2,520 L/hour
- 20 m head: 1,800 L/hour
- 25 m head: 1,800 L/hour
- 30 m head: 60 L/hour
- Connections: 1" internal thread
- Dimensions (LxWxH): 409 x 170 x 190 mm
- Weight: 7.9 kg
- Amperage: 19 A
- Shaft power: 0.525 kW (0.7 hp) at 2700 rpm
- Used on Jet pump pressurized water system (97.27.010)
- Product code: 93.28.060
- Suction head: 8.0 m
- Pipe diameters: 1" pressure and suction
- Discharge head max: 36.0 m
- Voltage: 24 V DC | Protection class: IP68
- Particle size: up to 2 mm
- Free flow: 3,700 L/hour | Capacity at 5 meters: 3,600 L/hour
-
